3.5.6

Onboard Devices Configuration

Scroll down to display the following items:

Version 2.00.1201. Copyright (C) 2010 American Megatrends, Inc.

Intel LAN Controller

Enabled

Intel PXE OPROM

Disabled

> Serial Port Configuration

Main

Ai Tweaker

Advanced

Monitor

Boot

Tool

Exit

Version 2.00.1201. Copyright (C) 2010 American Megatrends, Inc.

Enabled/Disabled Azalia HD Audio

→←

: Select Screen

↑↓

: Select Item

Enter: Select

+/-: Change Opt.

F1: General Help

F2: Previous Values

F5: Optimized Defaults

F10: Save ESC: Exit

Back

Advanced\

Onboard Devices Configuration >

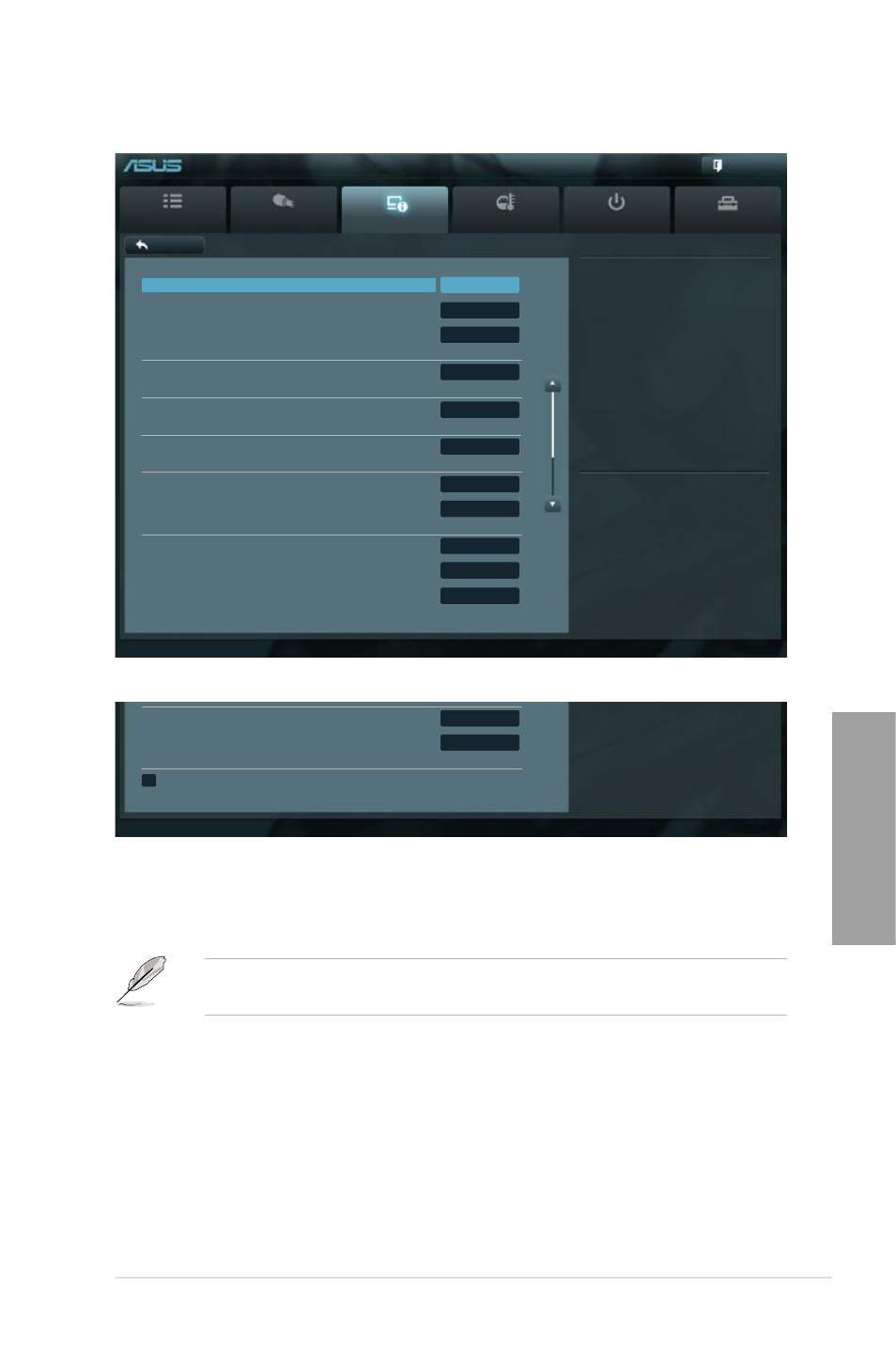

EFI BIOS Utility - Advanced Mode

HD Audio Controller

Enabled

Front Panel Type

HD

SPDIF Out Type

SPDIF

Renesas USB 3.0 Controller

Enabled

VIA 1394 Controller

Enabled

PCI Express x1_2 Slot Configuration [U3 Mode]

U3 Mode

Marvell Storage Controller

AHCI Mode

Marvell Storage OPROM

Enabled

JMB Storage Controller

Enabled

JMB Storage OPROM

Enabled

Display OptionRom in POST

Enabled

HD Audio Controller [Enabled]

[Enabled]

Enables the High Definition Audio Controller.

[Disabled]

Disables the controller.

The following two items appear only when you set the HD Audio Controller item to

[Enabled].

Front Panel Type [HD]

Allows you to set the front panel audio connector (AAFP) mode to legacy AC’97 or high-

definition audio depending on the audio standard that the front panel audio module supports.
[HD]

Sets the front panel audio connector (AAFP) mode to high definition audio.

[AC97]

Sets the front panel audio connector (AAFP) mode to legacy AC’97
