2-28 Chapter 2: Hardware information

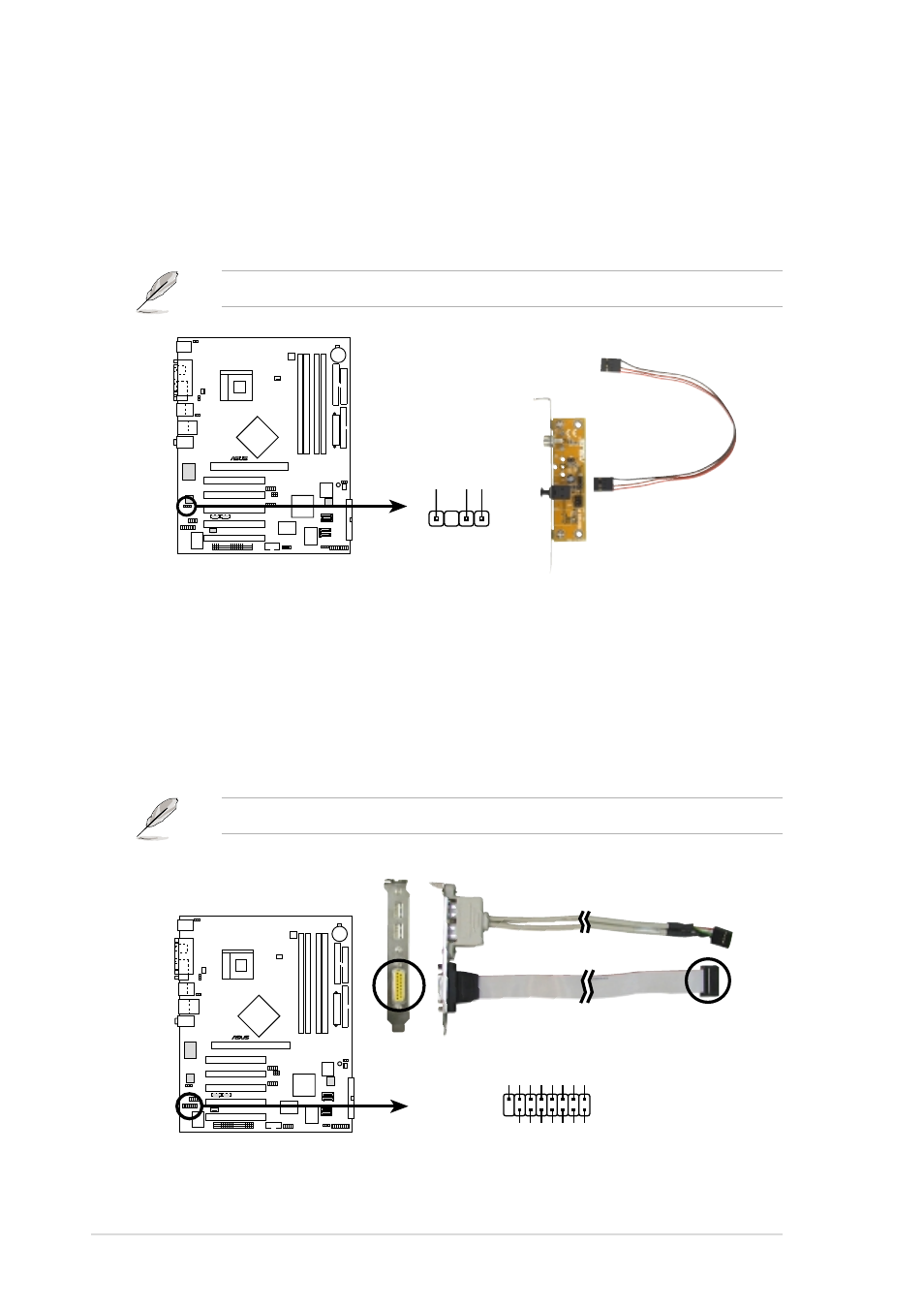

11. Digital audio connector (4-1 pin SPDIF_OUT)
In addition to the S/PDIF Out port on the rear panel, an S/PDIF Out
connector is available for an S/PDIF audio module. Connect one end
of the S/PDIF audio cable this connector and the other end to the
S/PDIF module.
12. GAME/MIDI connector (16-1 pin GAME)
This connector supports an optional GAME/MIDI module. Connect the
GAME/MIDI cable to this connector. The GAME/MIDI port on the
module connects a joystick or a game pad for playing games, and MIDI
devices for playing or editing audio files.
The S/PDIF module is purchased separately.
P4C800
®
P4C800 Digital Audio Connector
+5V SPDIFOUT GND
SPDIF_OUT
P4C800
®
P4C800 Game Connector
GAME
+5V
+5V
J2B1 J2CX
MIDI_OUT
J2CY J2B2
MIDI_IN
J1B1 J1CX GND GND J1CY J1B2 +5V
The USB 2.0/GAME module is purchased separately.
