Connecting Peripheral Equipment

Caution

• Be sure to turn off the main power switch and disconnect

the plug from the power outlet before connecting/

disconnecting cables. Also, read the manual of the

equipment to be connected.

• Be careful not to confuse the input terminal with the output

terminal when connecting cables. Accidentally reversing

cables connected to the input and output terminals may

cause malfunctions and the other problems.

• Do not use any cable that has a damaged or deformed

terminal. Using such a cable may cause malfunctions.

• Images may not be displayed properly depending on the

computer (video cards), cables, or peripheral devices to be

connected.

TIPS

• The audio input terminal to be used is factory-set as follow.

Input mode

Audio input terminal

(Factory setting)

DisplayPort

DisplayPort input terminal

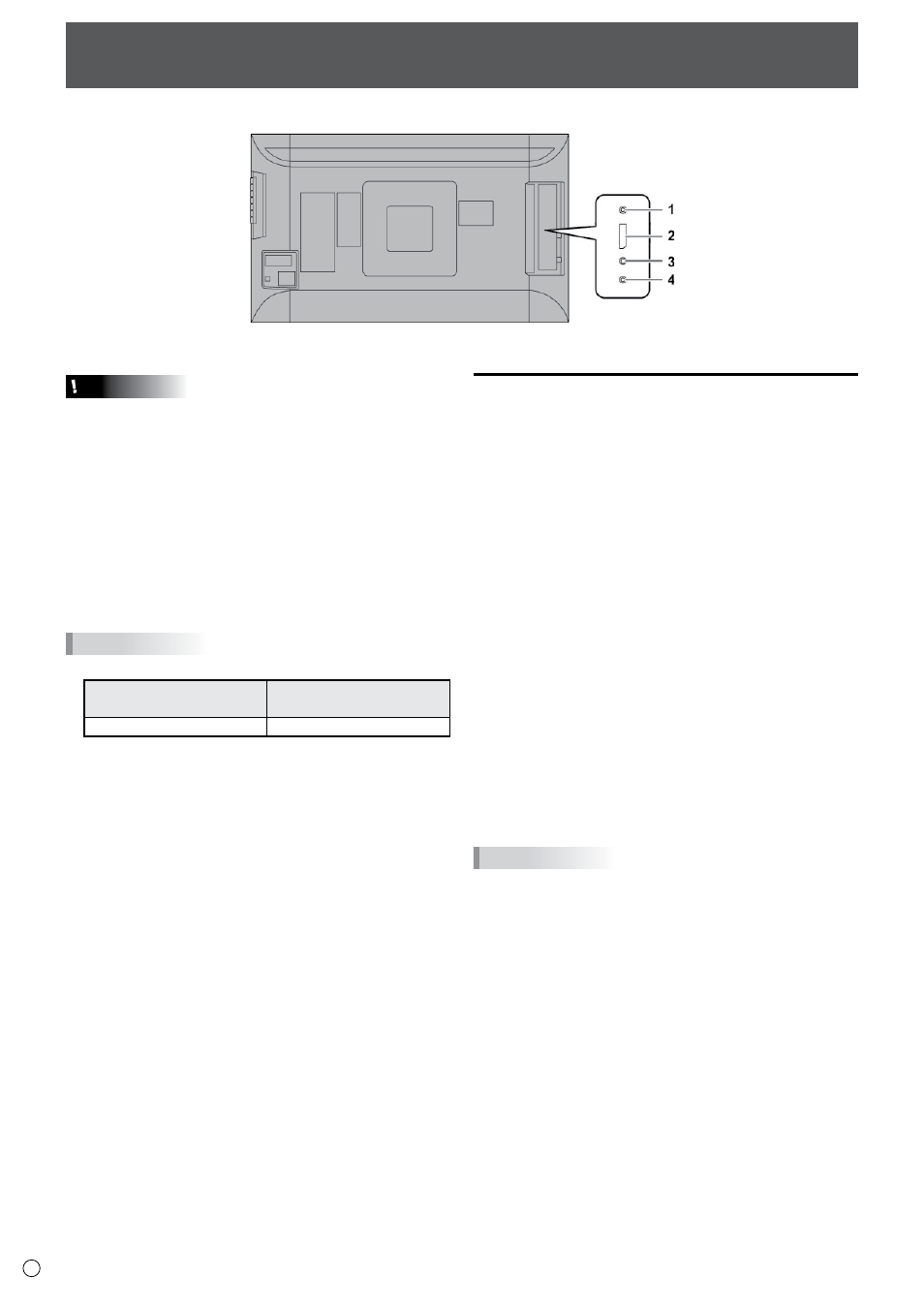

Connection with a PC or AV equipment

1. RS-232C input terminal

• The monitor can be connected to a PC using the RS-

232C conversion cable (supplied) and a commercially

available RS-232 straight cable to control the monitor

from the PC.

2. DisplayPort input terminal

• Use the supplied DisplayPort cable.

• Select the audio input terminal to be used in DisplayPort

of AUDIO SELECT on the SETUP menu.

When DisplayPort is selected, connection to the audio

input terminal is unnecessary.

* Use the supplied cable.

* If you need to extend the cable, consult your dealer.

3. Audio input terminal

• Use a commercially available audio cable (mini stereo

jack) without resistance.

• Set the audio input terminal to be used in AUDIO SELECT

on the SETUP menu.

4. Headphone terminal

• Use commercially available headphones (mini stereo

jack).

• The volume can be adjusted using the volume adjustment.

TIPS

• The length of the signal cables or surrounding environment

may affect the image quality.

• Video output is disabled in the following cases:

When the power is turned off

When the monitor is in input signal waiting mode
