Asus P5NSLI User Manual
Page 50
1-36
Chapter 1: Product introduction

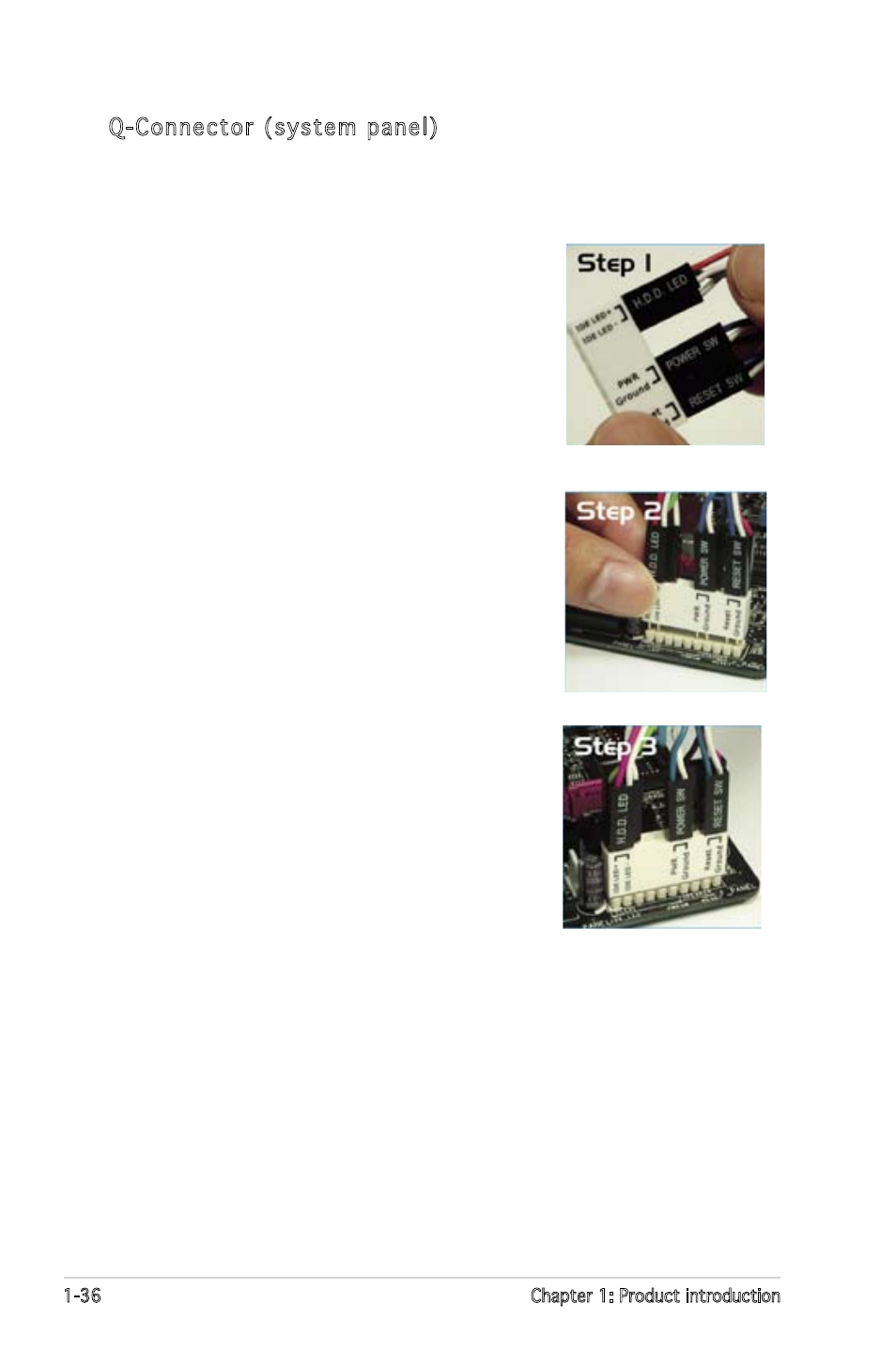

Q-Connector (system panel)
You can use ASUS Q-Connector to connect / disconnect chassis front
panel cables by only a few steps. Directions below shows how to
install ASUS Q-Connector.
Step2.
Properly install the ASUS Q-Connector to
the System panel connctor.
Step1.
Connect correct front panel to ASUS
Q-Connector first. You can refer to the
marking on Q-Connector itself to know
the detail pin definition.
Step3.
Front panel functions are enabled.
