1. CPU, chassis, and power fan connectors
(4-pin CPU_FAN; 4-pin CHA_FAN1; 3-pin CHA_FAN2; 3-pin PWR_FAN)
Connect the fan cables to the fan connectors on the motherboard, ensuring that the
black wire of each cable matches the ground pin of the connector.
• The CPU_FAN connector supports the CPU fan of maximum 2A (24 W) fan power.
• Only the 4-pin CPU fan and chassis fan support the ASUS Fan Xpert feature.
• If you install two VGA cards, we recommend that you plug the rear chassis fan cable to
the motherboard connector labeled CHA_FAN 1/2 for better thermal environment.
DO NOT forget to connect the fan cables to the fan connectors. Insufficient air flow inside
the system may damage the motherboard components. These are not jumpers! DO NOT
place jumper caps on the fan connectors.
CHA_FAN1
CHA_FAN2
CPU_FAN
CPU
FA
N PWM
CPU
FA
N IN
CPU F
AN PWR
GND
CPU
FA
N PWM
CPU
FA
N IN
CPU
FA
N PWR
GND
M4A88T-V EVO/USB3

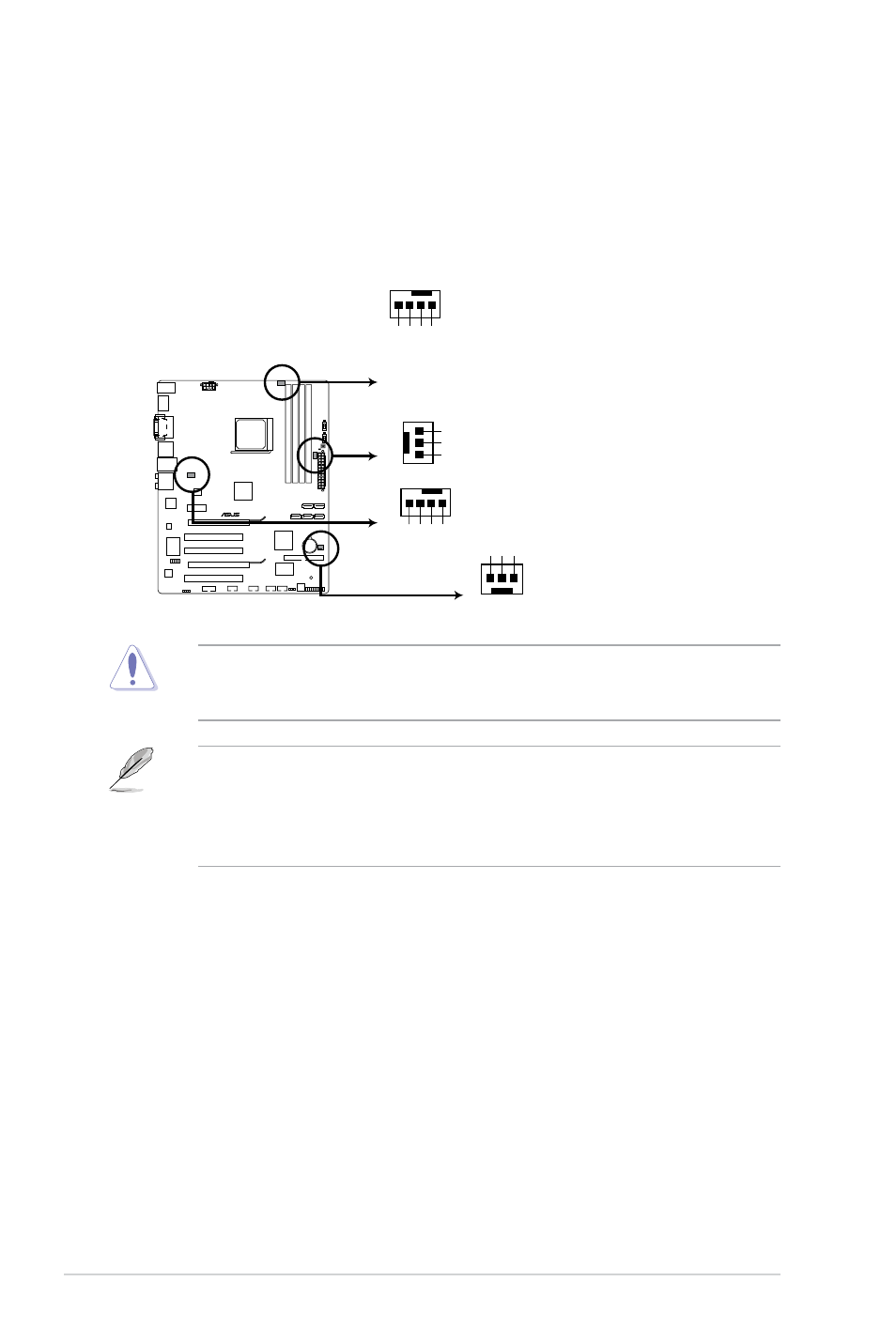

M4A88T-V EVO/USB3 fan connectors
GND
+12V
Rotation
PWR_FAN
GN
D
+12V Rotation
1.10.2 Internal connectors
Chapter 1: Product introduction 1-24
