6. USB 2.0 ports 1 and 2. These two 4-pin Universal Serial Bus (USB) ports connect to
USB 2.0 devices.
7. USB 2.0 ports 3 and 4. These two 4-pin Universal Serial Bus (USB) ports connect to
USB 2.0 devices.
8. Video Graphics Adapter (VGA) port. This 15-pin port is for a VGA monitor or other
VGA-compatible devices.
9. DVI-D Out port. This port is for any DVI-D compatible device and is HDCP compliant
allowing playback of HD DVD, Blu-Ray, and other protected content.
10. PS/2 Keyboard port (purple). This port is for a PS/2 keyboard.
• We recommend that you connect a high-definition front panel audio module to this
connector to avail of the motherboard high-definition audio capability.
• If you want to connect a high definition front panel audio module to this connector, set
the Front Panel Select item in the BIOS to [HD Audio]. See section 2.4.4 Onboard
Device Configuration for details.
• The front panel audio I/O module is purchased separately.
1.10.2 Internal connectors

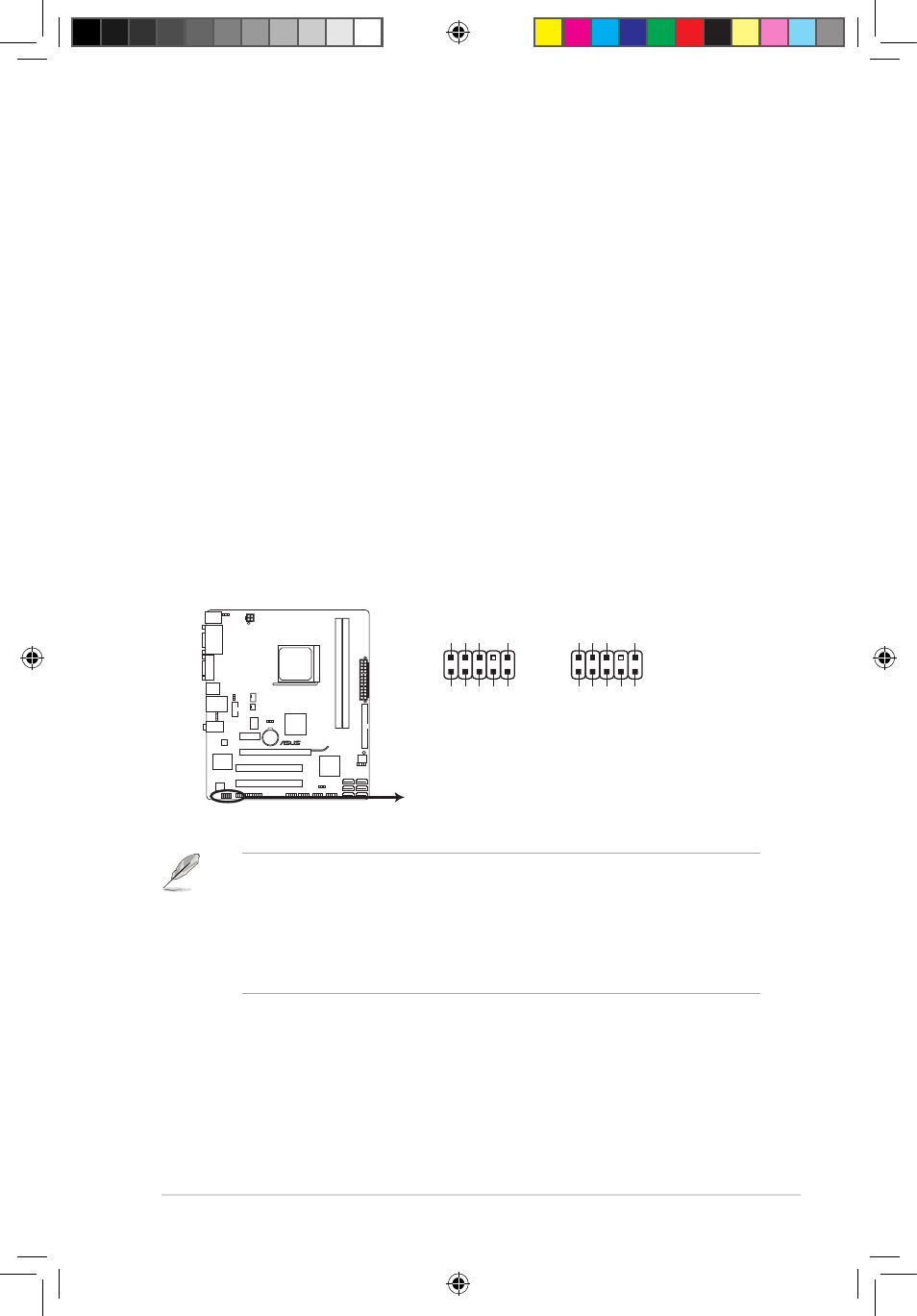

1. Front panel audio connector (10-1 pin AAFP)
This connector is for a chassis-mounted front panel audio I/O module that supports
either High Definition Audio or AC`97 audio standard. Connect one end of the front
panel audio I/O module cable to this connector.
M4A78LT-M LE
M4A78LT-M LE Analog franel connector
AAFP
PIN 1
GN
D
PRESENCE# SENSE1_RETUR SENSE2_RETUR
PORT1
L
PORT1
R
PORT2
R
SENSE_SEN
D
PORT2
L
HD-audio-compliant
pin definition
PIN 1
AGND NC NC NC
MIC
2
MICPWR
Line out_
R
NC
Line out_
L
Legacy AC’97
compliant definition
ASUS M4A78LT-M LE 1-21
