1.10 Connectors

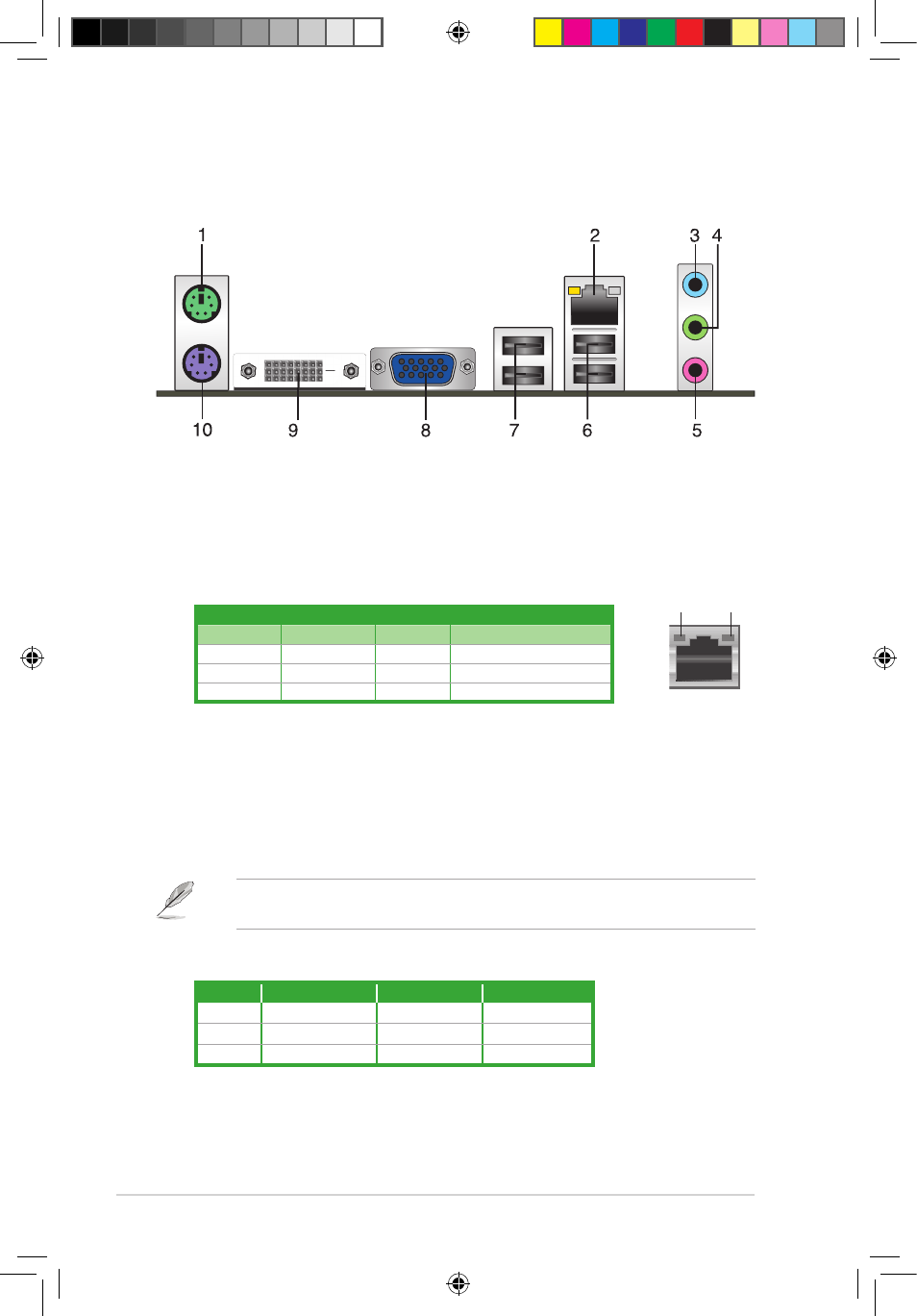

1.10.1 Rear panel ports
1. PS/2 Mouse port (green). This port is for a PS/2 mouse.
2. LAN (RJ-45) port. This port allows Gigabit connection to a Local Area Network (LAN)
through a network hub.
LAN port LED indications
Activity/Link LED Speed LED
Status
Description Status Description
OFF No link OFF 10Mbps connection
ORANGE Linked ORANGE 100Mbps connection
BLINKING Data activity GREEN 1Gbps connection
LAN port
SPEED
LED
ACT/LINK
LED
3. Line In port (light blue). This port connects to the tape, CD, DVD player, or other
audio sources.
4. Line Out port (lime). This port connects to a headphone or a speaker. In 4-channel
and 6-channel configurations, the function of this port becomes Front Speaker Out.
5. Microphone port (pink). This port connects to a microphone.
Refer to the audio configuration table below for the function of the audio ports in the 2, 4, or
6-channel configuration.
Audio 2, 4, 6-channel configuration
Port Headset 2-channel 4-channel 6-channel
Light Blue Line In Rear Speaker Out Rear Speaker Out
Lime Line Out Front Speaker Out Front Speaker Out
Pink Mic In Mic In Bass/Center
Chapter 1: Product introduction 1-20
