1-28 Chapter 1: Product introduction
8. Front panel audio connector (10-1 pin AAFP)
This connector is for a chassis-mounted front panel audio I / O module that
supports either High Definition Audio or AC`97 audio standard. Connect one
end of the front panel audio I/O module cable to this connector.
M2N-XE

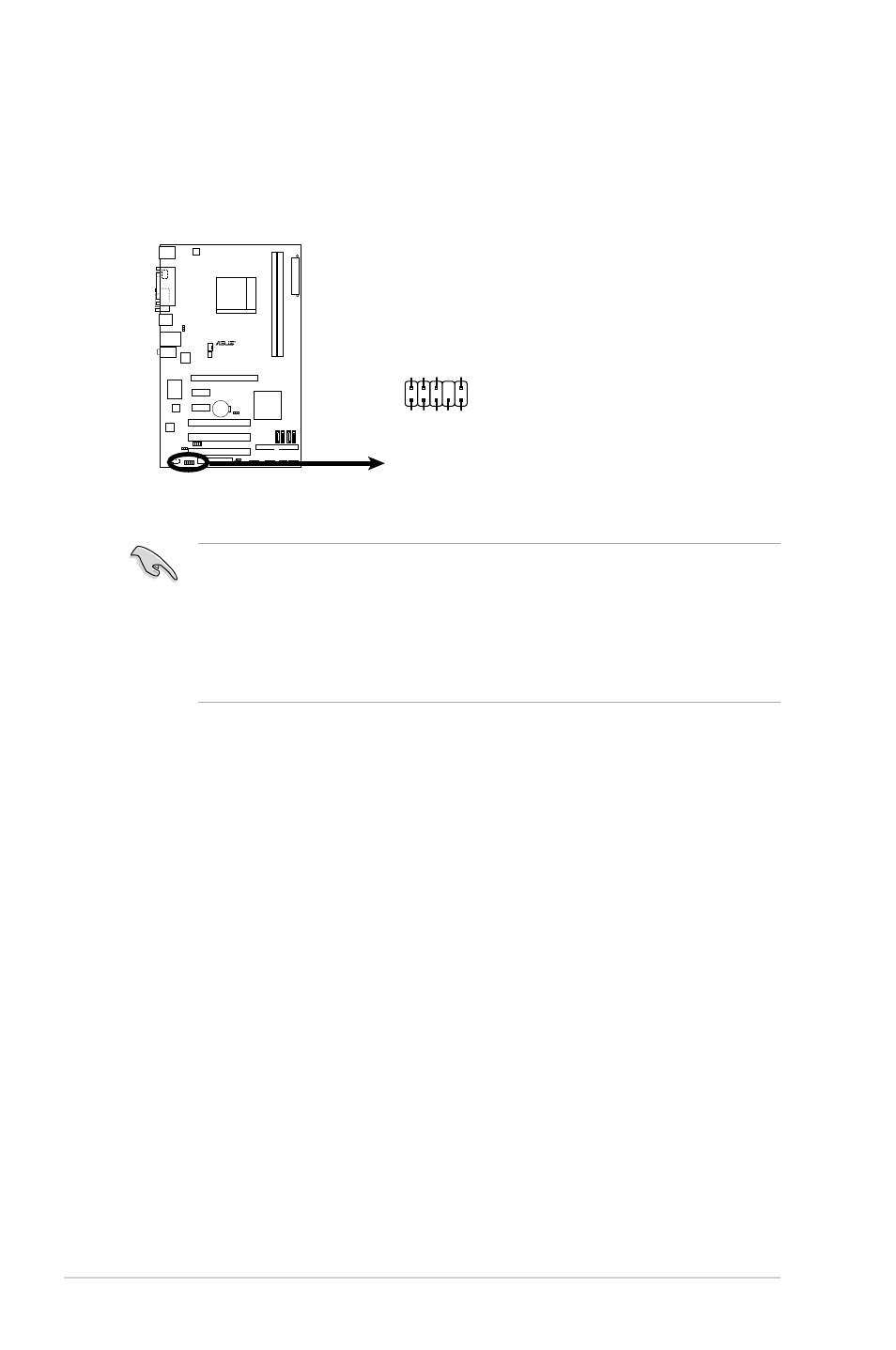

M2N-XE Azalia Analog Front Panel Connector
HP_HD
MIC2_L
HP_R HP_L
MIC2_J
D
Jack_Sens
e
MIC2_R
PRESENSE# AGND
AAFP
• We recommend that you connect a high-definition front panel audio module
to this connector to avail of the motherboard high-definition audio capability.
• By default, this connector is set to HD Audio. If you want to connect a High
Definition front panel audio module to this connector, set the Front Panel
Select item in the BIOS to [HD Audio]. See section “2.4.3 Chipset” for
details.
