Chapter 1: Product introduction

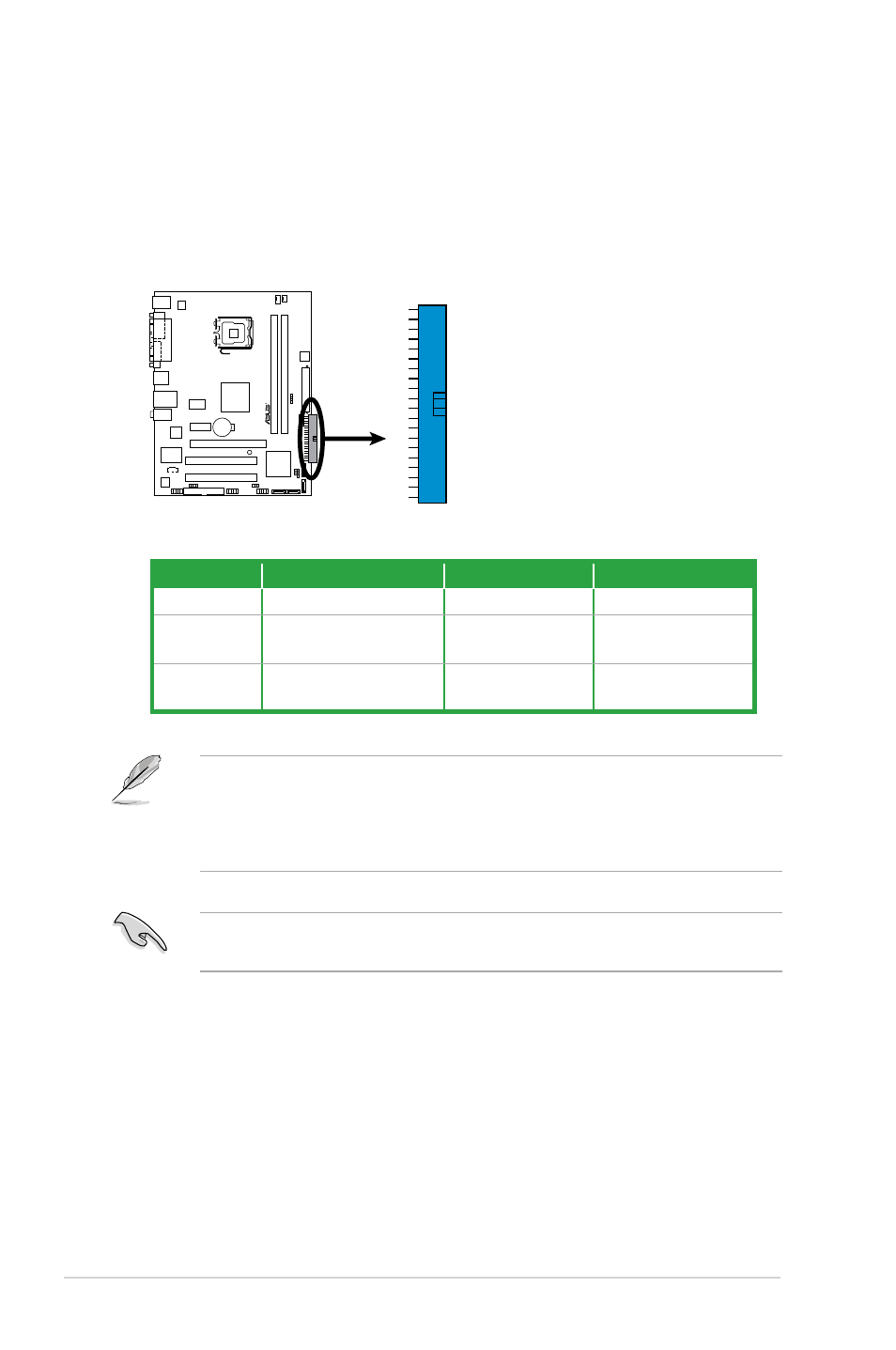

2. IDE connectors (40-1 pin PRI_IDE)

The onboard IDE connectors are for Ultra DMA 100/66/33 signal cables.

There are three connectors on each Ultra DMA 100/66/33 signal cable:

blue, black, and gray. Connect the blue connector to the motherboard’s IDE

connector, then select one of the following modes to configure your device(s).

• Pin 20 on the IDE connector is removed to match the covered hole on the

Ultra DMA cable connector. This prevents incorrect insertion when you

connect the IDE cable.

• Use the 80-conductor IDE cable for Ultra DMA 100/66/33 IDE devices.

If any device jumper is set as “Cable-Select,” make sure all other device

jumpers have the same setting.

R

P5GC-MX/GBL

P5GC-MX/GBL

IDE Connector

PRI_ID

E

Drive jumper setting Mode of device(s) Cable connector

Single device Cable-Select or Master -

Black

Two devices Cable-Select

Master

Slave

Black

Gray

Master

Slave

Master

Slave

Black or gray
