1-26 Chapter 1: Product introduction
SPEED
LED
ACT/LINK
LED
LAN port
LAN port LED indications

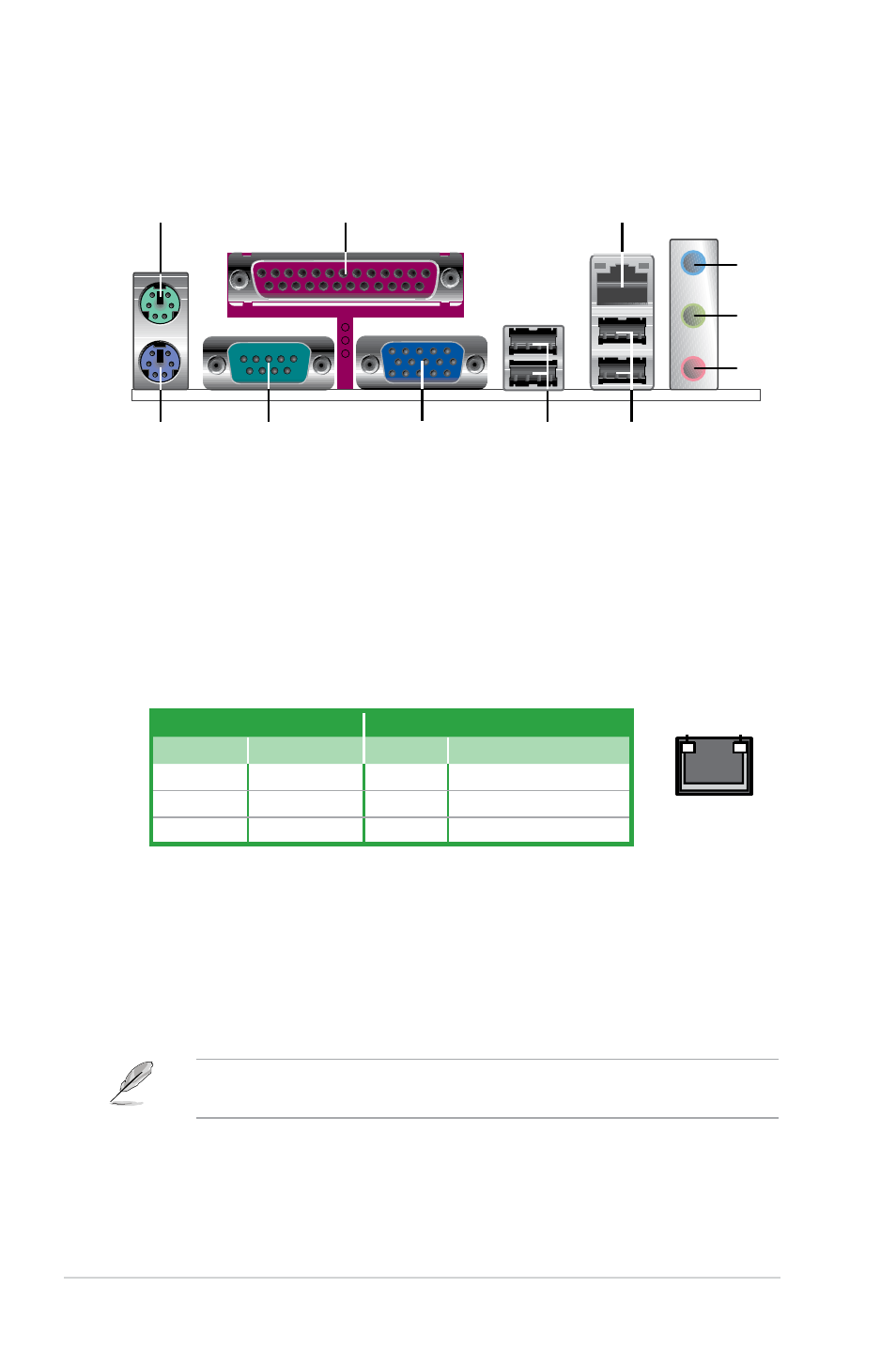

1.10 Connectors
1.10.1 Rear panel connectors
Refer to the audio configuration table on the next page for the function of the
audio ports in 2, 4, or 6-channel configuration.
1. PS/2 mouse port (green). This port is for a PS/2 mouse.
2. Parallel port. This 25-pin port connects a parallel printer, a scanner, or other
devices.
3. LAN (RJ-45) port. This port allows Gigabit connection to a Local Area
Network (LAN) through a network hub. Refer to the table below for the LAN
port LED indications.
4. Line In port (light blue). This port connects the tape, CD, DVD player, or
other audio sources.
5. Line Out port (lime). This port connects a headphone or a speaker.
In 4-channel, and 6-channel configuration, the function of this port becomes
Front Speaker Out.
6. Microphone port (pink). This port connects a microphone.
1
11
4
5
6
7
2 3
8 10 9
ACT/LINK LED SPEED LED
Status Description Status Description
OFF No link OFF 10 Mbps connection
ORANGE Linked ORANGE 100 Mbps connection
BLINKING Data activity GREEN 1 Gbps connection
