1-13 Chapter 1: Product introduction

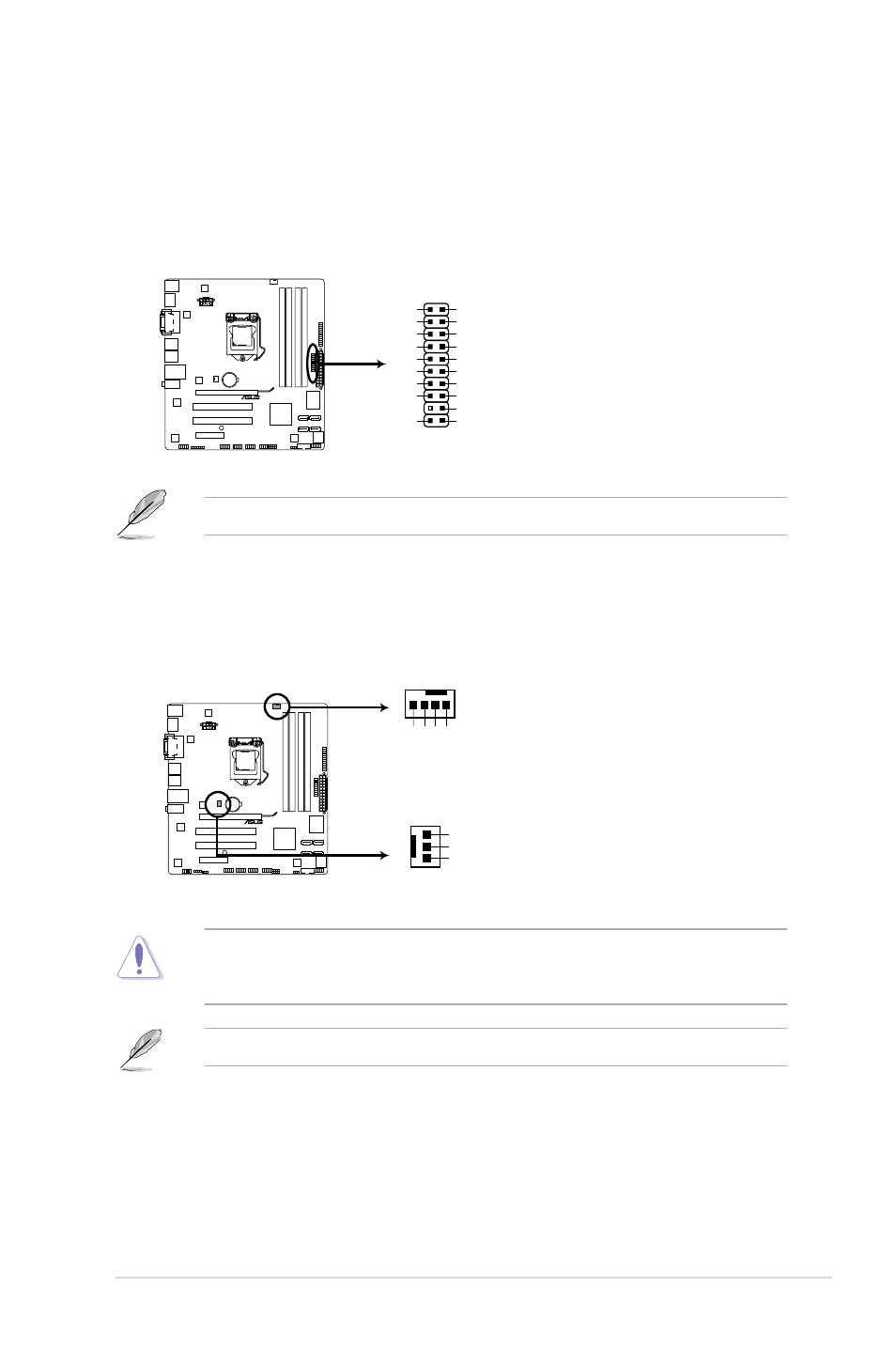

3. TPM connector (20-1 pin TPM)
This connector supports a Trusted Platform Module (TPM) system, which can
securely store keys, digital certificates, passwords, and data. A TPM system also
helps enhance network security, protects digital identities, and ensures platform
integrity.
The TPM module is purchased separately!
P8Q67-M DO/USB3
P8Q67-M DO/USB3 TPM Connector
TPM
PIN 1
3.3V
AD0
PWRDW#
NC
PCICLK
FRAME#
PCIRST#
AD3
GND
3.3VSB
AD1
AD2
SERIRQ#
CLKRUN#
GND
NC
GND
NC
NC
Do not forget to connect the fan cables to the fan connectors. Insufficient air flow inside the
system may damage the motherboard components. These are not jumpers! Do not place
jumper caps on the fan connectors!
4. CPU and chassis fan connectors (4-pin CPU_FAN, 3-pin CHA_FAN)
Connect the fan cables to the fan connectors on the motherboard, ensuring that the
black wire of each cable matches the ground pin of the connector.
The CPU_FAN connector supports a CPU fan of maximum 2A (24 W) fan power.
CPU_FAN
CPU
FA
N PWM
CPU
FA
N IN
CPU
FA
N PWR
GND
P8Q67-M DO/USB3
P8Q67-M DO/USB3 fan connectors
GND
+12V
Rotation
CHA_FAN
