ASUS P8B75-M LX PLUS 1-27
3. CPU and chassis fan connectors (4-pin CPU_FAN, 4-pin CHA_FAN)
Connect the fan cables to the fan connectors on the motherboard, ensuring that the
black wire of each cable matches the ground pin of the connector.
Do not forget to connect the fan cables to the fan connectors. Insufficient air flow inside
the system may damage the motherboard components. These are not jumpers! Do not
place jumper caps on the fan connectors! The CPU_FAN connector supports a CPU fan of
maximum 2A (24 W) fan power.
Only the 4-pin CPU fan supports the ASUS Fan Xpert feature.
CPU_FAN
CPU F
AN PWM
CPU F
AN IN
CPU F
AN PWR
GND
CHA_FAN1
CHA
F
AN PWM
CHA
F
AN IN
CHA
F
AN PWR
GND
P8B75-M LX PLUS

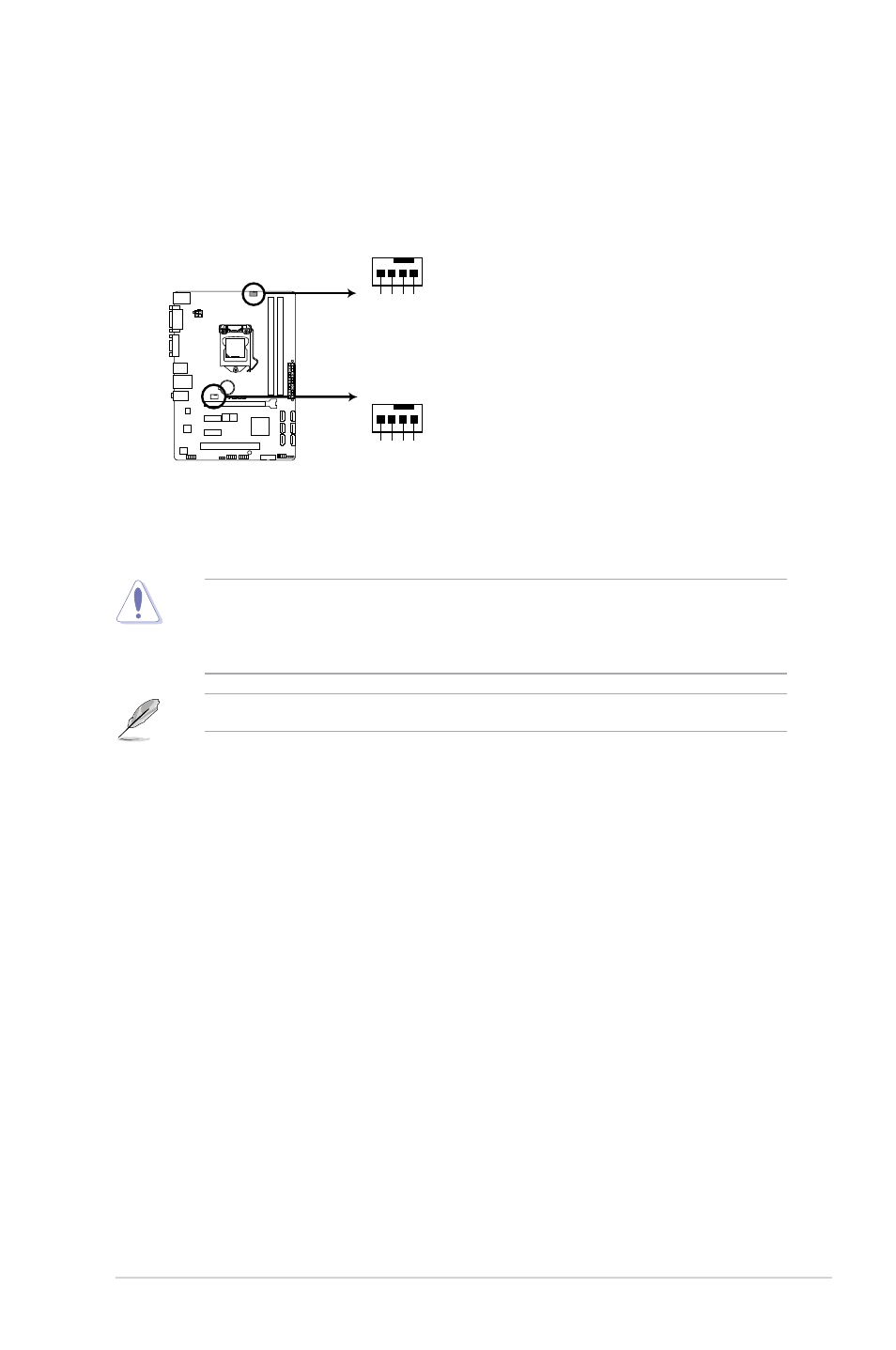

P8B75-M LX PLUS CPU fan connector
