1-16 Chapter 1: Product introduction

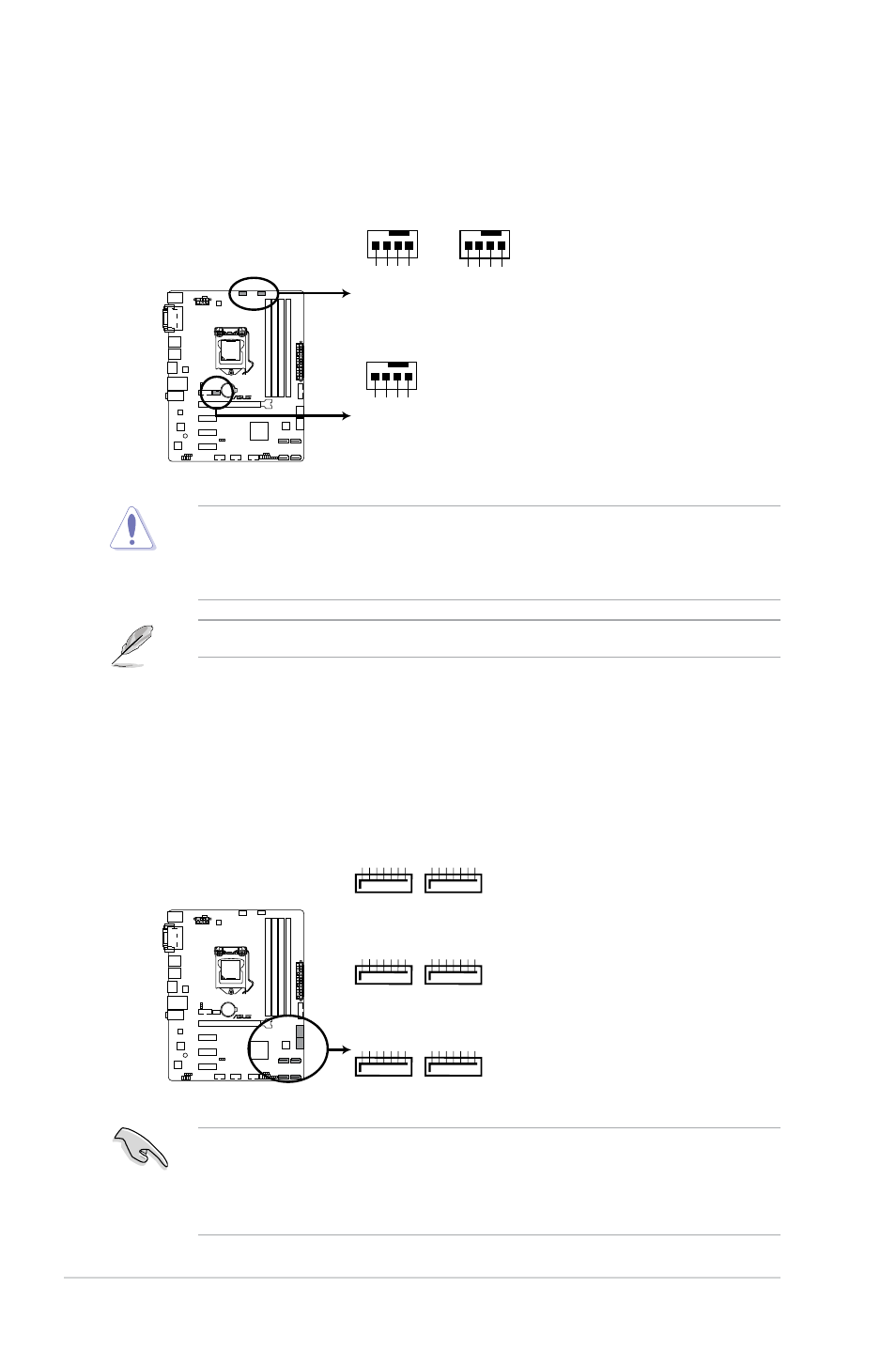

5. CPU and chassis fan connectors (4-pin CPU_FAN, 4-pin CHA_FAN1/2)
Connect the fan cables to the fan connectors on the motherboard, ensuring that the
black wire of each cable matches the ground pin of the connector.
Do not forget to connect the fan cables to the fan connectors. Insufficient air flow inside
the system may damage the motherboard components. These are not jumpers! Do not
place jumper caps on the fan connectors! The CPU_FAN connector supports a CPU fan of
maximum 2A (24 W) fan power.
Only the 4-pin CPU fan supports the ASUS Fan Xpert 2 feature.
CHA_FAN1
CHA
F
AN PWM
CHA
F
AN IN
CHA
F
AN PWR
GND
CPU_FAN
CPU F
AN PWM
CPU F
AN IN
CPU F
AN PWR
GND
CHA_FAN2
CHA
F
AN PWM
CHA
F
AN IN
CHA
F
AN PWR
GND
H87M-E
H87M-E Fan connectors
6. Intel ® H87 Serial ATA 6.0Gb/s connector (7-pin SATA6G_1~6 [yellow])
This connector connects to Serial ATA 6.0 Gb/s hard disk drives via Serial ATA 6.0 Gb/s
signal cables.
• You must install Windows. XP Service Pack 3 or later version before using Serial ATA
hard disk drives.
• When using hot-plug and NCQ, set the SATA Mode Selection item in the BIOS to [AHCI].
See section 2.6.3 SATA Configuration for details.
SATA6G_1
GND RSATA_RXP1 RSATA_RXN1 GND RSATA_TXN1 RSATA_TXP1 GND
SATA6G_2
GND RSATA_RXP2 RSATA_RXN2 GND RSATA_TXN2 RSATA_TXP2 GND
SATA6G_3
GND RSATA_RXP3 RSATA_RXN3 GND RSATA_TXN3 RSATA_TXP3 GND
SATA6G_4
GND RSATA_RXP4 RSATA_RXN4 GND RSATA_TXN4 RSATA_TXP4 GND
SATA6G_5
GND RSATA_RXP5 RSATA_RXN5 GND RSATA_TXN5 RSATA_TXP5 GND
SATA6G_6
GND RSATA_RXP6 RSATA_RXN6 GND RSATA_TXN6 RSATA_TXP6 GND
H87M-E
H87M-E SATA 6.0Gb/s connectors
