1-12 Chapter 1: Product introduction
1.7 Connectors

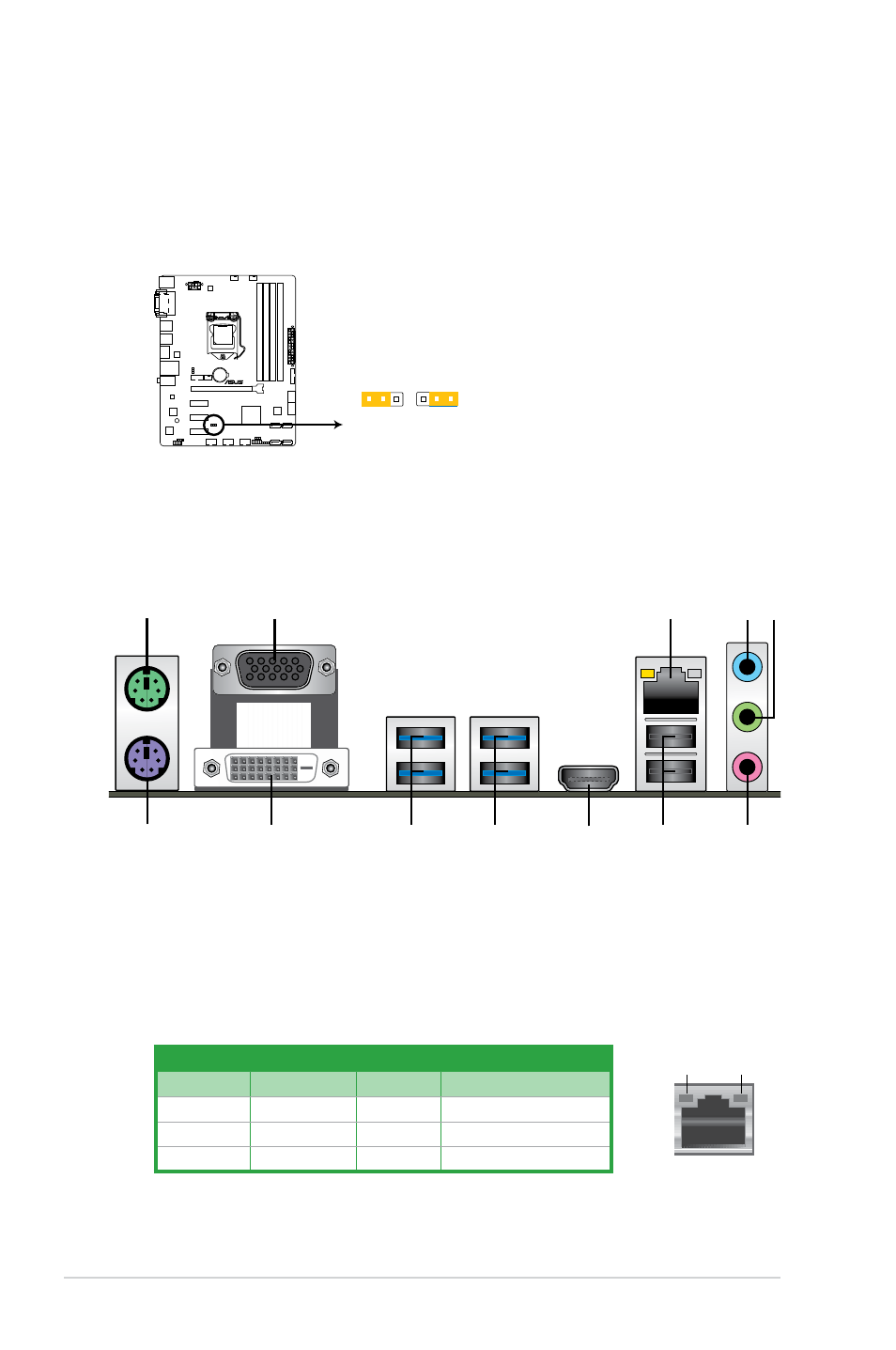

1.7.1 Rear panel connectors
LAN port
Speed
LED
Activity Link
LED Activity/Link LED Speed LED
Status Description Status Description
OFF No link OFF 10Mbps connection
ORANGE Linked ORANGE 100Mbps connection
BLINKING Data activity GREEN 1Gbps connection
3
10 9 7
2
11 8
4 5
6
1
12
1. PS/2 mouse port (green). This port is for a PS/2 mouse.
2. Video Graphics Adapter (VGA) port. This 15-pin port is for a VGA monitor or other
VGA-compatible devices.
3. LAN (RJ-45) port. This port allows Gigabit connection to a Local Area Network (LAN)
through a network hub.
LAN port LED indications
3. USB device wake-up (USBPWF)
This jumper allows you to enable or disable the USB device wake-up feature. When
you set this jumper to pins 2-3 (+5VSB), you can wake up the computer by pressing a
key on the USB keyboard or by clicking on the USB mouse. This feature requires an
ATX power supply that can supply at least 1A on the +5VSB lead, and a corresponding
setting in the BIOS.
2 1 2 3
+5V
(Default)
+5VSB
USBPWF
H87M-E
H87M-E USB device wake up
