1-18 Chapter 1: Product introduction
1.6.4 PCI Express x16 slot
This motherboard has a PCI Express 3.0/2.0 x16 slot (at 16x mode) that supports PCI
Express 2.0 x16 graphic cards complying with the PCI Express specifications.
Intel ® 3rd generation Core™ processors support PCIe 3.0.

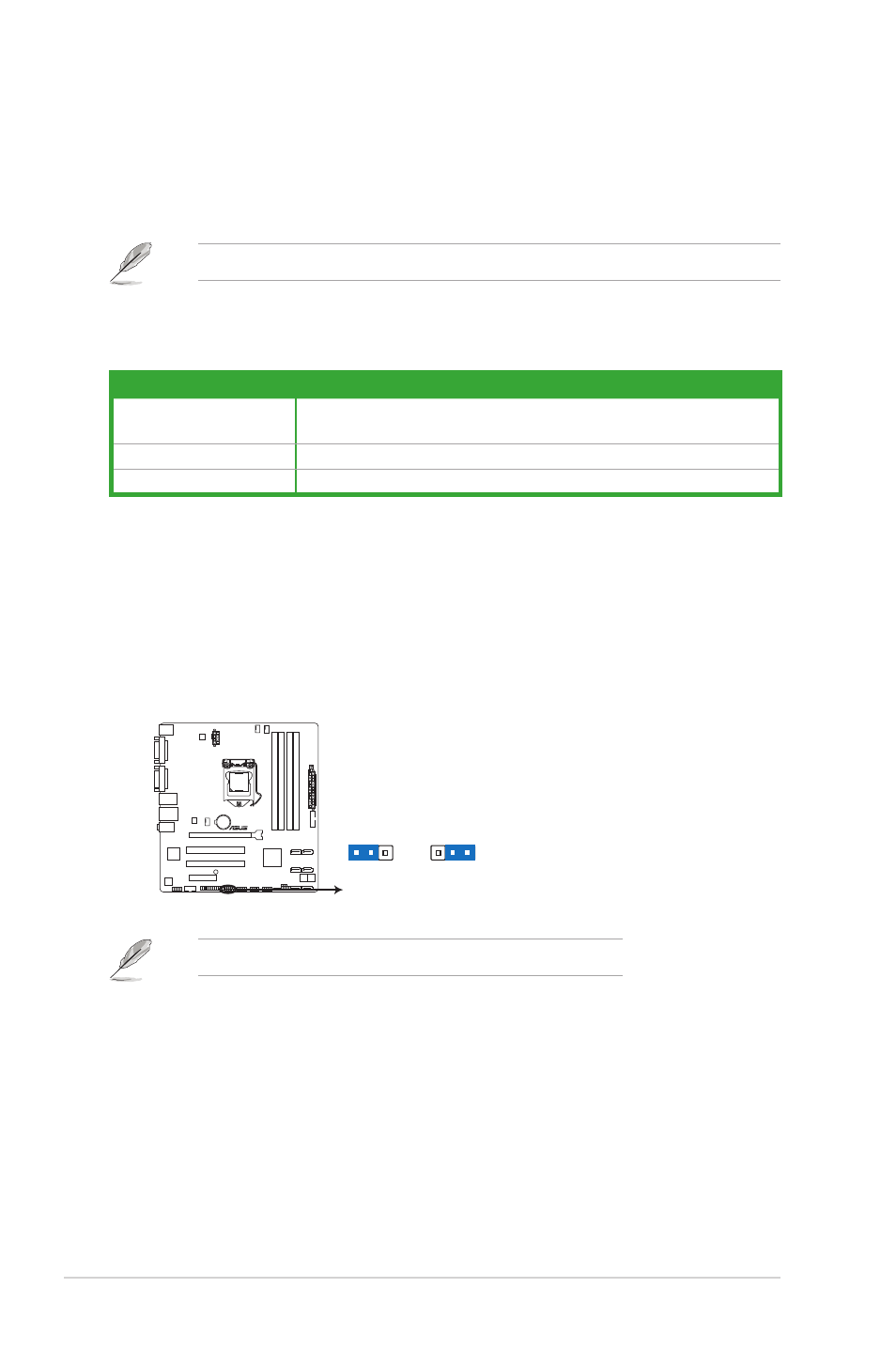

1. Intel ® ME jumper (3-pin DIS_ME)
This jumper allows you to enable or disable the Intel ® ME function. Set this jumper to
pins 1-2 to enable (default) the Intel ® ME function and to pins 2-3 to disable it.
Disable the Intel ® ME function only when you want to update it.
2 2 3
Normal
(Default)
Disable ME
DIS_ME
1
P8Q77-M2
P8Q77-M2 Intel ® ME jumper
1.7 Jumpers
IRQ assignments for this motherboard
A B C D E F G H
Intel PCH SATA controller
#0
– – – shared – – – –
Intel PCH SATA controller – – – shared – – – –
Realtek 8111F controller – shared – – – – – –
