Page 43

ASUS Book Size Barebone System
5-7
5.6
Expansion slots
The P4S8L motherboard has three (3) expansion slots. The following sub-sections
describe the slots and the expansion cards that they support.
5.6.1
Configuring an expansion card
After physically installing the expansion card, configure the card by adjusting the
software settings.
1.
Turn on the system and change the necessary BIOS settings, if any.
2.
Assign an IRQ to the card. Refer to the tables below.
3.
Install the software drivers for the expansion card.
5.5
System memory
The motherboard has two Double Data Rate (DDR) DIMM sockets that supports
up to 2GB non-ECC PC2700/2100 DDR.
A DDR DIMM has the same physical dimensions as an SDR DIMM, but it has a
184-pin footprint compared to the 168-pin of the SDR DIMM. Also, a DDR DIMM is
single notched while an SDR DIMM is double notched.

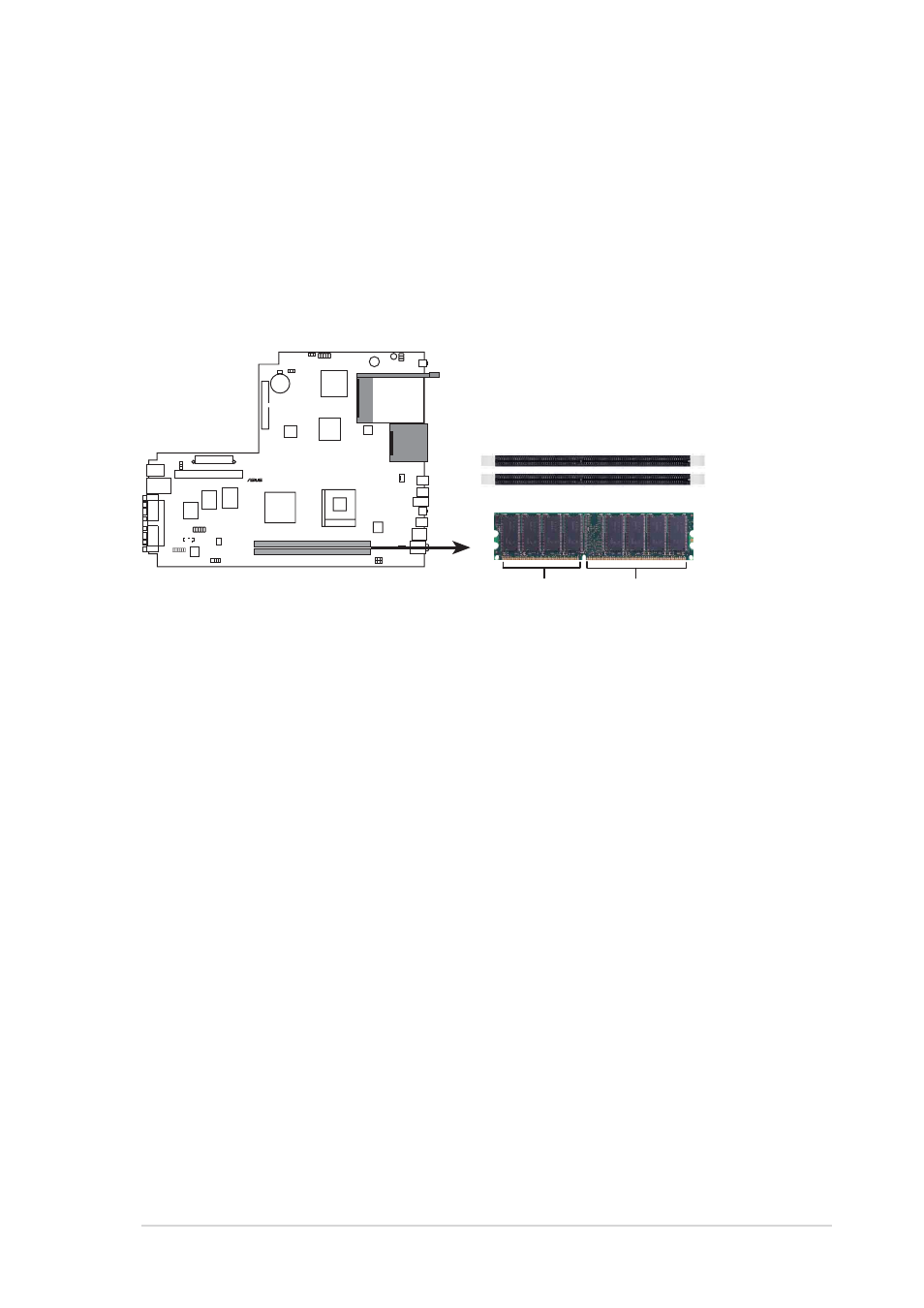

P4S8L
®
P4S8L 184-Pin DDR DIMM Sockets
80 Pins
104 Pins
