Page 26
2-12
Chapter 2: System Assemby
2.7
Installing a hard disk drive

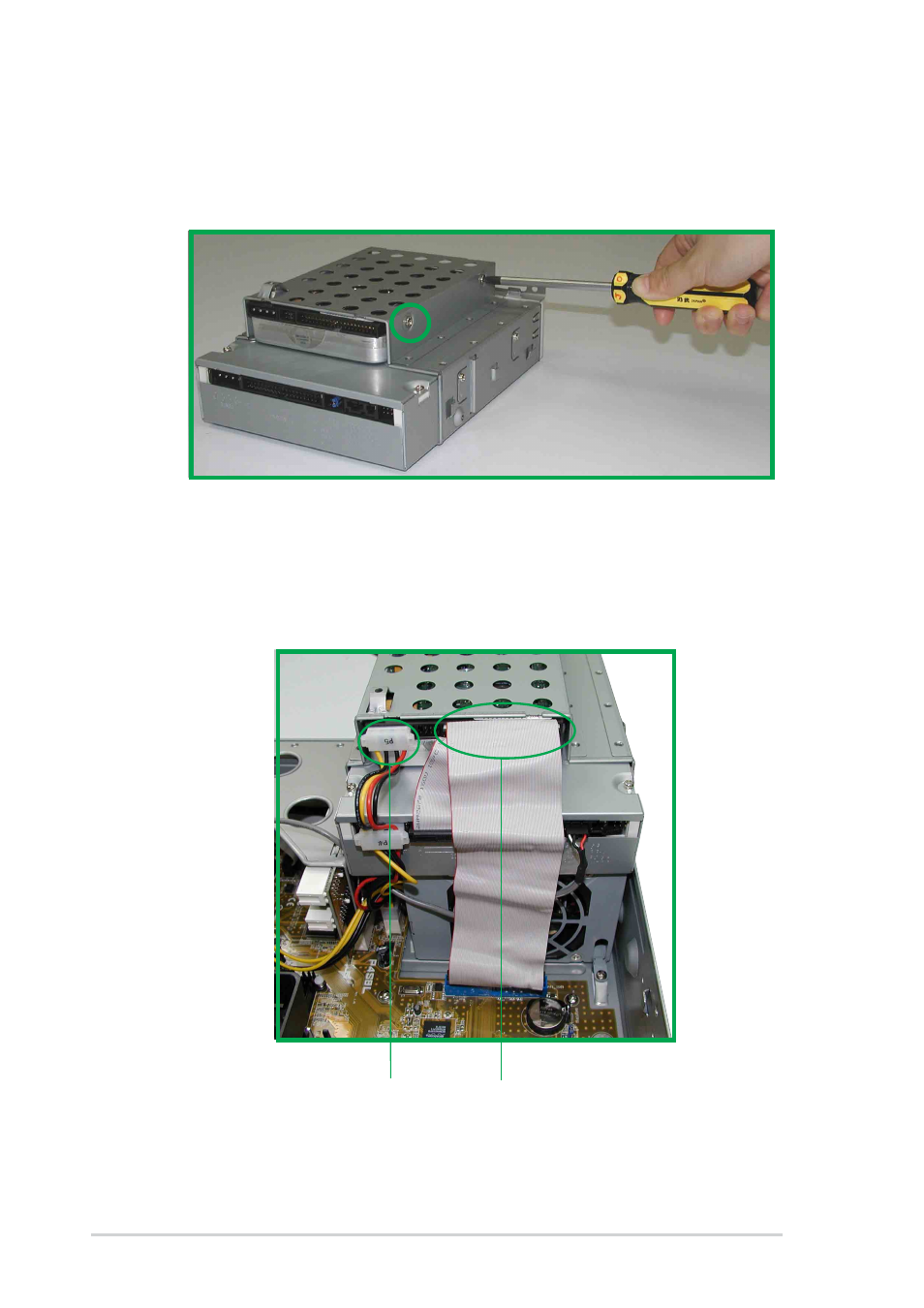

1.
Carefully slip the hard disk drive into the disk drive assembly. Ensure
that the four screw holes are properly aligned. Tighten in the screws.
2.
Slide the disk drive assembly back into its original place. Connect the
middle connector of the IDE cable to the primary IDE connector on
the hard disk drive. Locate the P5 power cable and connect it to the
hard disk drive.
IDE Cable
(Red strip to Pin 1)
Power Cable (P5)
