4 installing the cpu – Asus Pundit-S User Manual
Page 20
2-6
Chapter 2: System Assemby
2.4
Installing the CPU
1.
To install the CPU, it is
necessary to remove the
pre-installed heatsink
assembly.
2.
Press down and unhook
the metal retaining clips
on both sides of the
metal heatsink.
3.
Disconnect the CPU fan
power cable if it is too
short.
4.

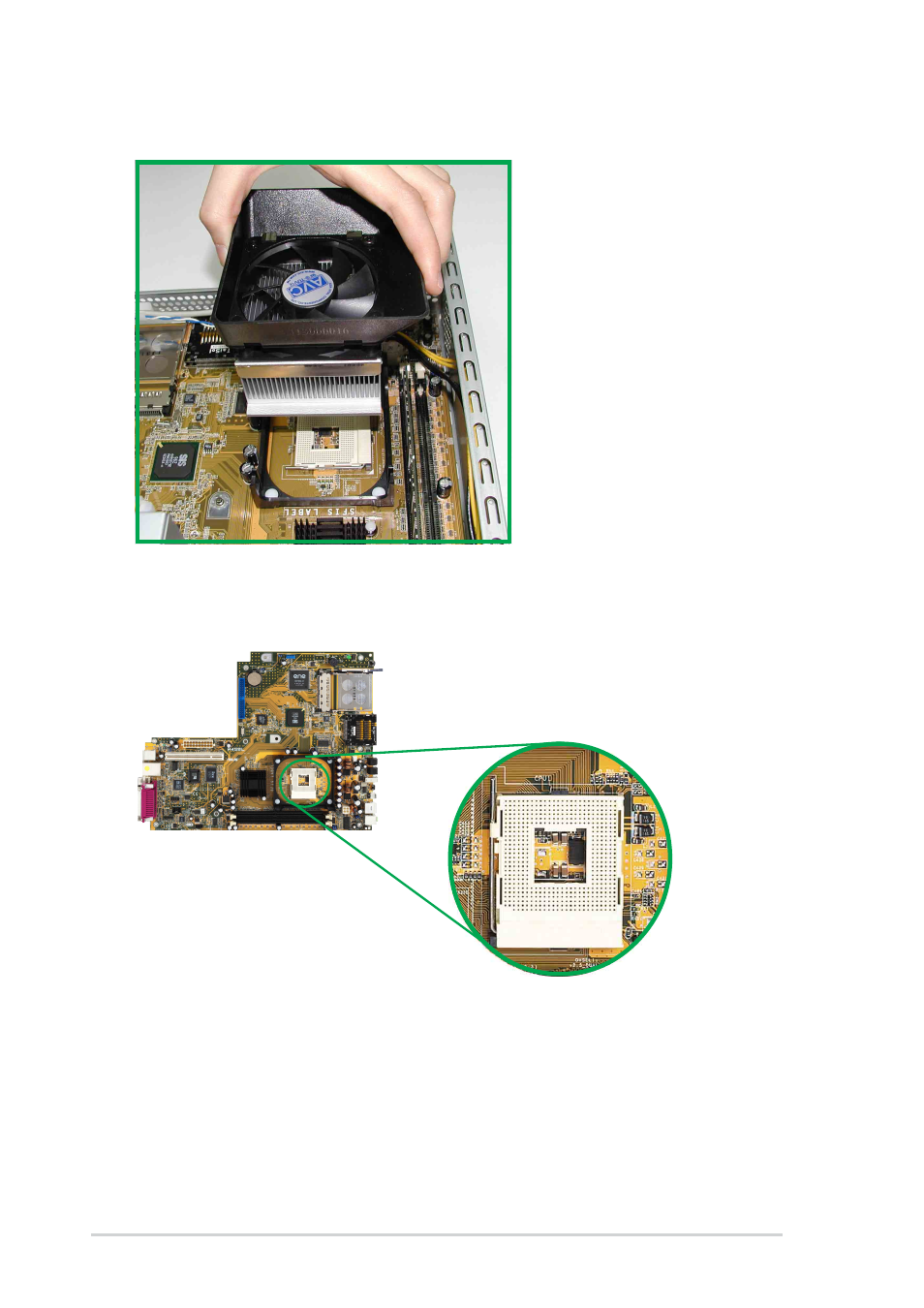

Lift the heatsink
assembly up and out.
5.
Locate the CPU Socket
478 on the motherboard.
Pundit P4S8L Motherboard
