1-20 Chapter 1: Product introduction
11. System panel connector (20-pin PANEL1)
This connector accommodates several system front panel functions.
• System Power LED Lead (3-1 pin PLED)
This 3-1 pin connector connects to the system power LED. The LED lights up
when you turn on the system power, and blinks when the system is in sleep
mode.
• Keyboard Lock Lead (2-pin KEYLOCK)
This 2-pin connector connects to a chassis-mounted switch to allow the use of
the keyboard lock feature.
• System Warning Speaker Lead (4-pin SPEAKER)
This 4-pin connector connects to the case-mounted speaker and allows you to
hear system beeps and warnings.
• System Management Interrupt Lead (2-pin SMI)
This 2-pin connector allows you to manually place the system into a suspend
mode, or “green” mode, where system activity is instantly decreased to save
power and to expand the life of certain system components. Attach the case-
mounted suspend switch to this 2-pin connector.
• ATX Power Switch / Soft-Off Switch Lead (2-pin PWRBTN)
This connector connects a switch that controls the system power. Pressing the
power switch turns the system between ON and SLEEP, or ON and SOFT
OFF, depending on the BIOS or OS settings. Pressing the power switch while
in the ON mode for more than 4 seconds turns the system OFF.
• Reset Switch Lead (2-pin RESET)
This 2-pin connector connects to the case-mounted reset switch for rebooting
the system without turning off the system power.
• Hard Disk Activity LED Lead (2-pin HDLED)
This 2-pin connector supplies power to the hard disk activity LED. Any read or
write activities from devices connected to the IDE connectors cause this LED
to light up.
P4XP-X
®

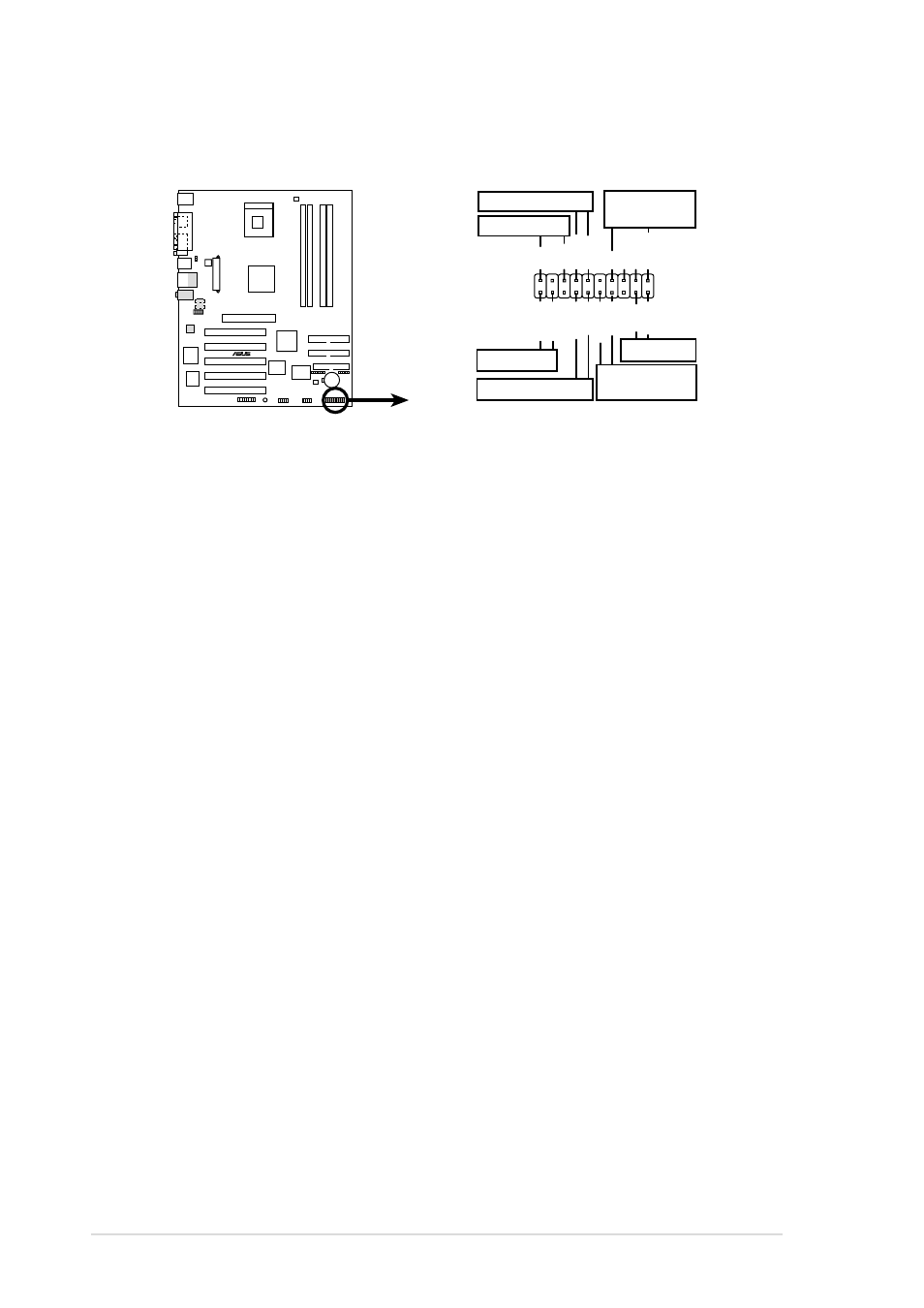

P4XP-X System Panel Connectors
* Requires an ATX power supply.
PLED
Ground
PWRBIN
+5 V Keylock +5V Speaker
Speaker
Connector
Power LED
Ground
Reset SW
SMI Lead
ExtSMI#
Ground
Reset
Ground Ground Ground
Keyboard Lock
ATX Power
Switch*
HDLED
HDLED+ HDLED-
