ASUS TS500-E5 4-5

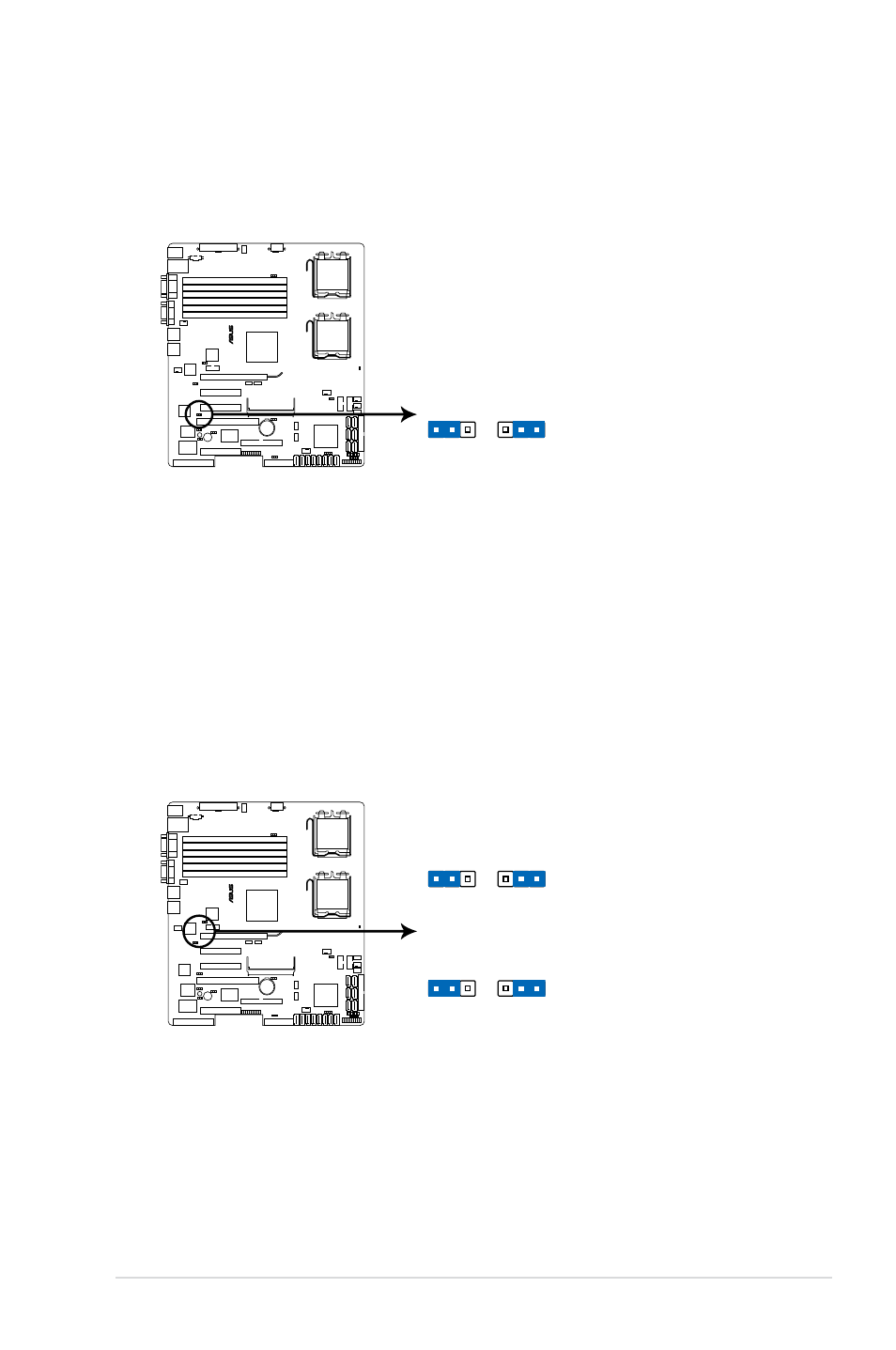

2. VGA controller setting (3-pin VGA_SW1)
This jumper allows you to enable or disable the onboard VGA controller. Set
to pins 1–2 to activate the VGA feature.
®
DS
AN
-D X/ TS
50 0- E5
DSAN-DX/TS500-E5
VGA setting
2 1 2 3
Enable VGA
(Default)
Disable
VGA_SW1
3. LAN controller setting (3-pin LAN_SW1, LAN_SW2)
These jumpers allow you to enable or disable the onboard Broadcom ®
BCM5721 Gigabit LAN1/2 controller. Set to pins 1–2 to activate the Gigabit
LAN feature.
®
DS
AN
-D X/ TS 50 0- E5
DSAN-DX/TS500-E5 LAN setting
2 1 2 3
Enable LAN
(Default)
Disable
LAN_SW2
2 1 2 3
Enable LAN
(Default)
Disable
LAN_SW1
