5-10 Chapter 5: Multiple GPU technology support
5.2.2 Installing two SLI-ready graphics cards

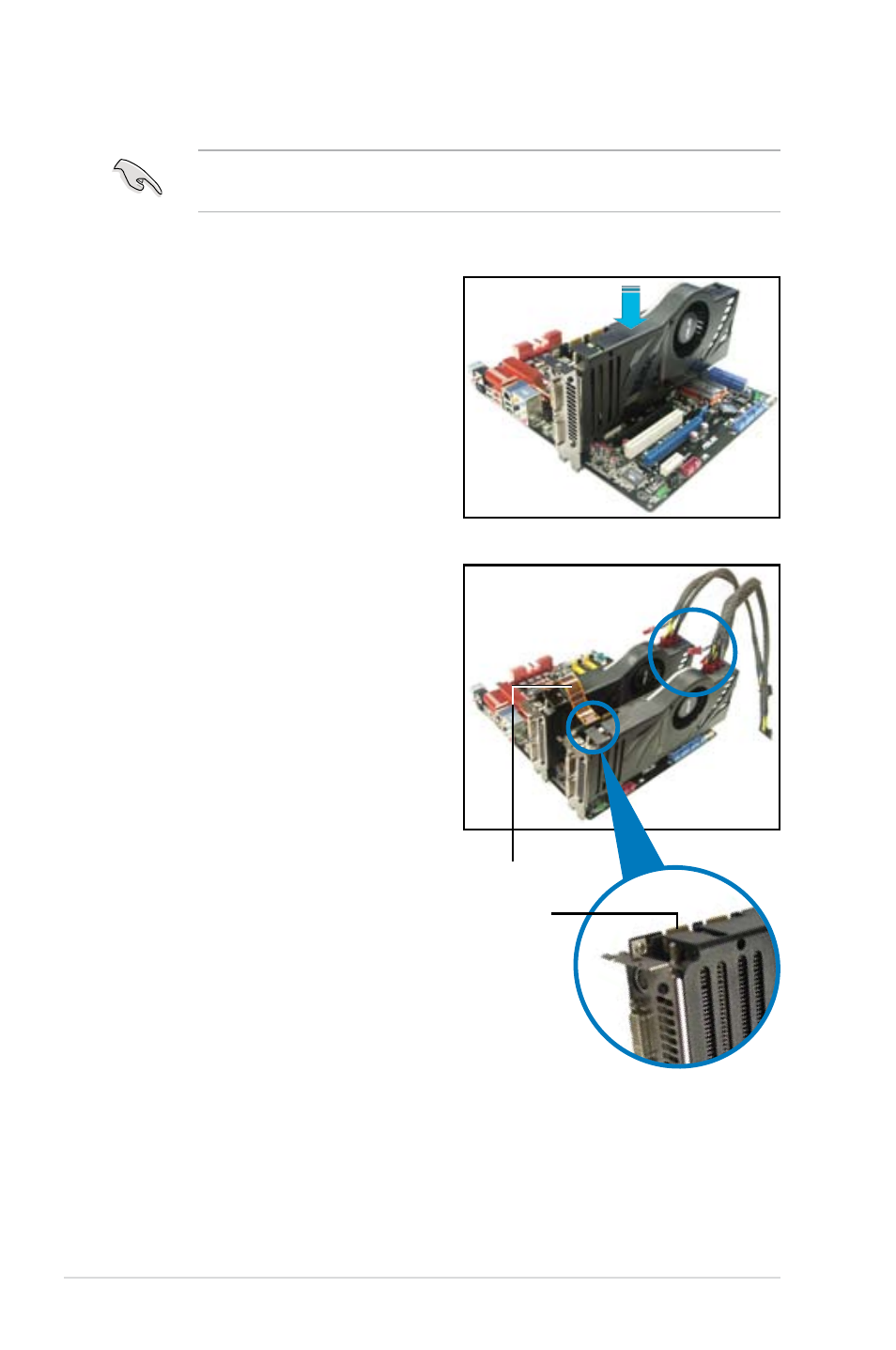

The following pictures are for reference only. The graphics cards and the motherboard
layout may vary with models, but the installation steps remain the same.
Goldfingers
SLI bridge
1. Prepare two SLI-ready graphics cards.
2.
Insert the two graphics card into the
PCIEX16 slots. If your motherboard
has more than two PCIEX16 slots,
refer to Chapter 2 in this user manual
for the locations of the PCIEX16 slots
recommended for multi-graphics card
installation.
3. Ensure that the cards are properly
seated on the slots.
4. Align and firmly insert the SLI bridge
connector to the goldfingers on each
graphics card. Ensure that the connector
is firmly in place.
5. Connect two independent auxiliary
power sources from the power supply to
the two graphics cards separately.
6. Connect a VGA or a DVI cable to the
graphics card.
