Chapter 2: Hardware information

Chapter 2

2.3.2

APU installation

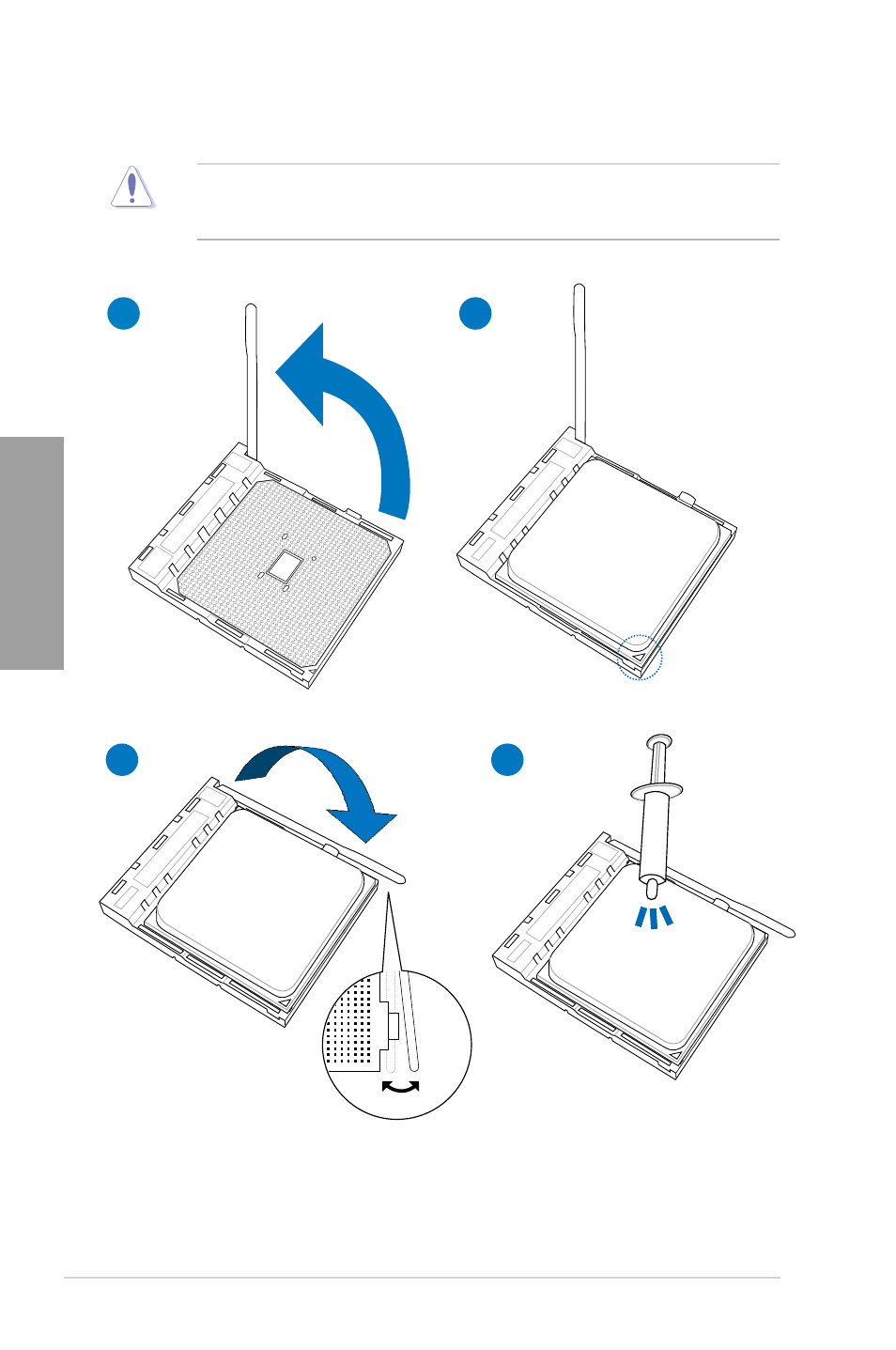

Ensure that you use a APU designed for the FM2+ socket. The APU fits in only one

correct orientation. DO NOT force the APU into the socket to prevent bending the pins and

damaging the APU!

1

2

4

3
