ASUS M3A78-CM 1-33

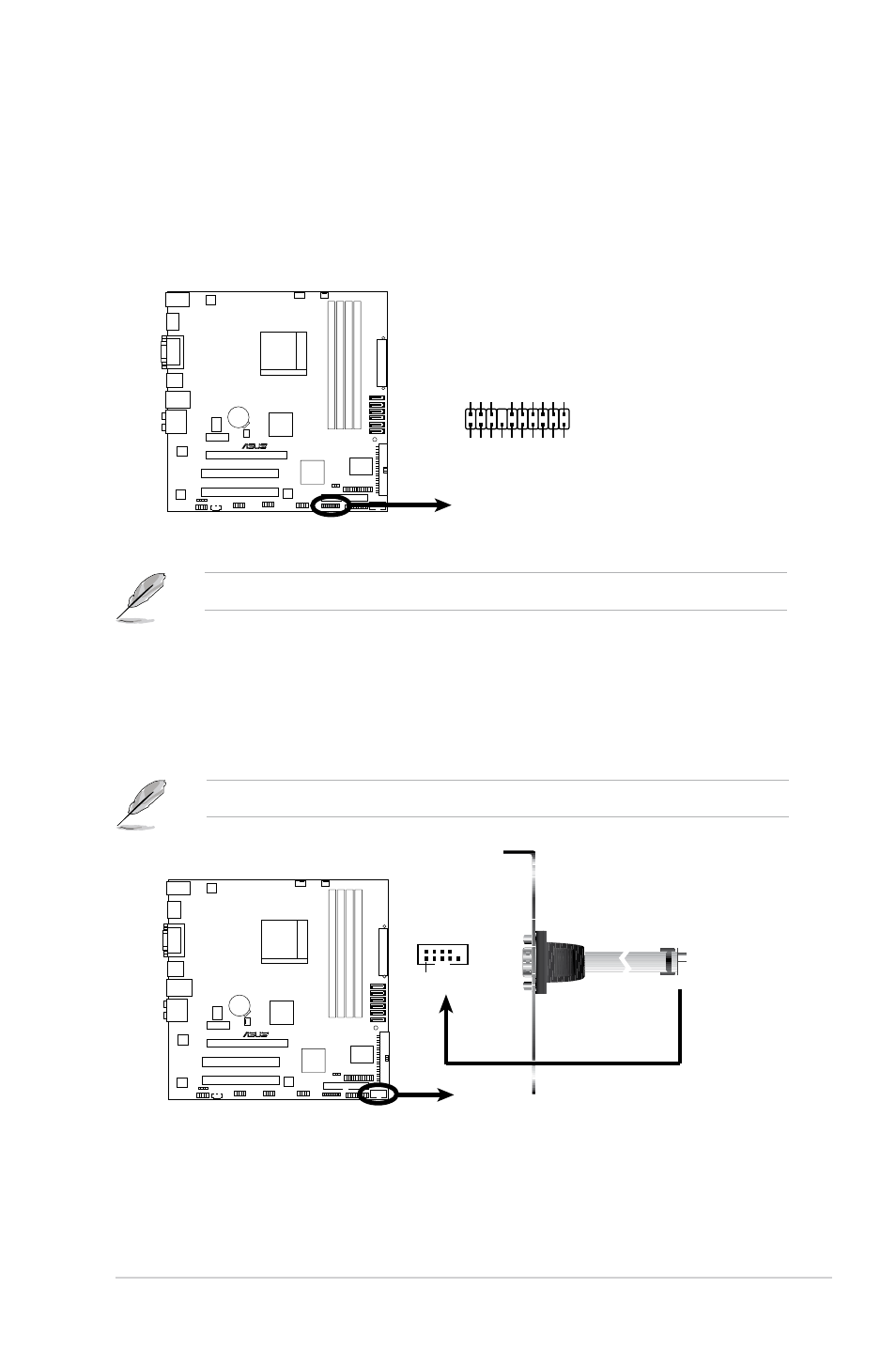

11. TPM connector (20-1 pin TPM)
This connector supports a Trusted Platform Module (TPM) system, which can
securely store keys, digital certificates, passwords, and data. A TPM system
also helps enhance network security, protects digital identities, and ensures
platform integrity.
The TPM model is purchased separately!
R
M3A78-CM
M3A78-CM TPM Connector
TPM
S_SMBCLIK_MAI
N
S_SMBCLK_MAI
N
GND
S_PL
TRST#
F_FRAME# C_PCICLK_TPM
1
GND
F_LAD1 F_LAD2
F_LAD0 +3V +3V F_LAD3
GND
F_SERIRQ#
GND +3VSB S_PWRDWN#
12. Serial port connector (10-1 pin COM1)
The connector is for a serial (COM) port. Connect the serial port module
cable to the connector, then install the module to a slot opening at the back of
the system chassis.
The serial port bracket (COM1) is purchased separately.
R
M3A78-CM
M3A78-CM COM Port Connector
PIN1
COM1
