5) Serial Port Connectors (Teal/Turquoise 9-pin COM1, 10-1 pin COM2)

One serial port is ready for a mouse or other serial devices. A second serial port
is available using a serial port bracket connected from the motherboard to an
expansion slot opening. See Onboard Serial Port 1/2 in 4.4.2 I/O Device
Configuration
for settings.

6) Game/MIDI Connector (Gold 15-pin GAME_AUDIO) (optional)

You may connect game joysticks or game pads to this connector for playing
games. Connect MIDI devices for playing or editing professional audio.

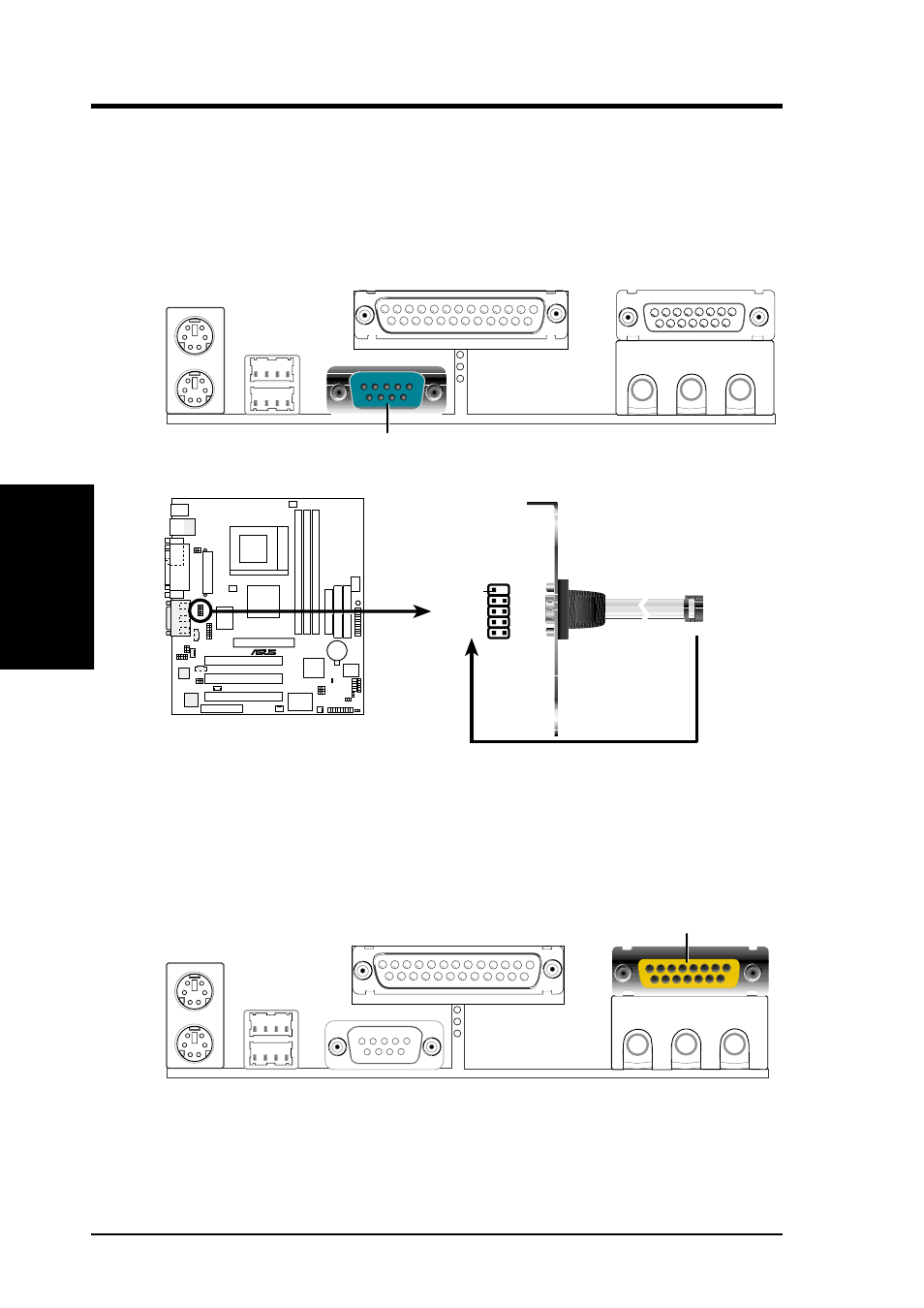

COM 1

Serial Port (9-pin male)

Joystick/MIDI (15-pin female)

TUEP2-M

®

TUEP2-M Serial COM2 Bracket

PIN 1
