1.3 Finding Your Way Around
1.3.1 Front Panel

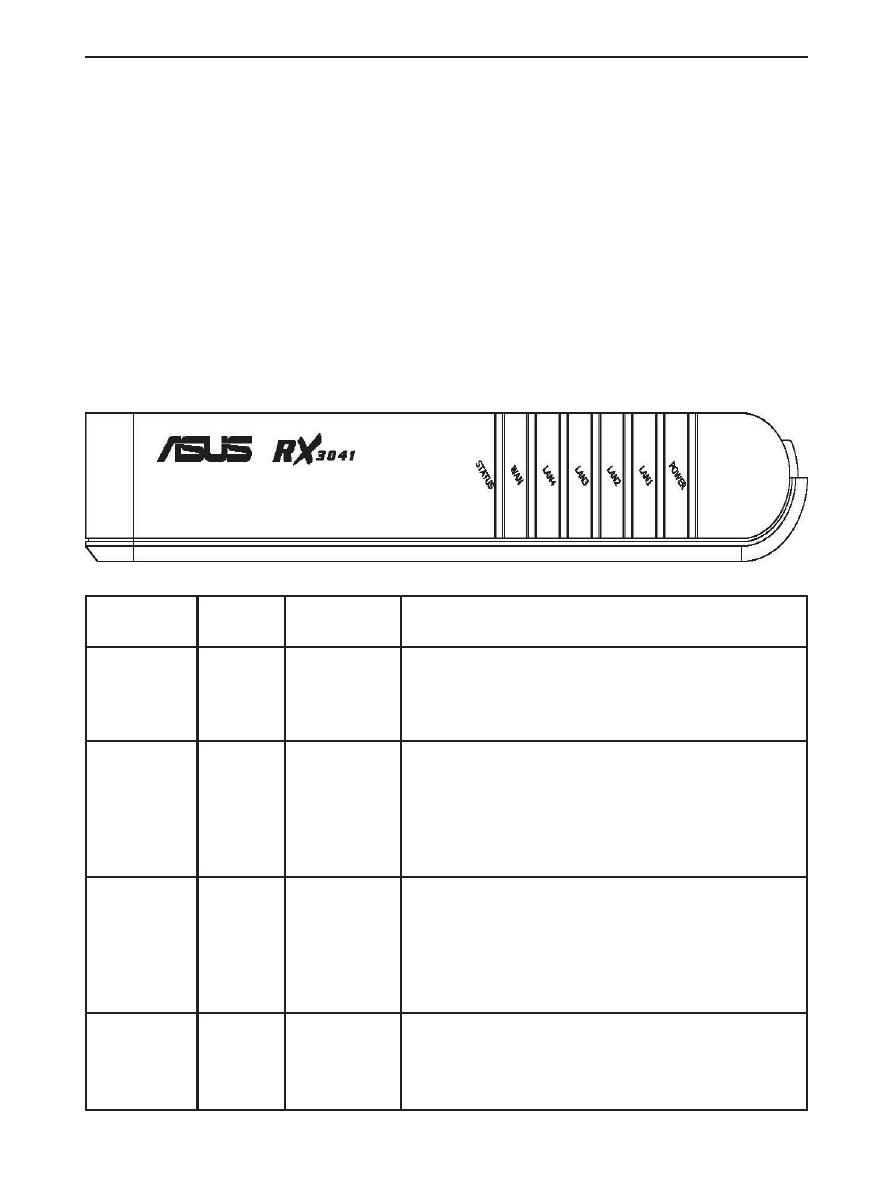

The front panel contains LED indicators that show the status
of the unit.
LED
Color
Status
Indication
POWER
Green
ON
OFF
RX3041 is powered on.
RX3041 is powered off.
LAN(1-4)
Green
ON
BLINKING
Link is established.
Link is established, and data is being
transmitted or received.
WAN
Green
ON
BLINKING
Link is established.
Link is established, and data is being
transmitted or received
STATUS
Green
ON
BLINKING
The device is hung.
The device is up and ready.
