ASUS P5KPL IPC/SI 1-11

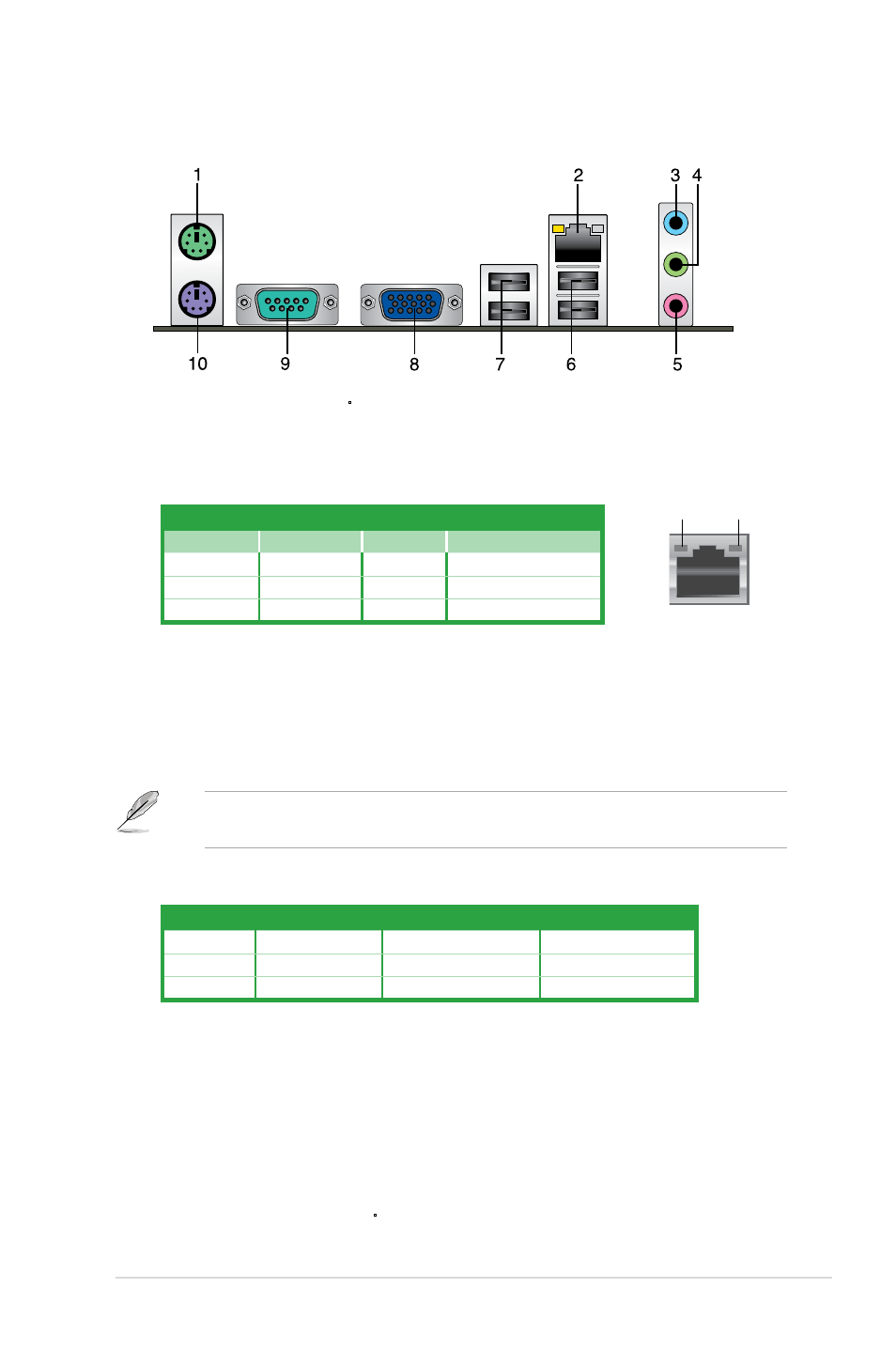

1. PS/2 mouse port (green). This port is for a PS/2 mouse.
2. LAN (RJ-45) port. This port allows Gigabit connection to a Local Area Network (LAN)
through a network hub. Refer to the table below for the LAN port LED indications.
LAN port LED indications
ACT/LINK LED SPEED LED
Status Description Status Description
OFF No link OFF 10 Mbps connection
ORANGE Linked ORANGE 100 Mbps connection
BLINKING Data activity GREEN 1 Gbps connection
3. Line In port (light blue). This port connects the tape, CD, DVD player, or other audio
sources.
4. Line Out port (lime). This port connects a headphone or a speaker. In 4-channel and
6-channel configurations, the function of this port becomes Front Speaker Out.
5. Microphone port (pink). This port connects a microphone.
Refer to the audio configuration table below for the function of the audio ports in 2, 4, or
6-channel configuration.
Audio 2, 4, or 6-channel configuration
Port Headset 2-channel 4-channel 6-channel
Light Blue Line In Rear Speaker Out Rear Speaker Out
Lime Line Out Front Speaker Out Front Speaker Out
Pink Mic In Mic In Bass/Center
LAN port
SPEED
LED
ACT/LINK
LED
6. USB 2.0 ports 1 and 2. These two 4-pin Universal Serial Bus (USB) ports are
available for connecting USB 2.0 devices.
7. USB 2.0 ports 3 and 4. These two 4-pin Universal Serial Bus (USB) ports are
available for connecting USB 2.0 devices.
8. Video Graphics Adapter (VGA) port. This 15-pin port is for a VGA monitor or other
VGA-compatible devices.
9. COM port. This port is for pointing devices or other serial devices.
10. PS/2 keyboard port (purple). This port is for a PS/2 keyboard.
1.7 Connectors
1.7.1 Rear panel connectors
