1-4 Chapter 1: Product introduction
1.4.2 Memory configurations
You may install 512MB, 1GB, 2GB, and 4GB unbuffered non-ECC DDR2 DIMMs into the
DIMM sockets.
• You may install varying memory sizes in Channel A and Channel B. The system maps the
total size of the lower-sized channel for the dual-channel configuration. Any excess memory
from the higher-sized channel is then mapped for single-channel operation.
• Always install DIMMs with the same CAS latency. For optimum compatibility, it is
recommended that you obtain memory modules from the same vendor.
• For single-channel configuration, you may:
-
install one double-sided DIMM in any of the four sockets OR
- install two single-sided DIMMs in DIMM_A1 and DIMM_A2, or in DIMM_B1 and
DIMM_B2.
• For dual-channel configuration, you may:
-
install two double-sided DIMMs OR
- install four single-sided DIMMs.
• Due to the memory address limitation on 32-bit Windows ® OS, when you install 4GB
or more memory on the motherboard, the actual usable memory for the OS can be
about 3GB or less. For effective use of memory, we recommend that you do any of the
following:
- Use a maximum of 3GB system memory if you are using a 32-bit Windows ® OS.
- Install a 64-bit Windows ® OS when you want to install 4GB or more memory on
the motherboard.
• This motherboard does not support DIMMs made up of 256 megabits (Mb) chips or less.
This motherboard supports up to 4GB on Windows ® XP Professional x64 and Windows ®
Vista x64 editions.
1.4 System memory
1.4.1 Overview
The motherboard comes with four Double Data Rate 2 (DDR2) Dual Inline Memory Modules

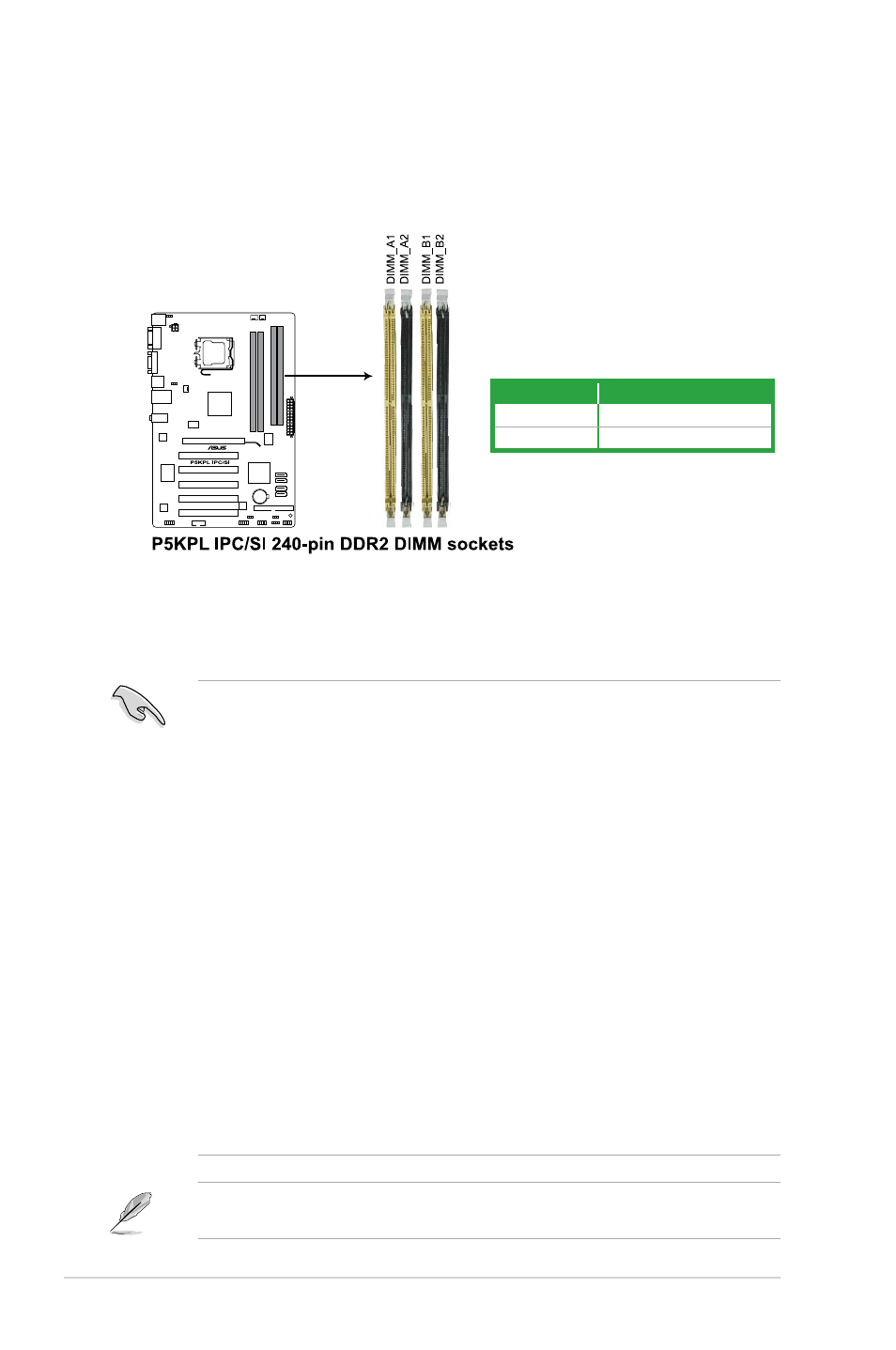

(DIMM) sockets. The figure illustrates the location of the DDR2 DIMM sockets:
Channel Sockets
Channel A DIMM_A1 and DIMM_A2
Channel B DIMM_B1 and DIMM_B2
