Asus A7N8X-VM/400 User Manual
Page 29
ASUS A7N8X-VM 400 Motherboard
1-19

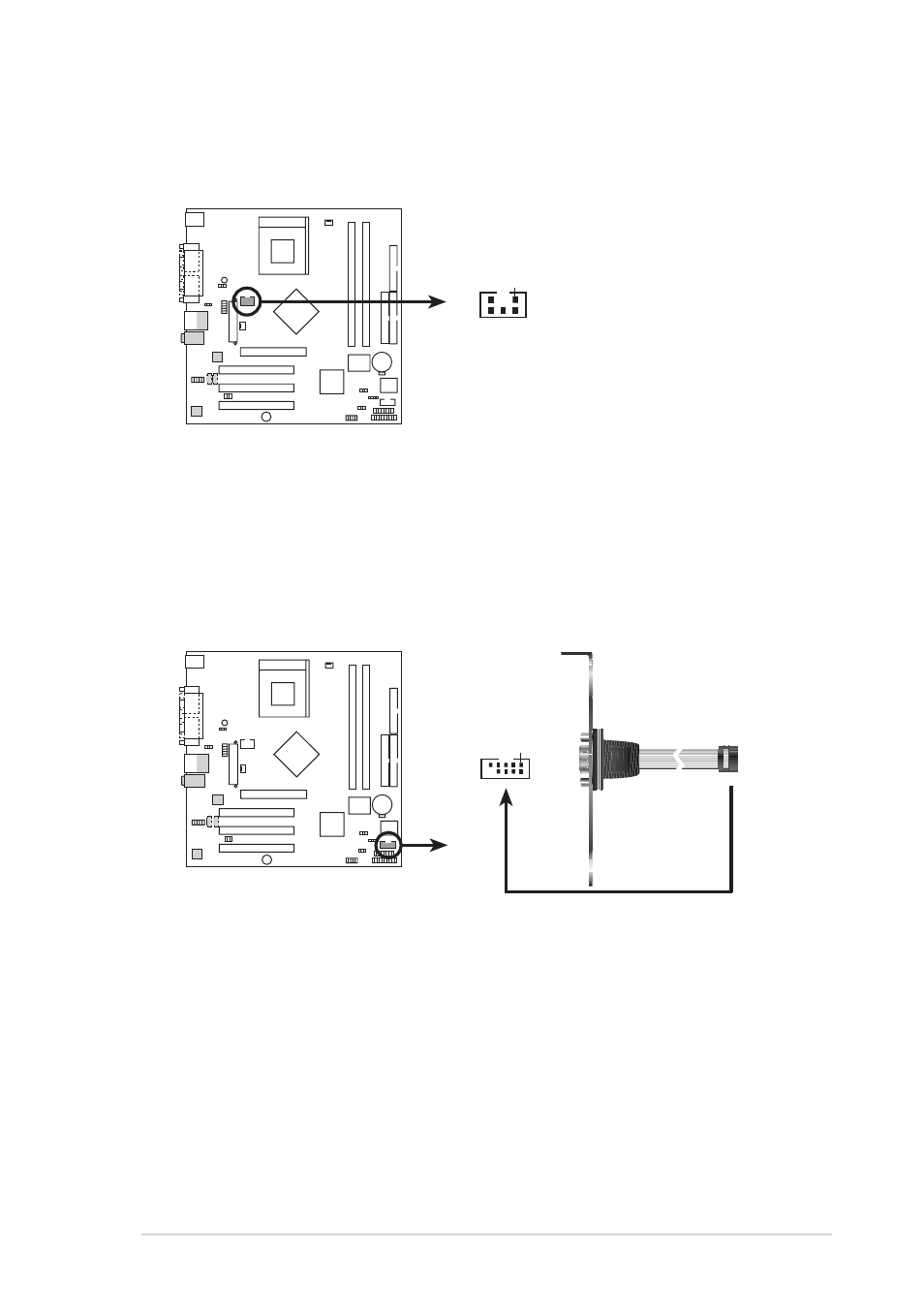

13. Serial Port 2 connector (10-1 pin COM2)
This connector accommodates a second serial port using an optional serial
port bracket. Connect the bracket cable to this connector then install the
bracket into a slot opening at the back of the system chassis.
12. TV out connector (6-1 pin U46)
This 6-1 pin connector connects to the front panel daughter card with the audio
tv-out port.
A7N8X-VM 400
A7N8X-VM 400 TV Out Connector
1
TV_OUT
A7N8X-VM 400
A7N8X-VM 400 Serial COM2 Bracket
PIN 1
COM2
