ASUS A7N8X-VM 400 Motherboard 1-15

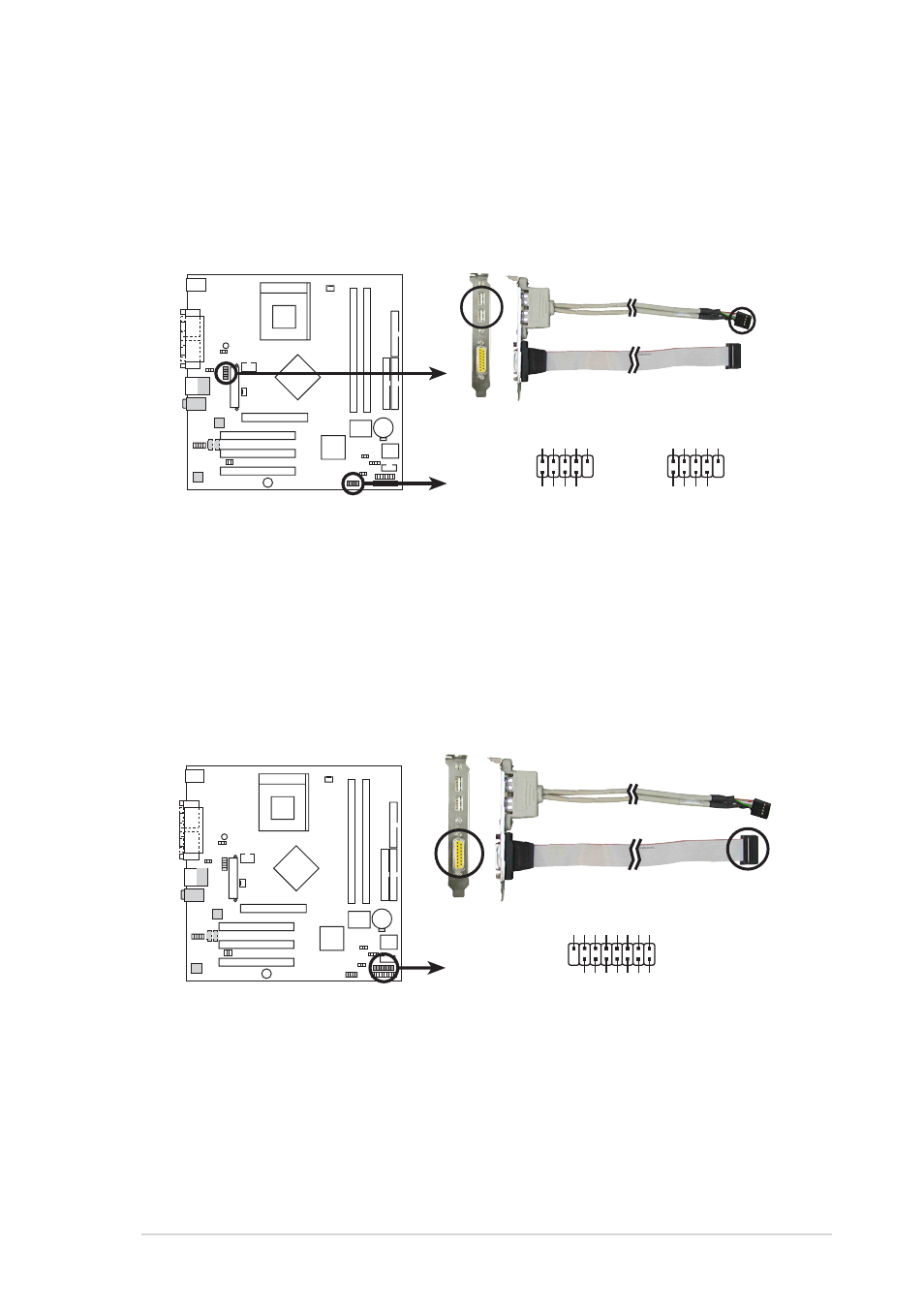

4. USB headers (10-1 pin USB34, USB56)
If the USB 2.0 port connectors on the back panel are inadequate, two USB
headers are available for four additional USB port connectors. Connect a 2-
port USB connector set to a USB header and mount the USB bracket to an
open slot in the chassis.
5. GAME/MIDI connector (16-1 pin GAME1)
This connector supports a GAME/MIDI module. If your package came with the
optional USB 2.0/GAME module, connect the GAME/MIDI cable to this
connector. The GAME/MIDI port on the module connects a joystick or a game
pad for playing games, and MIDI devices for playing or editing audio files.
A7N8X-VM 400
A7N8X-VM 400 USB 2.0 Headers
USB56
USB+5V USB_P6- USB_P6+ GND NC
USB+5V USB_P5- USB_P5+
GND
1
USB34
USB+5V USB_P4- USB_P4+ GND NC
USB+5V
USB_P3- USB_P3+
GND
1
A7N8X-VM 400
A7N8X-VM 400 Game Connector
GAME1
+5V
+5V
J2B1 J2CX
MIDI_OUT
J2CY J2B2
MIDI_IN
J1B1 J1CX GND GND J1CY J1B2 +5V
