1-3 Chapter 1: Product introduction

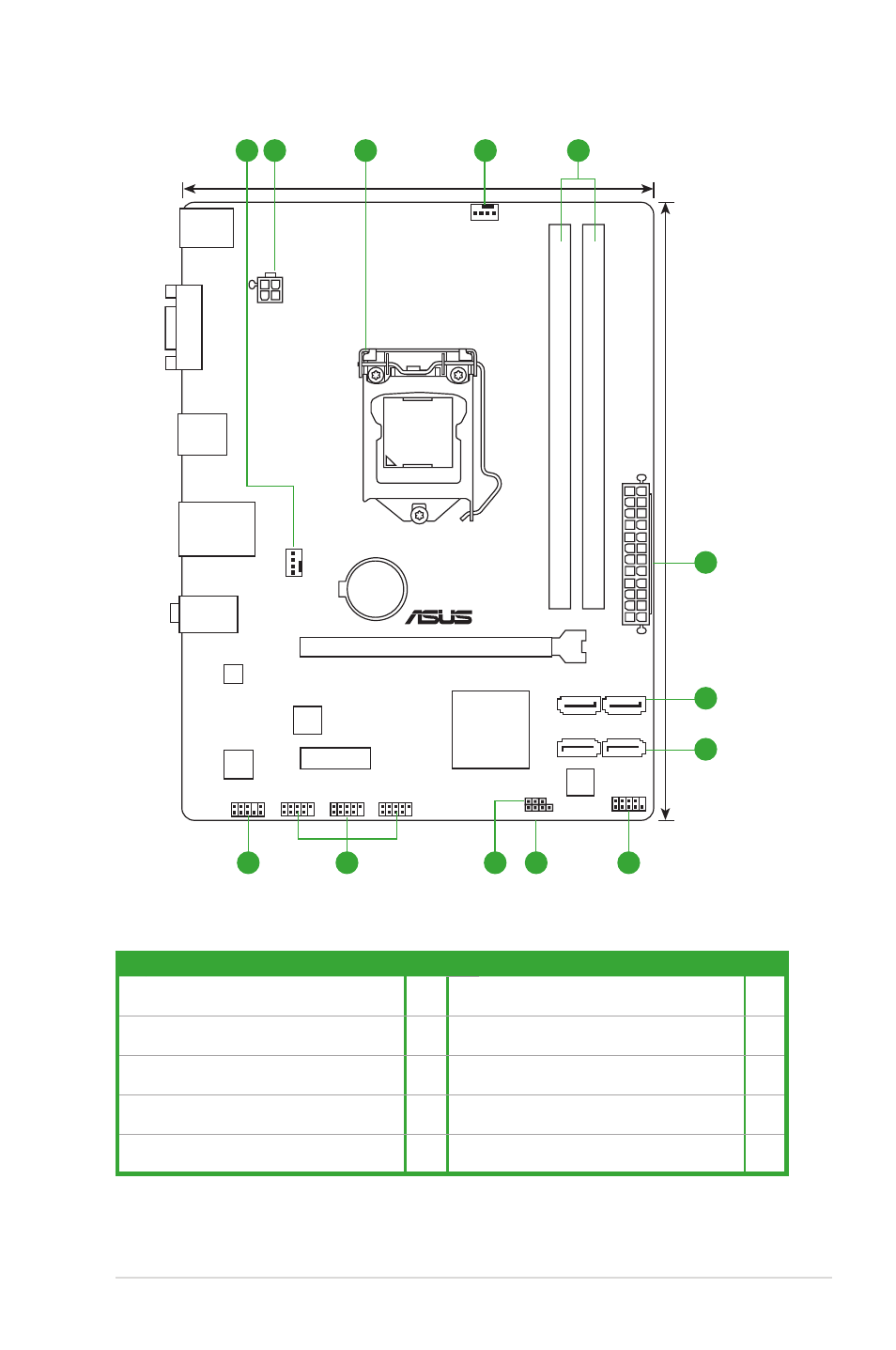

1.2.3 Motherboard layout
1.2.4 Layout contents
Connectors/Jumpers/Slots/LED Page Connectors/Jumpers/Slots/LED Page
1. CPU and chassis fan connectors
(4-pin CPU_FAN, 4-pin CHA_FAN)
1-18 6. System panel connector (10-1 pin PANEL) 1-19
2. ATX power connectors (24-pin EATXPWR,
4-pin ATX12V)
1-17 7. Speaker connector (4-pin SPEAKER) 1-19
3. Intel ® LGA1155 CPU socket 1-4 8. Clear RTC RAM (3-pin CLRTC) 1-14
4. DDR3 DIMM slots 1-9 9. USB connectors (10-1 pin USB56, USB78,
USB910)
1-18
5. Intel ® H61 Serial ATA 3.0Gb/s connectors
(7-pin SATA3G_1/2/3/4)
1-17 10. Front panel audio connector (10-1 pin AAFP) 1-16
P8H61-M LX3
PCIEX16
PCIEX1_1
USB56 USB78 USB910
F_PANEL
SPEAKER
CLRTC
AAFP
ATX12V
EATXPWR
CPU_FAN
CHA_FAN Lithium Cell
CMOS Power
Super
I/O
VIA
VT1708S
RTL
8111E
32Mb
BIOS
22.6cm(8.9in)
LGA1155
Intel ®
H61
DDR3 DIMM_A1 (64bit, 240-pin module) DDR3 DIMM_B1 (64bit, 240-pin module)
SATA3G_1
SATA3G_3 SATA3G_2
SATA3G_4
AUDIO
KBMS
LAN_USB12
USB34
17.3cm(6.8in)
VG
A
3 2 1 4 1
2
7 8 9 10
5
6
5
6
