SCANTECH ID (Champtek company) Scan Kiosk SK-40 User Manual
Page 31

27
2.3
CONNECTING THE SK-40 SK-50
Remove the back cover from the I/O compartment. Ref Chapter 1.4.2
2.3.1 CONNECT TO THE LOCAL NETWORK

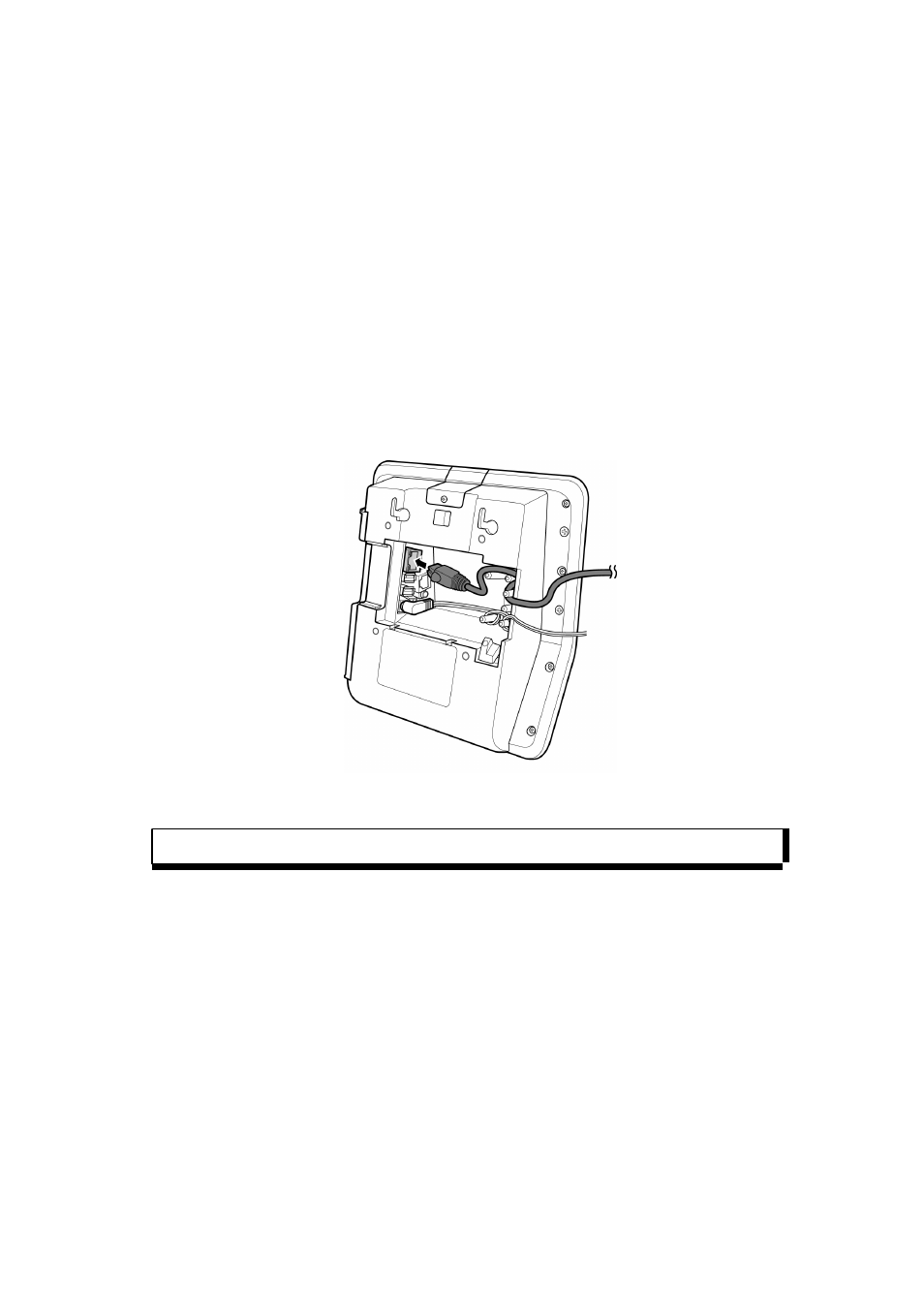

Wired Ethernet
Connect the Ethernet cable into the LAN port in the Data I/O compartment
to obtain network access. Apply the (6) cable strain relief pins.
NOTE
The LAN port contains two network LED indicators.
Wireless connection
A Wi-Fi stick must be present in one of the USB ports in the side compartment or in
the Data I/O compartment for wireless connection. The SK-40/50 WiFi version is
supplied from the factory with the WiFi USB stick built-in. If placed afterwards: this
must a Scantech validated type to guarantee correct wireless communication.
