24
2.1.2 Wall Mount with 2 screws
1. Select a suitable location to mount the device.
2. See the next page for a Drilling Template, mark the location for the mounting
screws and drill two holes in the wall.
3. Plug the wall-plugs into the holes.
4. Screw the mounting screws into the wall.
5. Connect the power adapter, cables and other accessories to the device.
See the following pages for connection instructions.

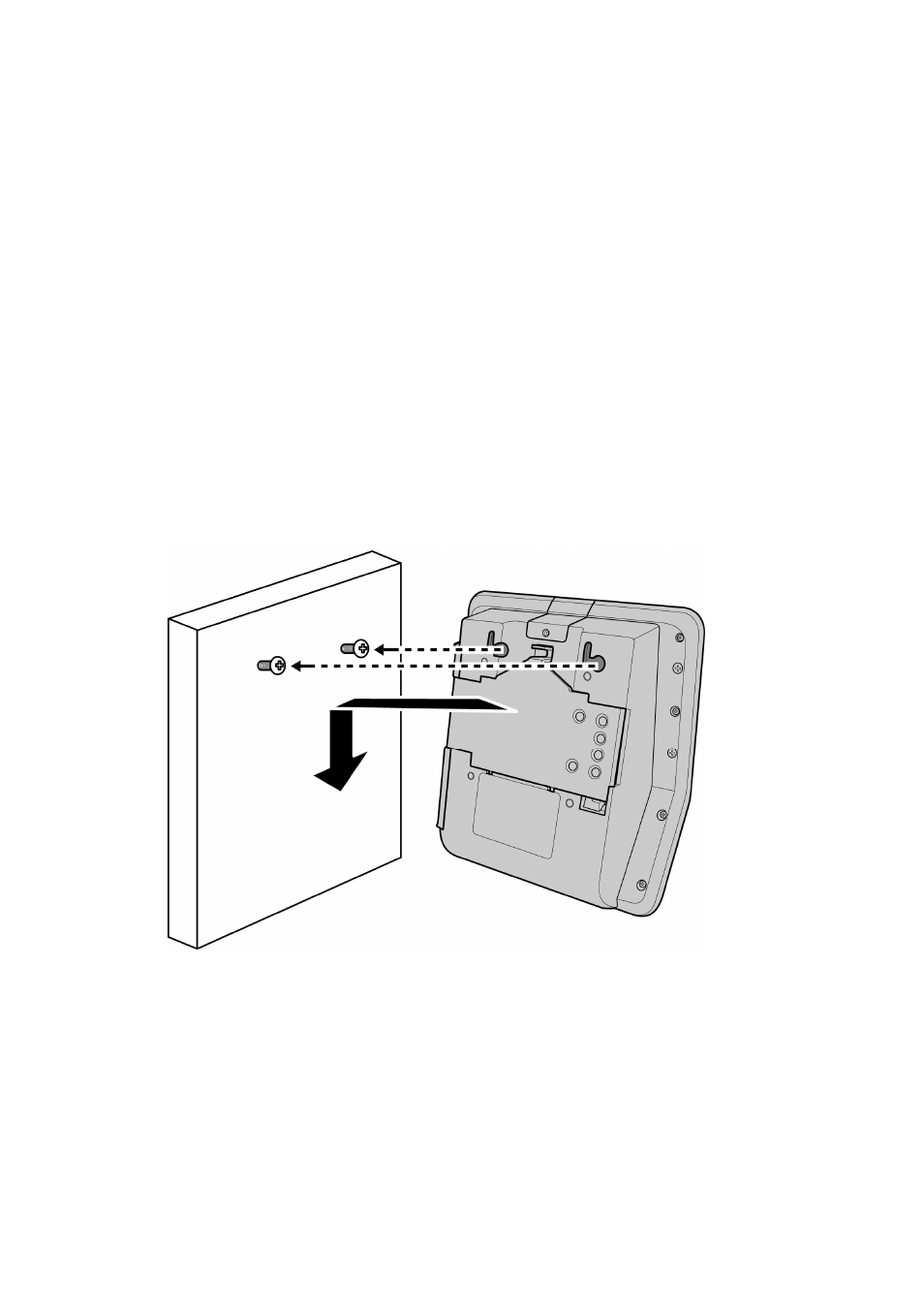

6. Position the device so the screws fit into the mounting holes and then push
the device first to the right and then down to secure it in the right place.
