5. Place the scanner in the counter hole. Pay attention to the product flow!
6. Remove the top deck protection foil.
7. Power on the scanner by connecting the IEC power cord to the AC/DC power
supply and plugging the AC power cord into an AC power outlet. Switch on
the host system.
Once the scanner is installed, you can start scanning bar code labels. If you
want to change the default settings of the scanner, proceed
to the Configuration Guide which came with the scanner.

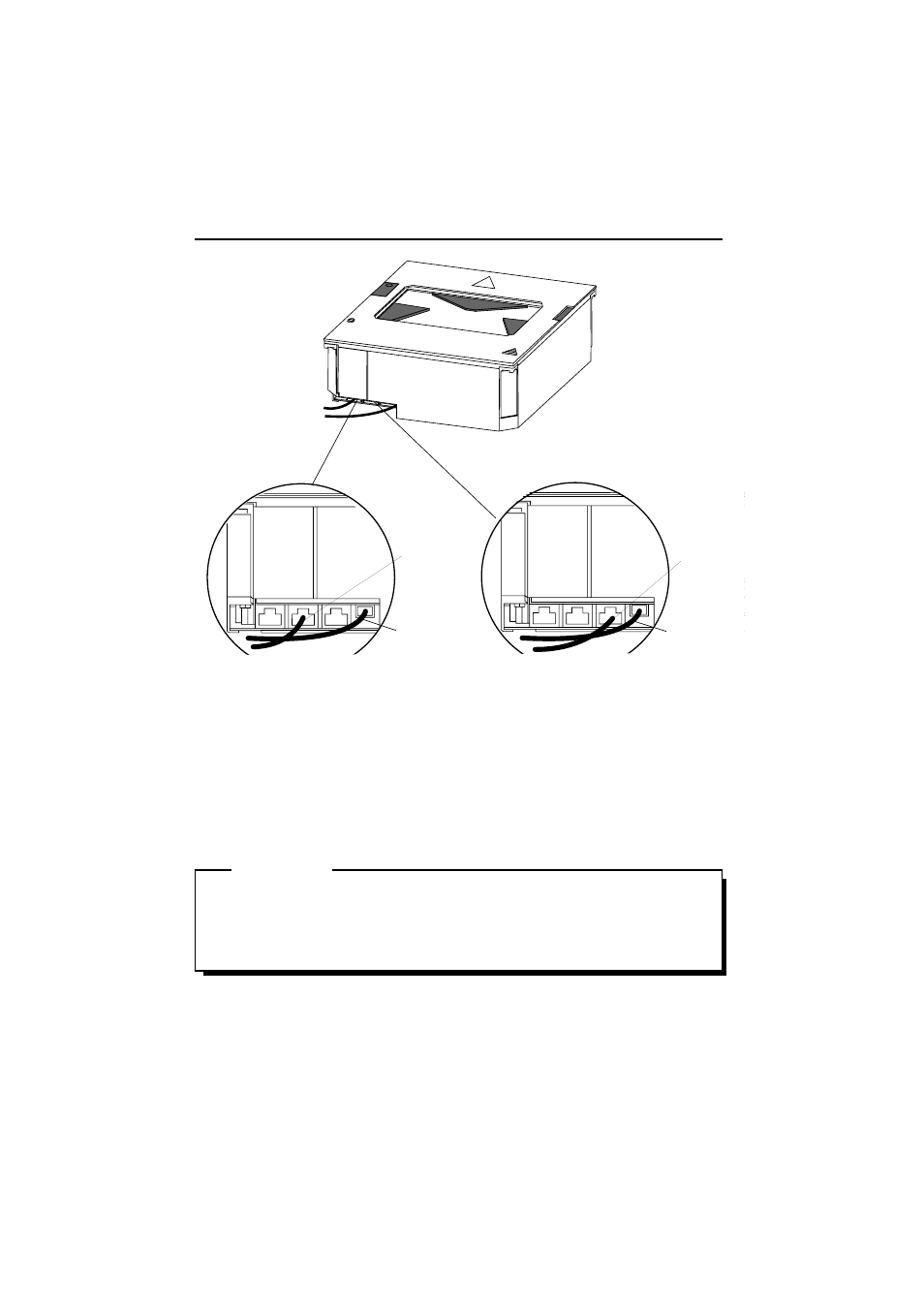

WO1:
Part No:
Serial no. 1
12345678
Manufactured model
Port1
Port2
Software
Data port 2. Connect the communication
cable to this port if the host system features
the OCIA or KBW interface
WO1:
Part No: <
Serial
12345
Data cable
Power cable
Data cable
Data port 1. Connect the communication
cable to this port if the host system features
the RS232C or IBM RS 485 interface
Power cable
14 Installing the Castor C-5010
■ To activate Data port 2 (OCIA or KBW interface) scan the following codes
from the Configuration Guide:
1. open the scanner Programming Mode by scanning code 1.1
2. return to factory default settings by scanning code 1.3
IMPORTANT
