The Castor C-5010 13
B. Using the horizontal mount
- Cut a hole in the counter surface following the illustration below.
- Fit the horizontal mount in the hole.
3. Lead the power supply cable and communication cable through the hole in
the counter.
4. Plug the communication cable with the 8 pin modular jack into Data port 1 if
the host system features the RS232C or IBM RS485 interface, or into Data
port 2 if the host system features the OCIA or KBW interface. Plug the other
connector of the cable into the appropriate serial port of your POS or
computer. Connect the Scantech universal power supply unit to the power
supply port.

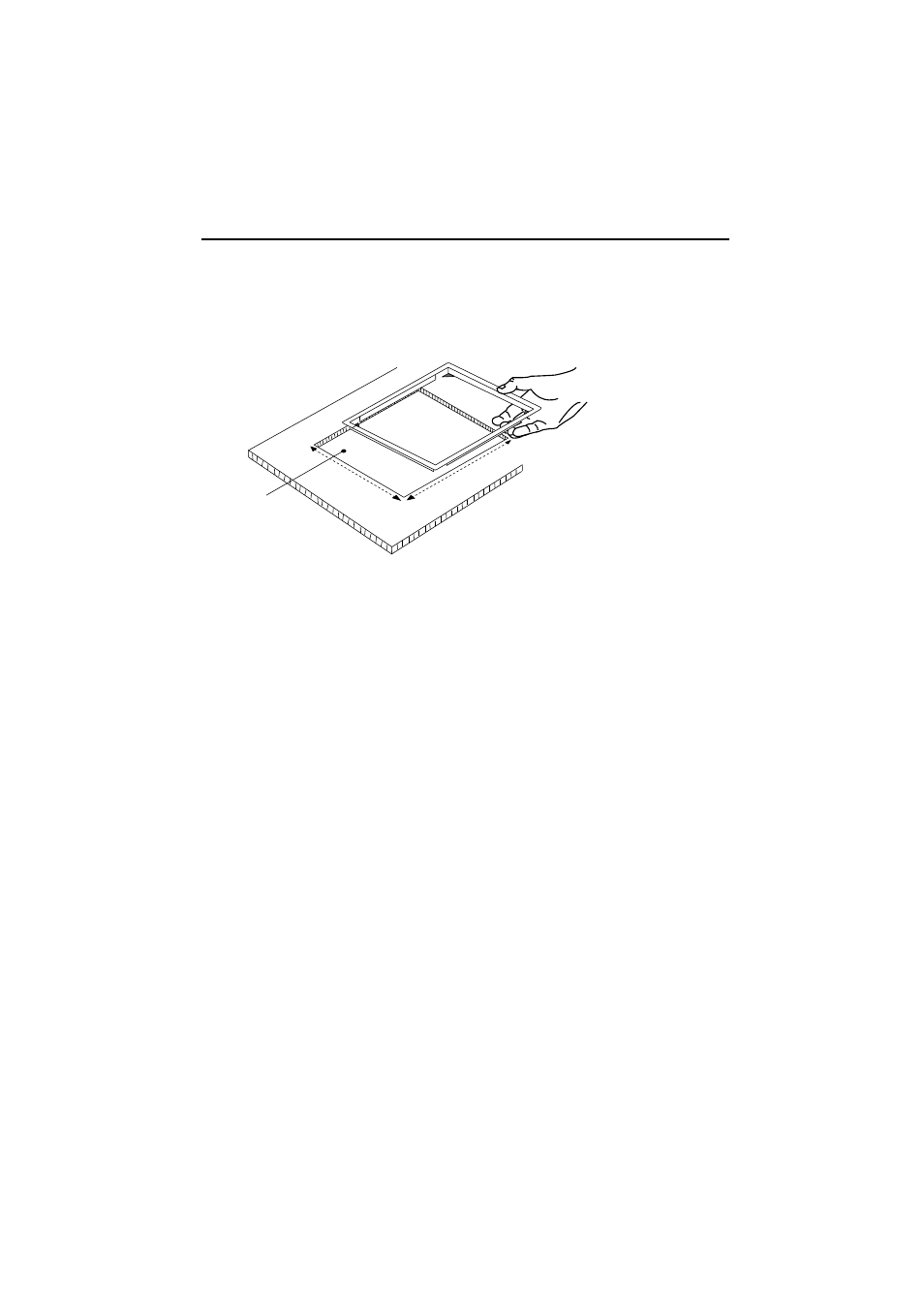

210 mm 247 mm
2. Fit horizontal mount
in hole
1. Hole
in Counter
