Install the crank pulley by applying anti-seize to the threads of the three
3/8-16 x 1” socket head cap screws, install the three 3/8” Belleville washers onto
each cap screw and thread through crank pulley into damper.
Install the water pump pulley by applying anti-seize to the threads of the four
5/16-24 x 1/2” socket head cap screws and threading them through the water
pump pulley into flange.
Install AC Compressor Clutch Cover
Apply Loctite Blue 242 to the following:
(3) 1/4-20 x 3/4” socket head cap screws
Place cover on clutch and thread the socket head cap screws through the cover
and into the clutch, torque to 40-45 inch/lbs.
Caution: Over tightening these festeners will cause damage to the compressor
clutch. Do Not Over Tighten.
Tighten all fasteners firmly.

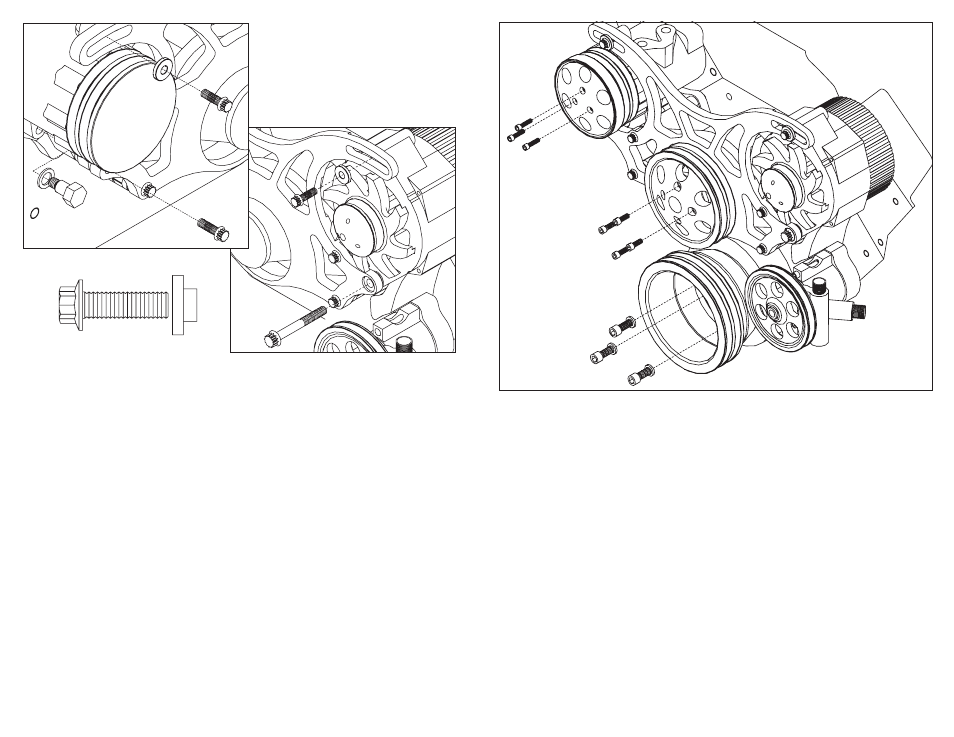

Figure 6: Install Crank Pulley, Water Pump Pulley, &
Compressor Clutch Cover
9
Alternator: Apply anti-seize to the threads of the 10mm-1.5 x 8mm ARP 12pt. cap
screw and a 8mm-1.25 x 25mm ARP 12pt. cap screw. Place alternator between
lower bridge bracket and alternator bracket and thread the long ARP 12pt. cap
screw through the bridge bracket, alternator and into the alternator bracket and
finger tighten. 10mm shim washers are provided to shim the alternator boss to the
bridge bracket. The alternator boss may vary in width due to the polishing pro-
cess. Place the 8mm slide spacer with the small end towards bridge bracket on
the short ARP 12pt. cap screw, align top alternator boss with bridge bracket and
thread the cap screw and slide spacer through bridge bracket and into alterna-
tor boss and finger tighten.
Compressor: Apply anti-seize to the threads of the 3/8-16 compressor shoulder
bolt and two 8mm-1.25 x 25mm ARP 12pt. cap screws. While supporting the
compressor, place the shoulder bolt and washer into the back compressor mount
boss and align with compressor bracket on motor and finger tighten. Thread one
8mm ARP 12pt. cap screw through bridge bracket and into lower compressor
boss and finger tighten. Place the 8mm slide spacer with the small end towards
bridge bracket on the short ARP 12pt. cap screw, align top compressor boss
with bridge bracket and thread the cap screw and slide spacer through bridge
bracket and into compressor boss and finger tighten.
TECH LINE: 708-588-0505 FAX 708-588-7181 www.billetspecialties.com
Figure 5: Install Alternator & A/C Compressor
*Flange of spacer fits into
adjustment slot on bracket.
Compressor Side
Alternator Side
