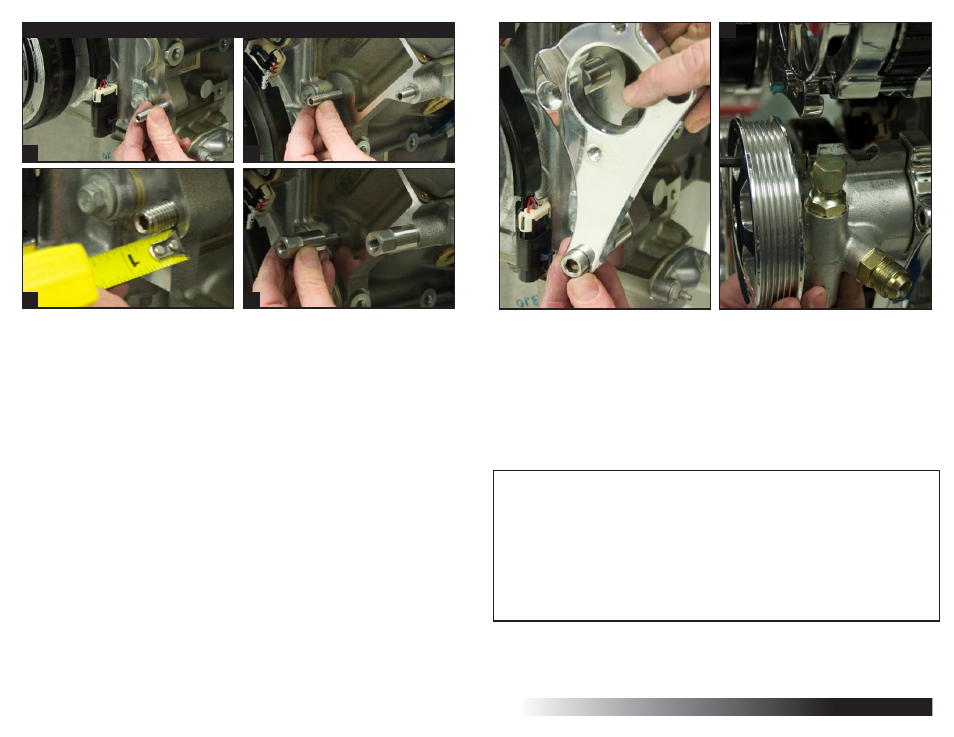

Figure 10: Install Power Steering Stand-offs
Apply LocTite to the threads of one end of the three 10mm-1.5 x 25mm studs.
[A] Thread the three studs into the block as shown.
[B] Installed height should not exceed 1/2” from block.
[C] Apply anti seize to the exposed threads of the studs, thread the three 1.425" stand-offs
onto each stud and tighten firmly.
FOR KITS WITHOUT POWER STEERING CONTINUE TO FIGURE 12
A
B
A
C
Figure 11: Install Power Steering Assembly
Apply anti seize to the threads of the three 10mm-1.5 x 20mm socket head cap screws.
[A] Install power steering bracket as shown with the three 10mm-1.5 x 20mm socket head
cap screws, tighten fasteners firmly.
Install a 5/16” split washer on each of the two 5/16-18 x 2-3/4” socket head cap screws
followed by anti-seize to the threads of each fastener.
[B] Attach power steering pump as shown, tighten fasteners firmly.
IMPORTANT
DO NOT START MOTOR until you have completely installed ALL power steering hoses, reservoir,
and added power steering fluid to the system. A bleeding procedure sheet is included with
this kit.
• Power steering fluid is the lubricant for the pump.
• Serious Damage will occur to power steering pumps if they are run dry.
• Pumps that have been run dry are not warrantable.
NOTE: Automatic Transmission Fluid (ATF) should never be used in place of a quality brand
name power steering fluid.
A B
