Billet Specialties Tru Trac Serpentine System - LS7 (Top Mount) - Manual (Page 6)

www.billetspecialties.com • Tech Line 708.588.0505 10 LSx Top Mount Tru Trac - 13455 / 13475 11

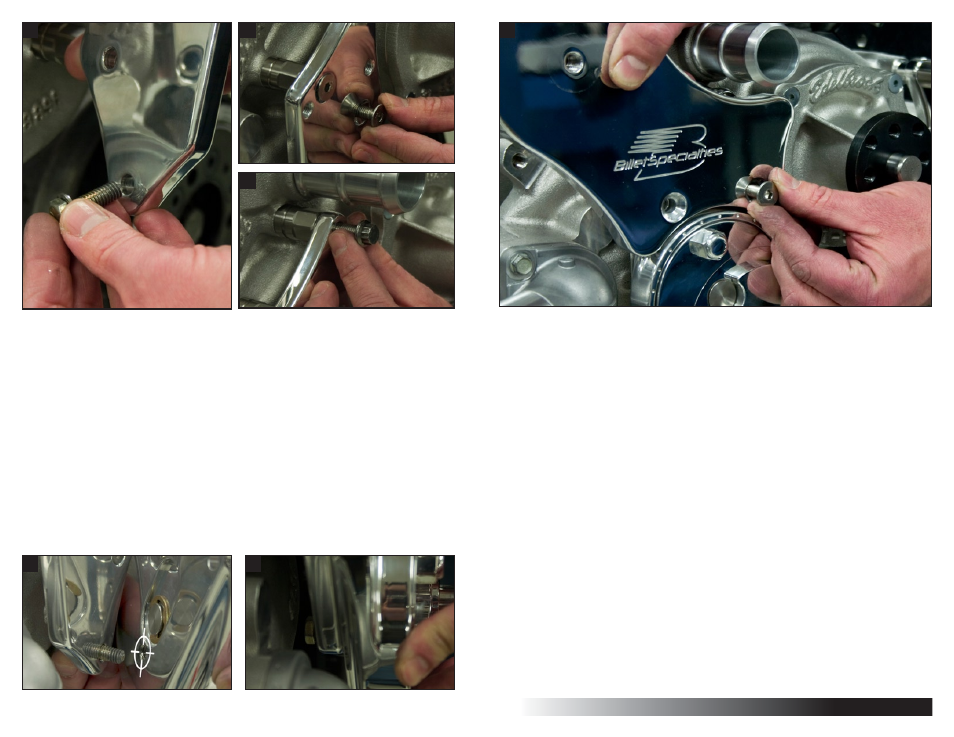

Figure 3: Install Tensioner & Bracket
Apply anti seize to the threads of the following:
(1) 8mm-1.25 x 25mm ARP 12pt. cap screw
(2) 8mm-1.25 x 25mm flat head cap screws
(1) 5/16-18 x 1” hex head bolt
[A] Thread the 5/16” hex head bolt and 5/16” flat washer through the back of the tensioner
bracket. Place the bracket with the bolt and washer hanging through it on the passenger
side of the water pump.
[B] Thread the two 8mm flat head cap screws through the bracket and into the bottom
standoffs.
[C] Finish by threading the 8mm ARP 12pt. cap screw through the top hole in the bracket
and into the top standoff. Tighten the three fasteners firmly.
[D] Align threaded hole in the back of the tensioner with the threads of the 5/16” hex head
bolt and washer sticking through bracket, finger tighten tensioner to bracket while aligning
the top tensioner holes with the bracket.
A
D D
B
C
Figure 4: Install Idler Bridge Bracket
Apply anti seize to the two 8mm-1.25 x 40mm flat head cap screws.
Place the bridge bracket on the passenger side and align the two bottom holes with the top
two holes on the tensioner.
[A] Thread the two fasteners through the bridge bracket, tensioner and into the tensioner
bracket and finger-tighten.
A
