2.2.3. Connecting Power to Development Board
Connect the power jack to the power connector of the Development Board for the Parani-ESD using
the DC power adapter or USB power cable that is included in the package.

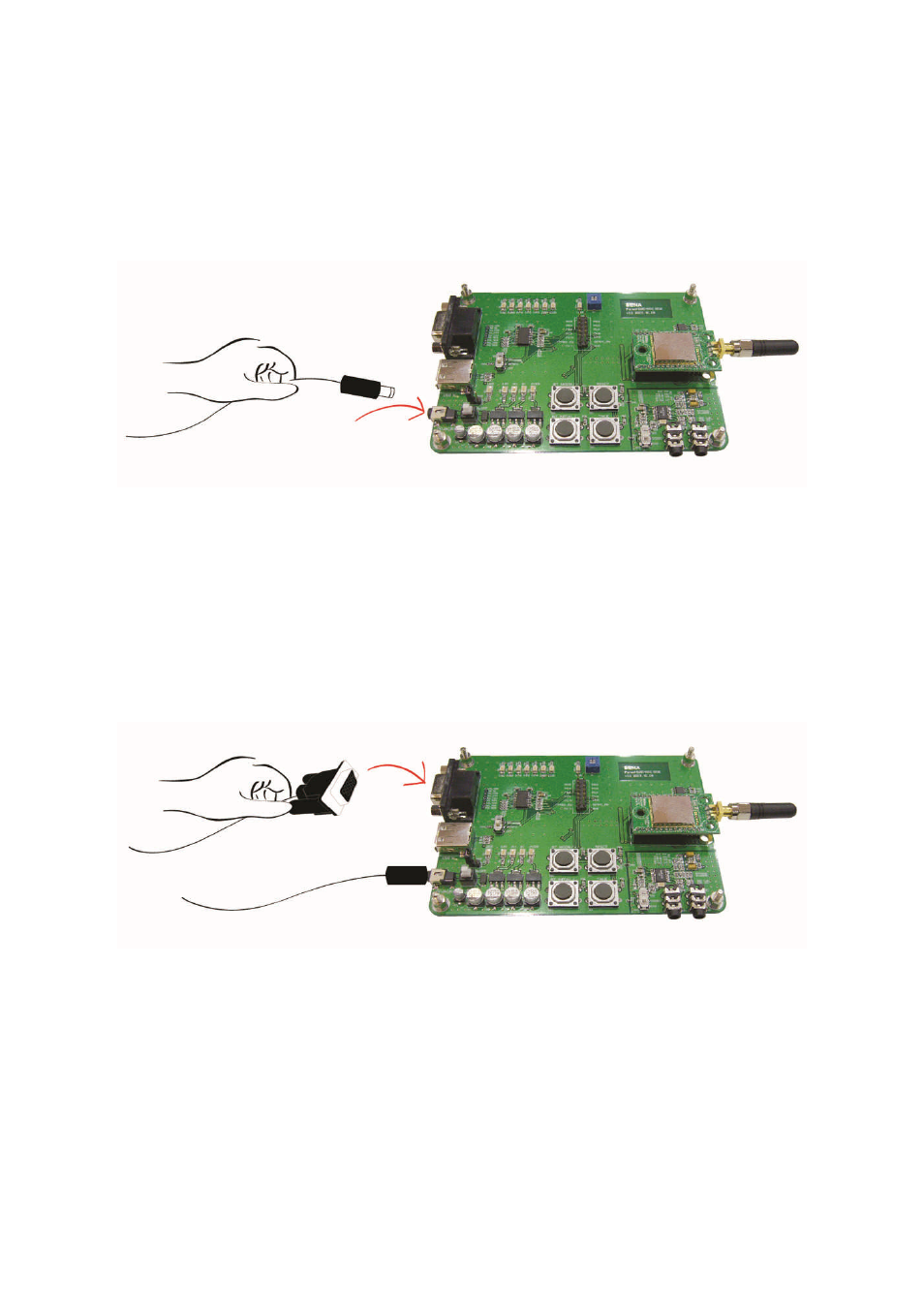

Figure Error! Style not defined.-4 Connecting Power to Development Board
2.2.4. Connecting a Device to Development Board
Connect the serial data cable between the Development Board and the serial device. If necessary,
supply power to the serial device attached to the Development Board.
Figure Error! Style not defined.-5 Connecting a Device to Development Board
