Important Components
ENGLISH 4
2. Important Components
1.
Tank lid / Filler basket with filter
11. Primer
2.
Formula tank
12.
Shoulder strap – quickcoupling
3. Formula
outlet
13.
Formula On-off tap
4.
Spark plug
14.
Spray tube
5.
Carburetor adjustment screws
15. Spray
nozzle
6. Muffler
16.
Dosage
sleeve
7. Starter
handle
17. Throttle
lever
8.
Air filter cover
18.
Throttle lock lever
9.
Fuel tank cap
19. Stop
switch
10. Choke
20. Tank
ventilation

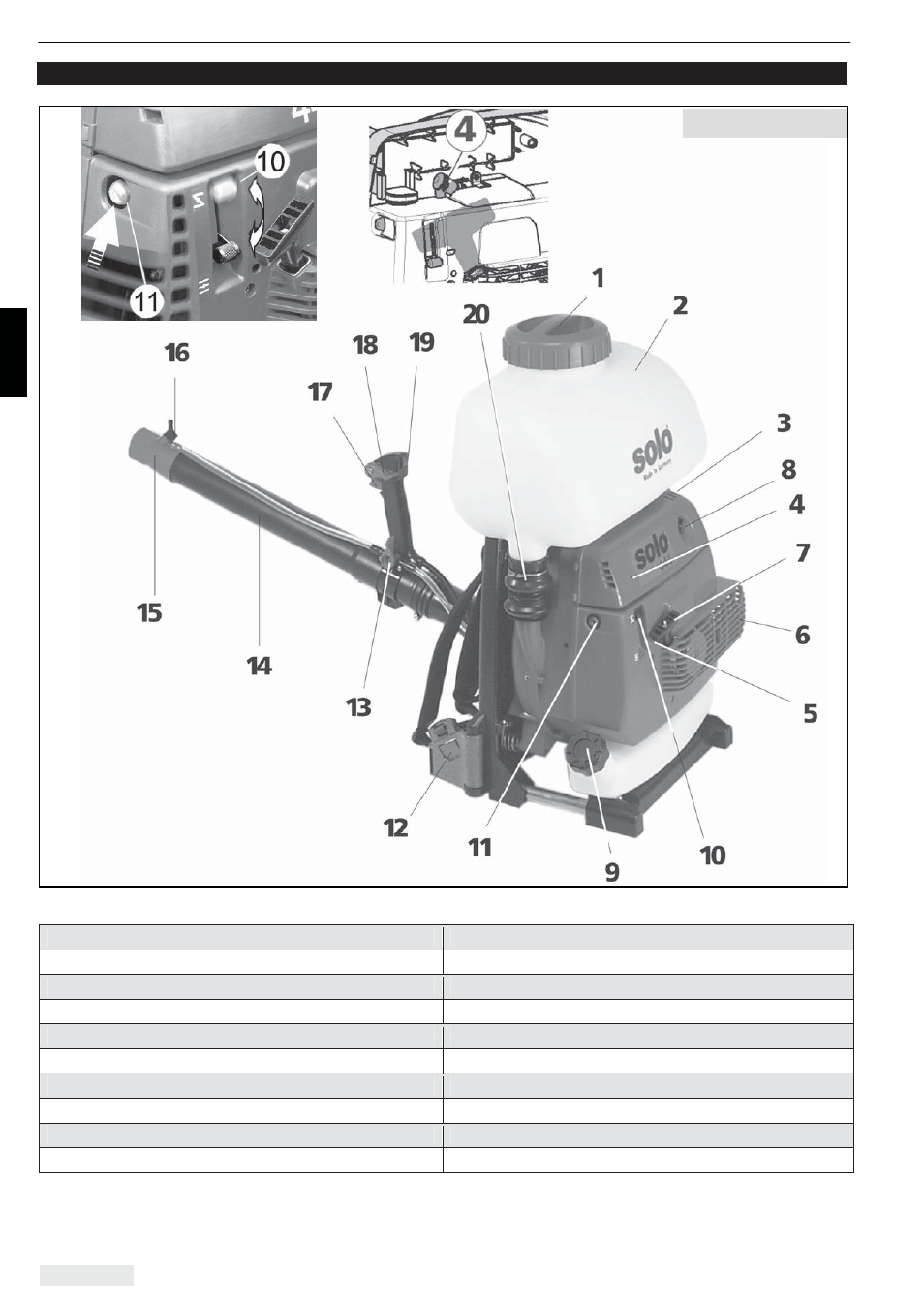

Fig. 1a, Type 444
