Status output relay – Ocean Optics USB-TC User Manual
Page 3
USB-TC Instructions
172-00000-100-01-201210
3
2. Connect the other end of the wires to a 12 VDC power source, being careful to maintain
correct polarity.
Status Output Relay
An isolated dry-contact relay inside the USB-TC is provided to indicate when the unit has reached the

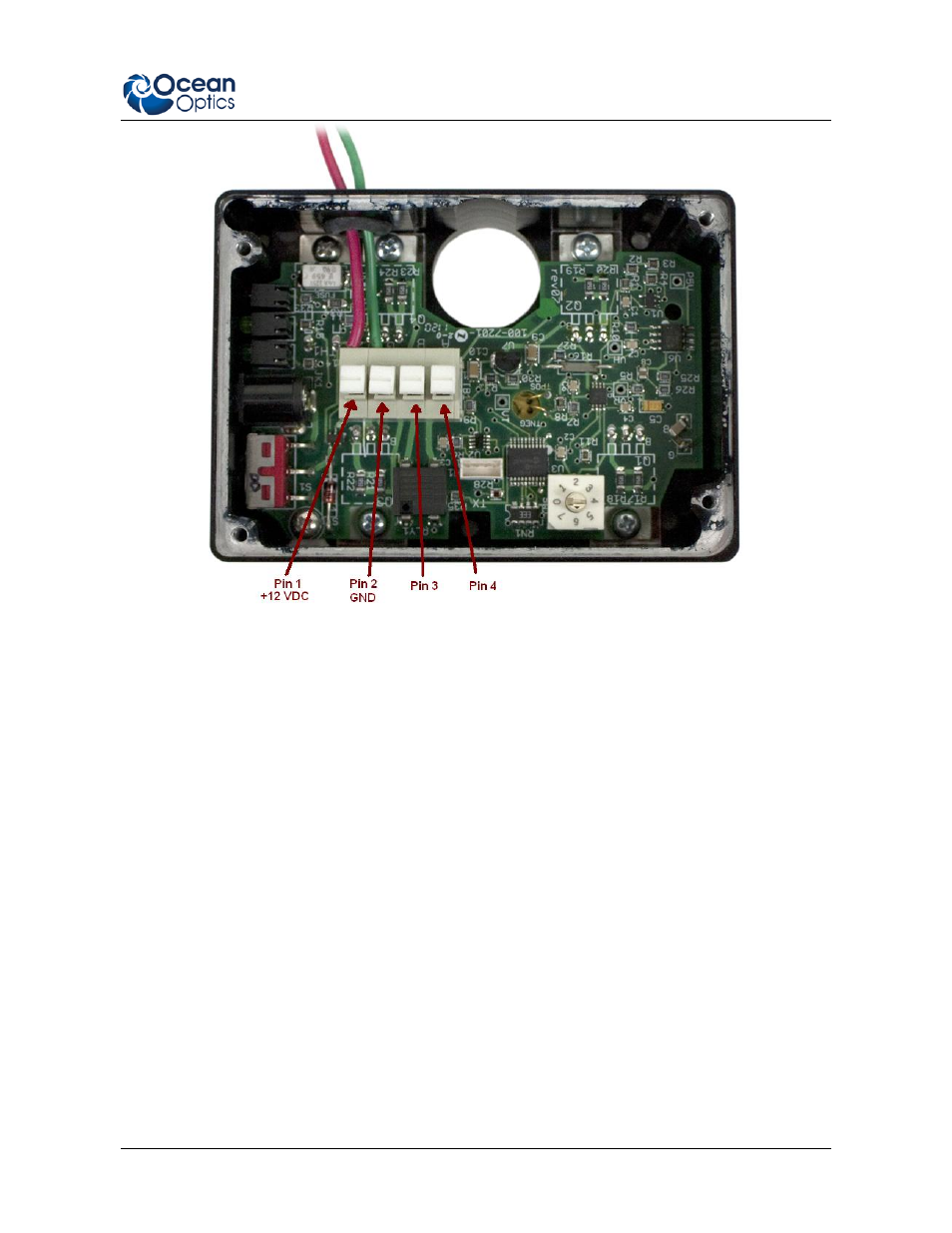

setpoint temperature. Connect two wires to Pins 3 and 4 as shown below to use this feature. Circuit
continuity (contacts closed) indicates stable temperature.
