Chapter 1
Setup and Operation
Overview
The SpectroClip probe is designed to measure thin materials such as leaves and other thin samples in the
field. Transmission, reflection and absorbance can be measured on materials with a maximum thickness
of 5 mm. SpectroClip features specially designed integrating spheres that function as collection probes
and can be connected to any Ocean Optics spectrometer to acquire data. The top integrating sphere also
includes an input port for a fiber-coupled light source to illuminate your sample. SpectroClip's integrating
spheres capture diffuse reflected or transmitted light more efficiently than lens-based collection optics.

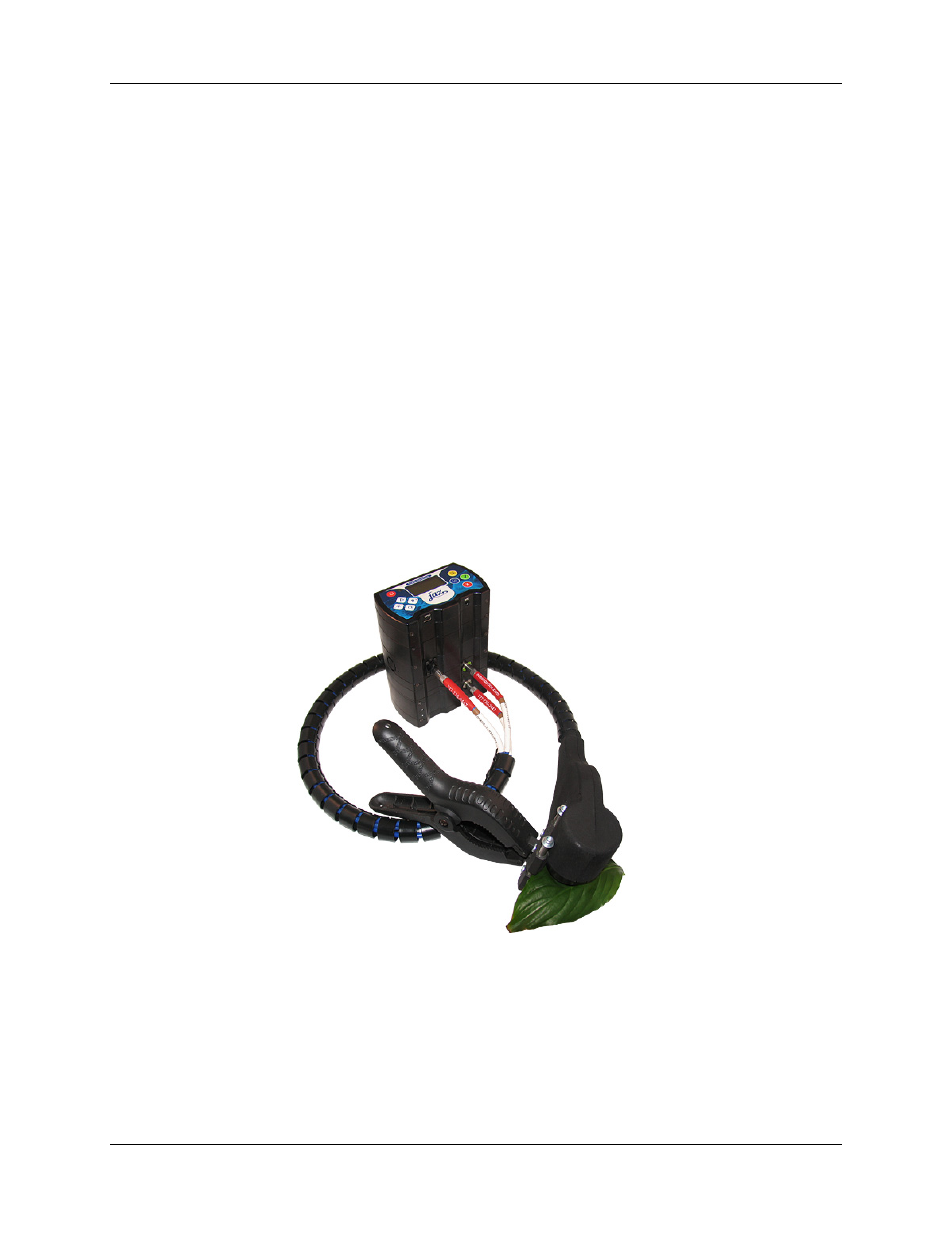

Jaz-SpectroClip-TR
SpectroClip can support wavelength ranges from 200-2500 nm -- depending on which light source, fiber
(UV-VIS or VIS-NIR) or spectrometer configuration you use. The active illuminated area is 5 mm.
