HR4-BREAKOUT Installation and Operation Instructions

Note

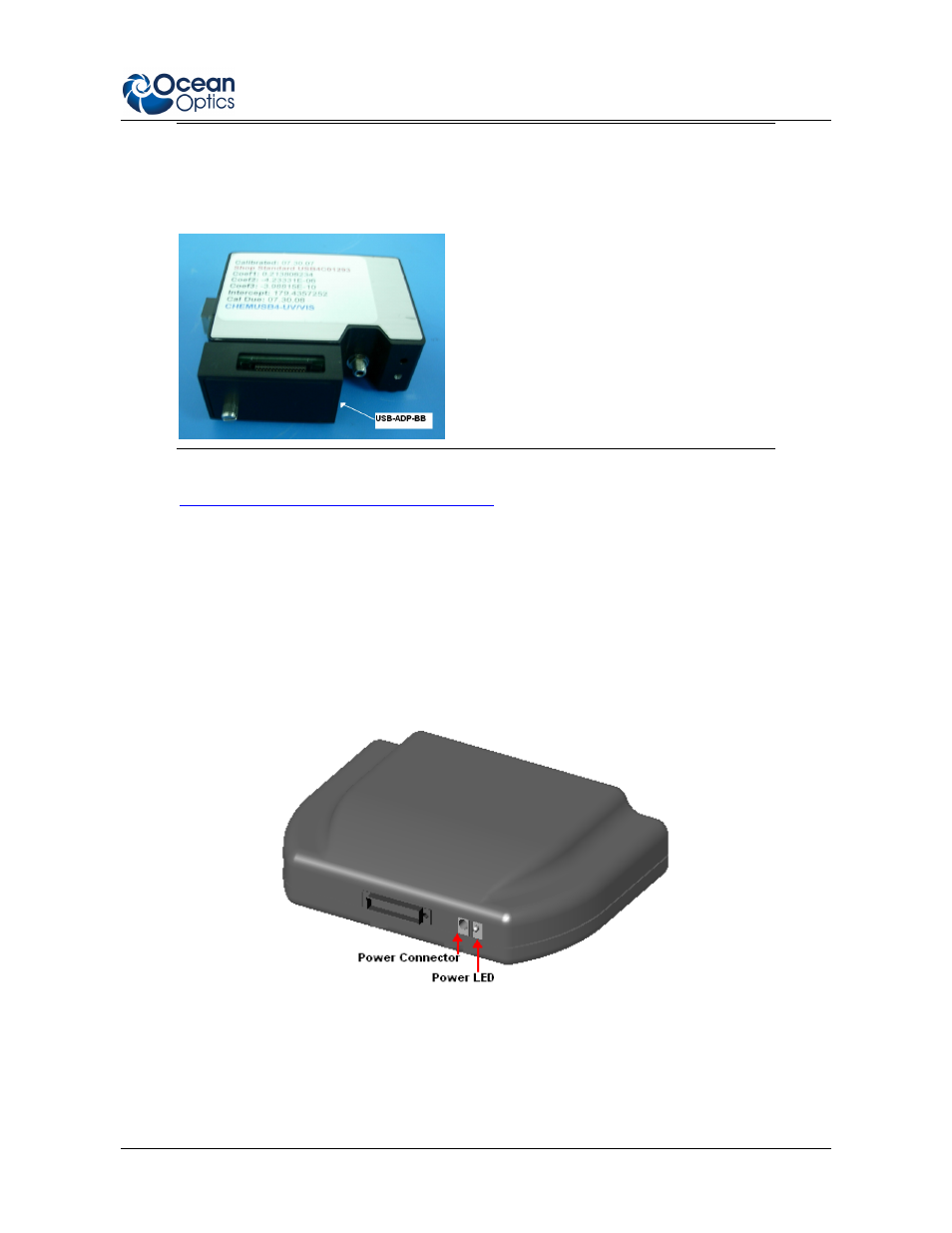

If you are connecting the Breakout Box to the USB4000 Spectrometer, you must first
install the USB-ADP-BB adapter on the spectrometer as shown:

3. Connect the desired device to the appropriate pins on the Breakout Box’s circuit board (see

Circuit Board Connectors Pinout Information

Supplying Power to the Breakout Box

The Breakout Box can be powered by

• The spectrometer via its USB port, or
• A separate 5V power supply (ADC-USB-SER). This power supply and serial cable must be

purchased separately. If you are wiring custom circuitry on the Breakout Box, you must use
the 5V power supply.
