USB-ISS-UV/VIS Installation and Operation Instructions
175-00000-000-01-201208 3
3. Insert a cuvette into the cuvette holder.
4. Tighten the ball plunger screws until the cuvette is stationary in the cuvette holder. Do not
over-tighten.
5. Remove the cuvette from the cuvette holder.
Connecting to the Spectrometer
►
Procedure
1. Remove the power from the spectrometer by disconnecting it from the PC or detaching the
USB cable.
2. Attach the SMA Collimator to the SMA 905 connector of the spectrometer. This should be
connected so that the outer threaded half of the collimator is pointing towards the
spectrometer. The USB-ISS-UV/VIS will not connect correctly if this piece is not properly

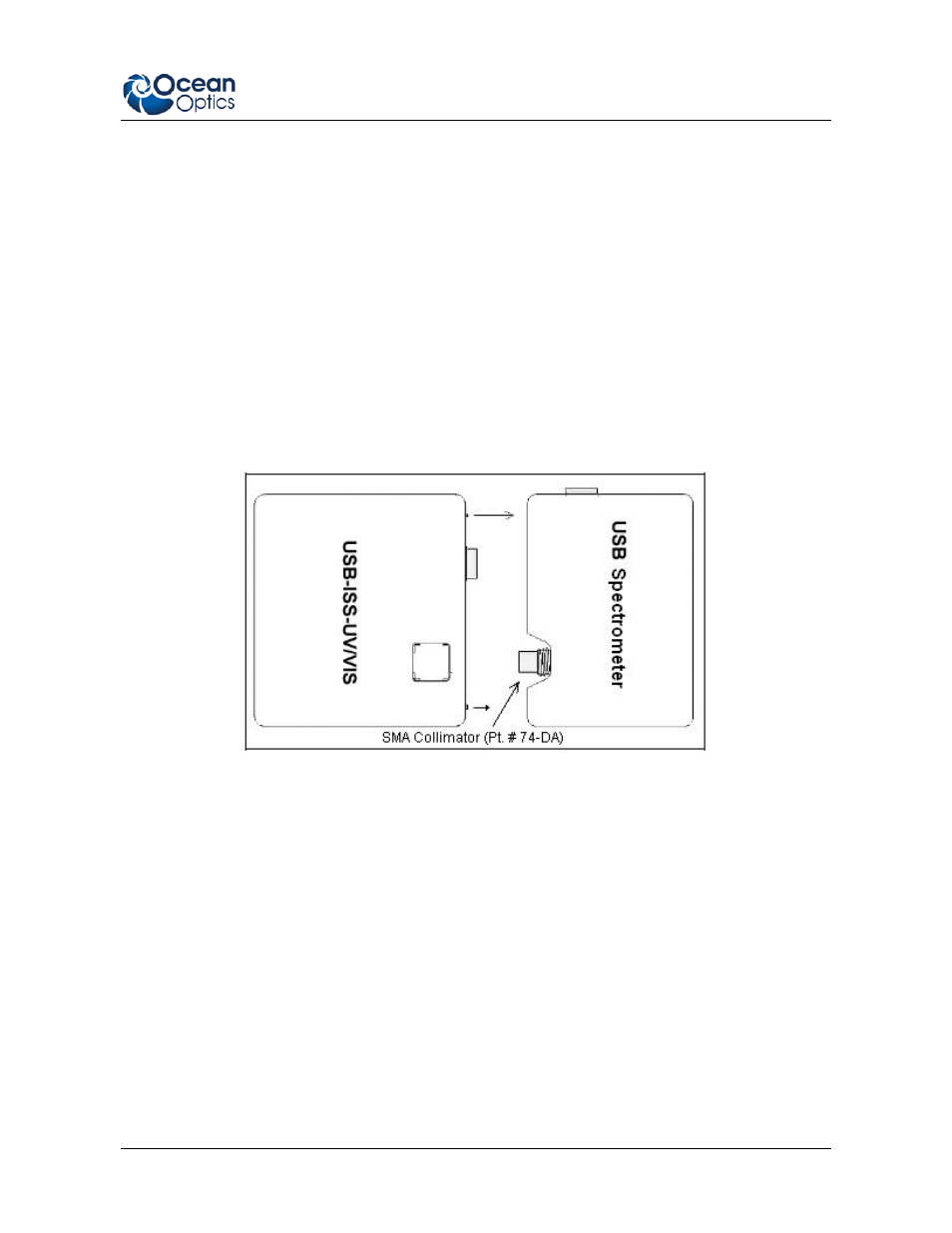

oriented (see diagram below).
3. Screw the USB-ISS-UV/VIS to the front of the spectrometer using a standard flathead
screwdriver. The connection screws are accessed from the front of the USB-ISS-UV/VIS (the
white lined holes on the front of the unit).
4. Connect the power supply to a standard power outlet, and then connect the 5-volt power
connector to the USB-ISS-UV/VIS. This will activate the unit, and the fan should begin to
spin.
5. Connect the USB cable to the spectrometer and to the PC.
