IQ P.I.P.–SMT
2 Facilities
A. Mounting Screws
The IQ–P.I.P.–SMT is secured to the
back panel of the amplifier with two
phillips-head screws and star-tooth
lock washers. The lock washers are
required for proper ground connec-
tion.
B. Balanced Audio Inputs
A 3-pin female XLR connector is pro-
vided for balanced audio input to
each channel of the amplifier. Pin 1 is
chassis (gnd); pin 2 is not inverted
(+); and pin 3 is inverted (–).
Do not
use the Ch.2 input if the amplifier is
configured in either Bridge or Paral-
lel-Mono mode.

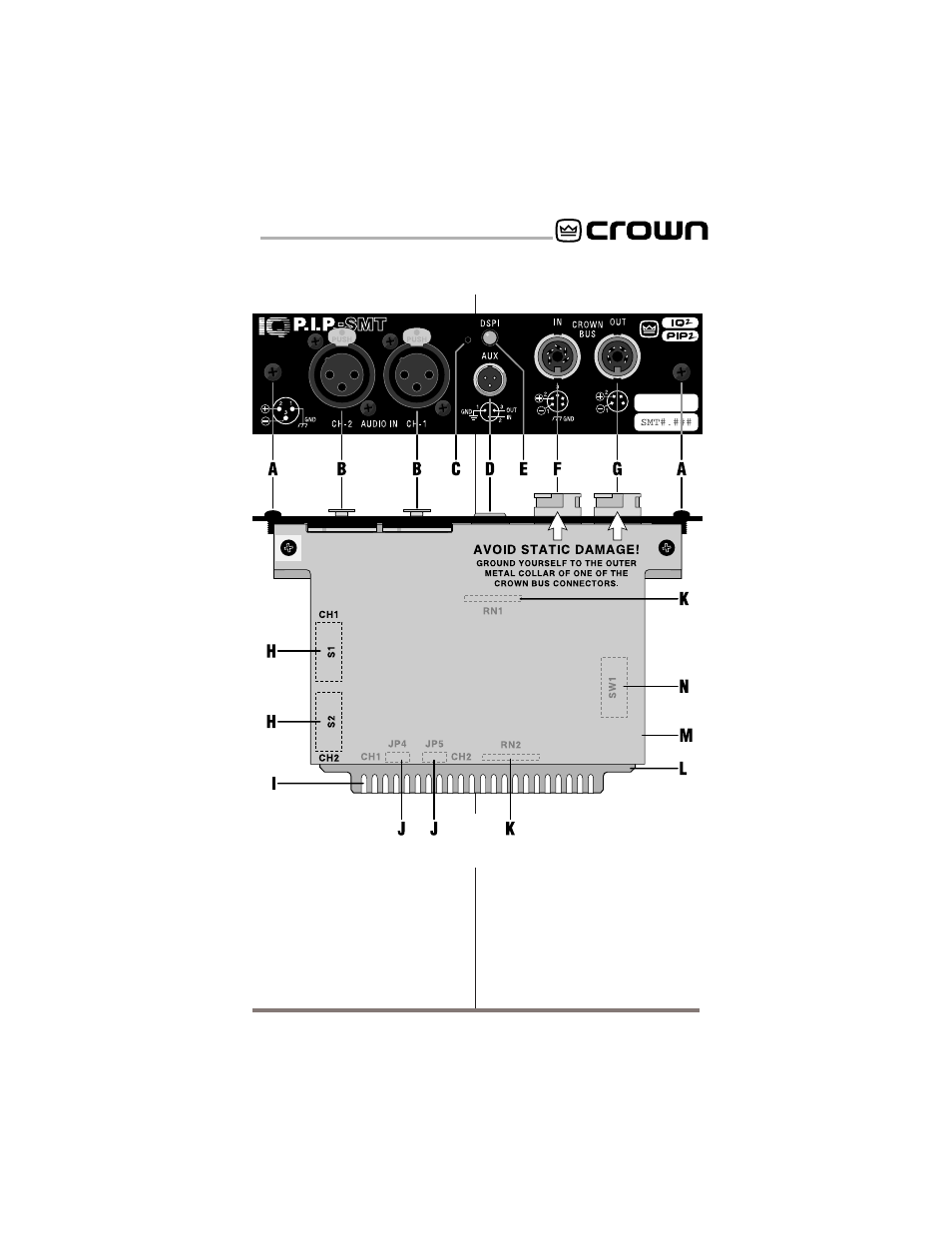

Front View
