IQ P.I.P.–SMT

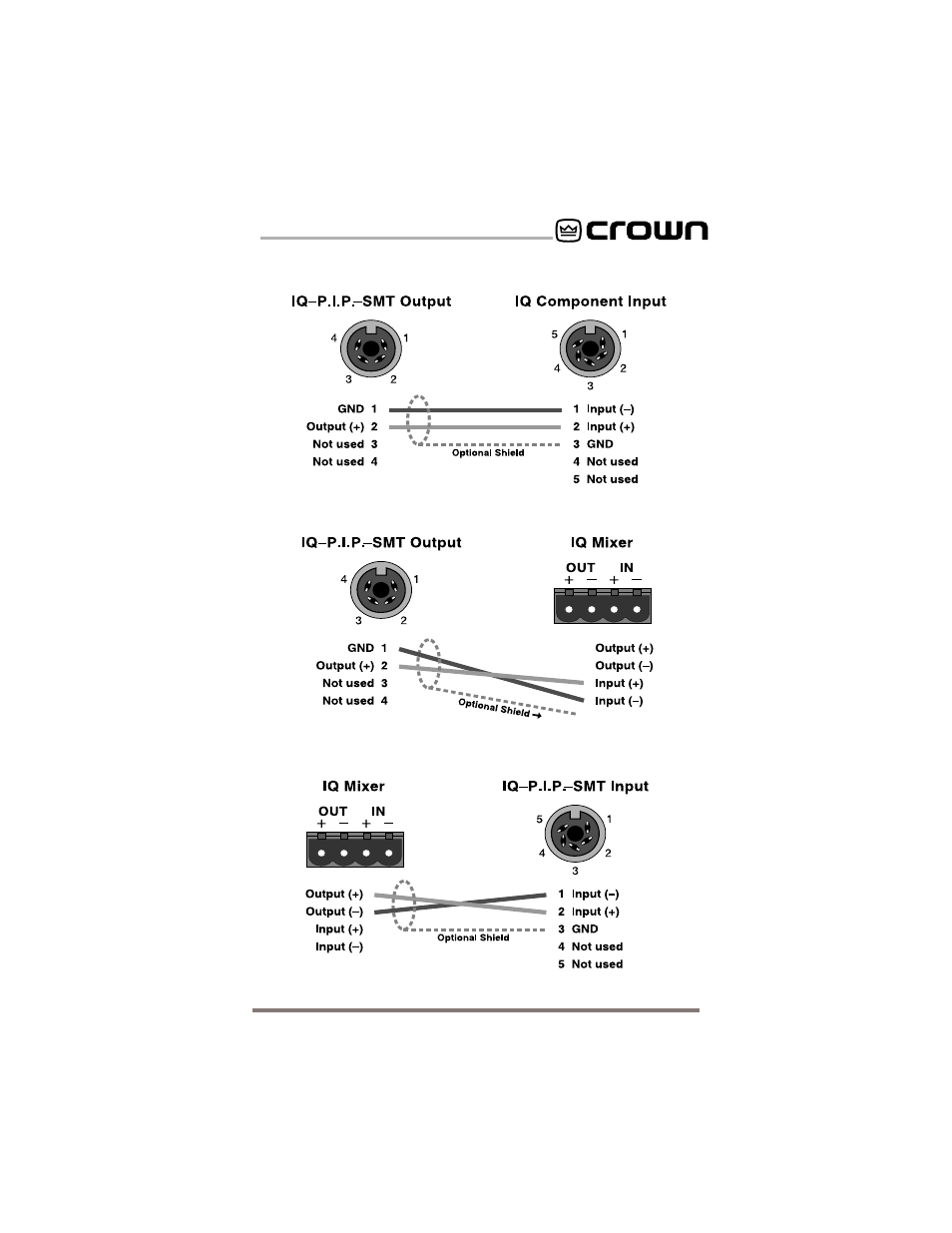

Figure 4.9 IQ–P.I.P.–SMT Output Connection
to Another IQ Component with DIN Connectors
Figure 4.11 An IQ Component with Screw Terminal
Plug Connected to the IQ–P.I.P.–SMT Input
Figure 4.10 IQ–P.I.P.–SMT Output Connectionto an
IQ Component with a Screw Terminal Plug Connector
