4.3.2 Operation Examples
Operation Example 1
How to select Preset 5 using the LCD Control Screen:
1. After power-up, the Preset Screen appears.
2. Press Next until you see Preset 5.
3. Within 2 seconds, press Menu/Select.
Operation Example 2
How to select the Digital/Surround Input using the LCD Control
Screen:
1. After power-up, press and hold Menu/Select until the Input
Board Menu appears.
2. Press Next until the arrow is by Digital/Surround.
3. Within 2 seconds, press Menu/Select. Digital/Surround will be
highlighted, showing that it is selected.
Operation Example 3
How to read the unit’s addresses:
1. After power-up, press and hold Menu/Select until the Address
screen appears.
4.3.3 Menu Tree
As a handy reference, Figure 4.4 shows the menu structure of the
LCD control screen.

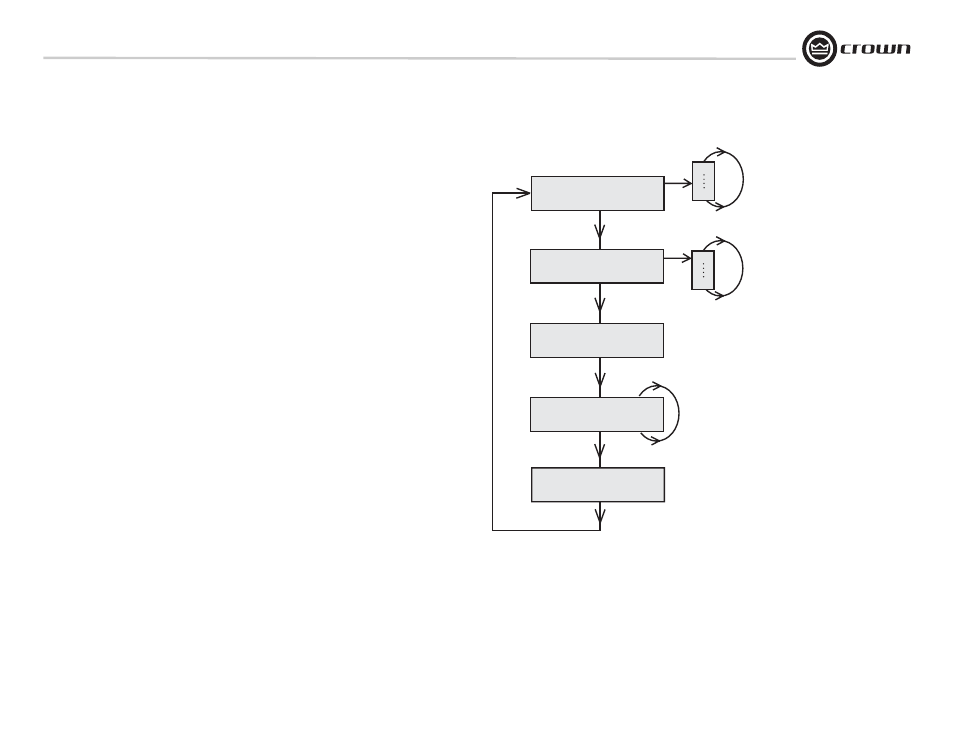

Figure 4.4 Menu Tree of the DBC Network Bridge LCD Control Screen
4 Operation
PRESET SCREEN
SCENE SCREEN
ADDRESS SCREEN
INPUT BOARD MENU
FIRMWARE INFO SCREEN
Hold Menu/Select
Hold Menu/Select
Hold Menu/Select
Hold Menu/Select
Hold Menu/Select
When desired Scene # appears,
press Menu/Select to select it.
Next
Prev
Next
Prev
1
32
Next
Prev
1
32
MENU TREE
When desired Preset # appears,
press Menu/Select to select it.
When arrow is by the desired Input,
press Menu/Select to select it.
