4.3.4 Fuses and Circuit Breakers
The power supplies of the Macro-Tech

600 and 1200

are protected by fuses. The power supplies of the
Macro-Tech

2400 are protected by circuit breakers.

With rated loads and output levels, the fuses (or circuit
breakers) should only shut down the amplifier in the
rare instance of a catastrophic failure. Other protection
systems like ODEP keep the amplifier operational un-
der most other severe conditions. The fuses (or circuit
breakers) can also shut down the amplifier in cases
where extremely low-impedance loads and high output
levels result in current draw that exceeds their rating.
Again, this should only be possible when operating
outside rated conditions, such as when the amplifier is
used to drive a 1-ohm load in Stereo mode, or when a
signal overloads the input and is clipped severely.

All 120 VAC, 60 Hz units and all Macro-Tech

2400s have

a separate fuse for the low-voltage power supply and
cooling fan. All units have separate fuses or breakers
for the high-voltage power supplies.

Macro-Tech amplifiers do not blow their fuses or trip
their breakers unless something is wrong. In the rare
event that an internal fuse blows, please refer the unit
to a qualified technician. If a breaker in a Macro-Tech
2400 trips, try to identify and correct the problem be-
fore resetting the breakers with the back panel Reset
switches
. If the problem persists, refer the unit to a
qualified technician.

4.4 Controls

The Enable switch is located on the front panel so you
can easily turn the amplifier on and off. If you ever need
to make any wiring or installation changes, don’t forget
to disconnect the power cord. The six steps listed next
should be followed whenever you turn on the amplifier:

1. Turn down the level of your audio source. For

example, set your master mixer’s volume to –

.

2. Turn down the level controls of the amplifier (if they

are not already down).

3. Turn on the Enable switch. The Enable indicator

beside the switch should glow. During the four
second mute delay which immediately follows, the
Signal/IOC indicators will flash unpredictably and
the ODEP LEDs will stay off. After the mute delay,
the ODEP indicators should come on with full
brilliance and the Signal/IOC indicators should
function normally (remain off if no signal is present;
flash if a signal is present). Remember, the Channel
2 Signal/IOC indicator will remain on if the amplifier
is in Parallel-Mono mode.

4. After the mute delay, turn up the level of your audio

source to the maximum desired level.

5. Turn up the level controls of the amplifier until the

maximum desired sound level is achieved.

6. Turn down the level of your audio source to its

normal range.

For ease of use, the level controls are also located on
the front panel. Each control has 31 detents for accu-
rate repeatability. To prevent tampering with these con-
trols, the Level Control Security Kit is available (see
Section 8.3).

Note: In Bridge-Mono and Parallel-Mono

modes, turn down the Channel 2 level control and only
use the Channel 1 control.

The input sensitivity switch is located inside the back
panel of the amplifier. It is factory-set to 0.775 volts for
standard 1-kHz power into 8 ohms. It can be switched
either to 1.4 volts for standard 1-kHz power output, or
to a fixed voltage gain of 26 dB. When set to 26 dB
gain, the input sensitivity is 2.2 volts for the Macro-Tech
600, 2.6 volts for the Macro-Tech

1200 and 3.1 volts for

the Macro-Tech

2400.

How to change the input sensitivity:

1. Turn off the amplifier and disconnect its power cord

from the AC mains power receptacle.

2. Remove the PIP module (two screws).

3. Locate the sensitivity switch access hole inside the

chassis opening as shown in Figure 4.3. It is
located just above the phone jack inputs.

4. Set the switch to the desired position noted on the

label for the access hole. The position toward the
front panel sets the sensitivity to 1.4 volts for

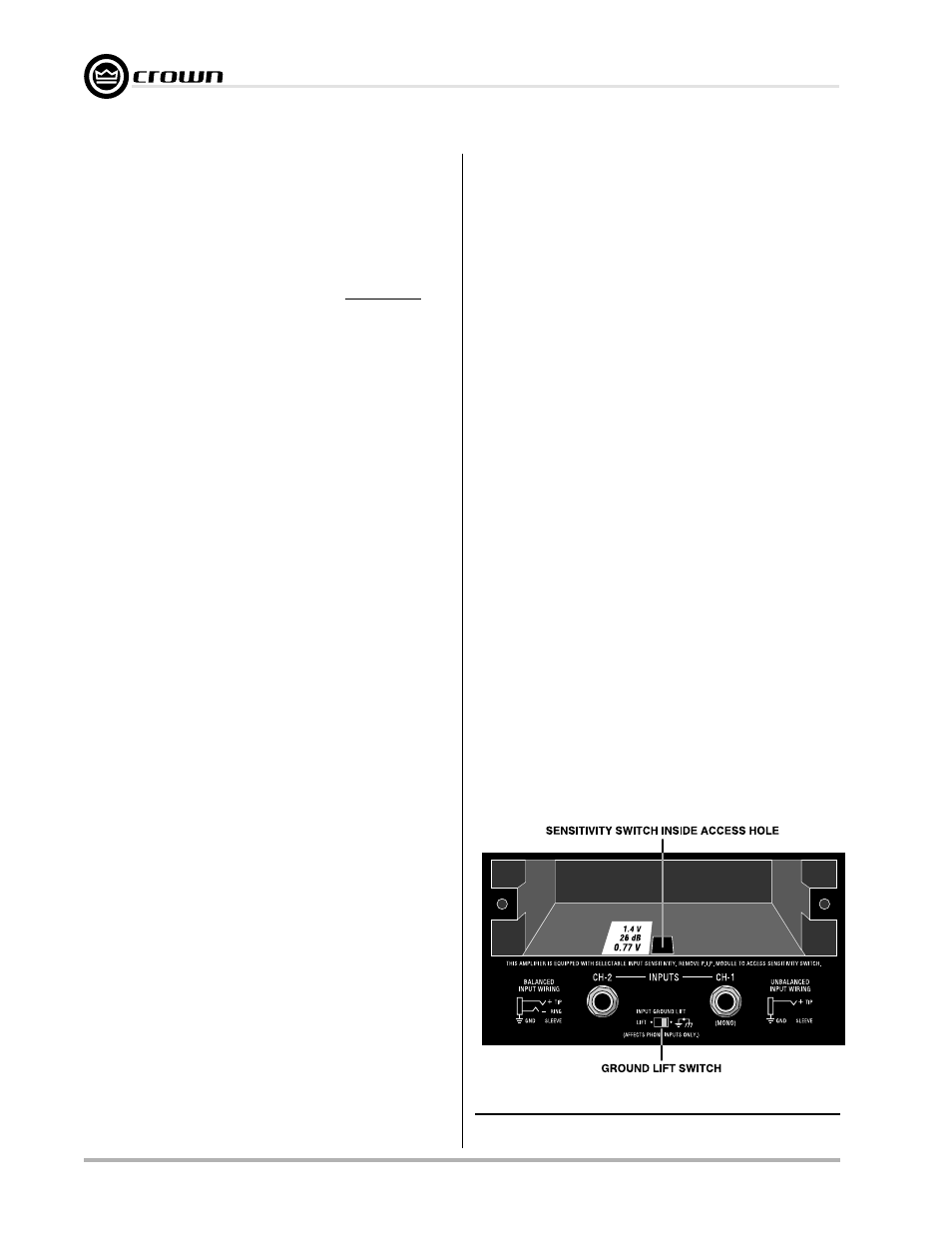

Fig. 4.3 Input Sensitivity and Ground Lift Switches

*Factory setting for international versions is 1.4 V.
