4 Operation
4.3 Back Panel Controls
and
Connectors
F. Balanced Barrier Block Inputs
One set of screw-terminal Barrier Block
input connectors are provided for each
channel.
G. Dual/Mono Switch
Two-position switch, one per channel pair,
sets the channel pair for either Dual or
Bridge-Mono operation.
H. Level Controls
Rotary level controls, one per channel.
I. 5-Way Binding Post Output Jacks
One pair per channel; accept banana plugs,
spade lugs or bare wire. (European models
do not accept banana plugs.
J. Power Cord

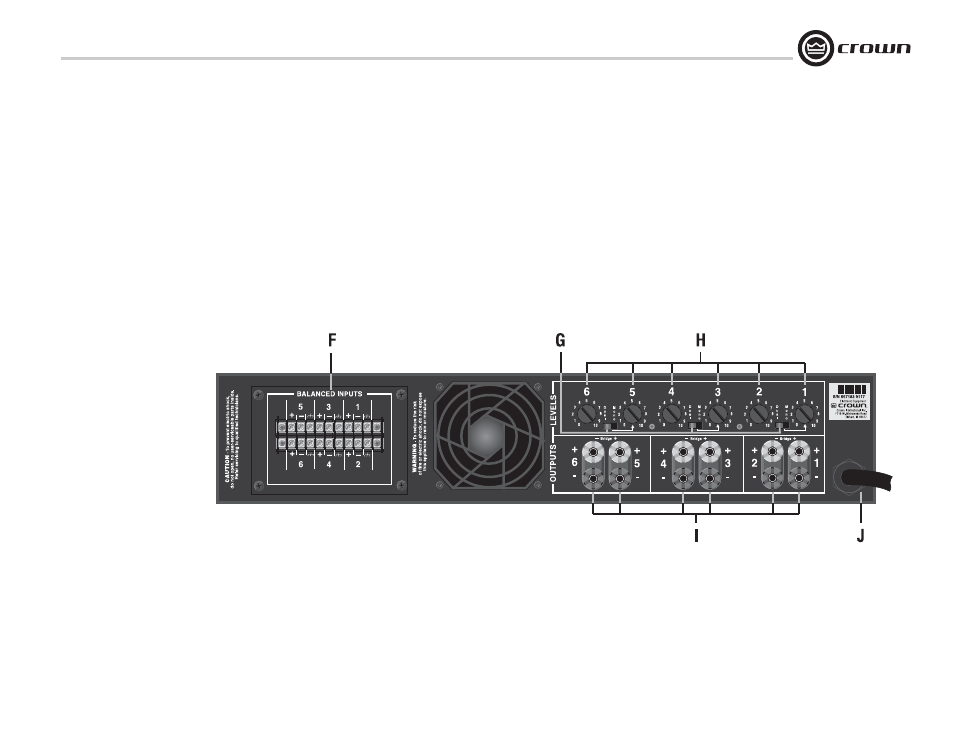

Figure 4.2 Back Panel Controls
and Connectors
