CP660 Power Amplifi er
Operation Manual
page 10
4 Operation
4.1 Front Panel Controls
and
Indicators
A. Temp Indicator
Red LED illuminates when the temperature
of the amplifi er gets too high and the fan is
in full-speed operation mode.
B. Clip Indicators
Yellow LEDs illuminate when the channel’s
output signal is being overdriven.
C. Power Switch
Amplifi er is on when the switch is in the On
(right) position.
D. Power Indicator
Green LED indicates amplifi er has been
turned on and AC power is available.
E. Signal Indicators
Green LEDs illuminate to indicate the pres-
ence of signal at the corresponding chan-
nel’s output.

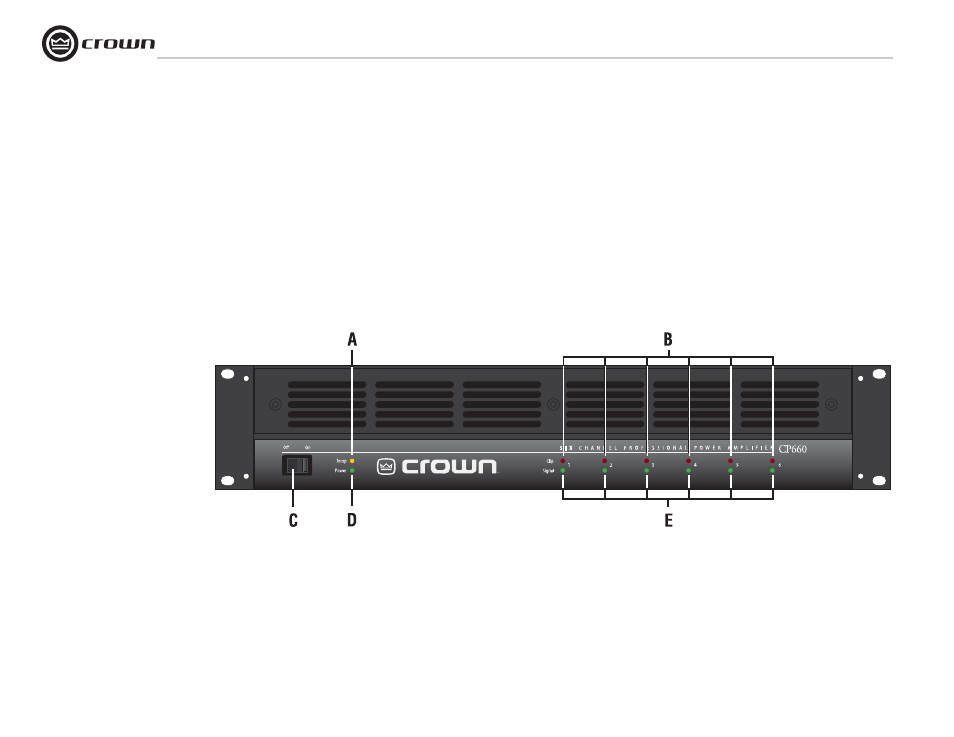

Figure 4.1 Front Panel Controls
and Indicators
