Remember: Crown is not liable for
any damage resulting from over-
driving other components in your
sound system.
Figure 3.5 shows how to wire a bal-
anced and unbalanced source or
daisy-chain output to the barrier
block connectors.
Important: If the amplifier is used in
either Bridged-Mono or Parallel-
Mono mode, you must turn the Ch. 2
amplifier level control off (fully coun-
terclockwise). The input and level
control of Ch. 2 are not defeated in
mono mode so any signal applied to
Ch. 2 will beat against the signal in
Ch. 1.
Refer to the amplifier Reference
Manual for more information about
Bridged-Mono or Parallel-Mono
modes of operation.

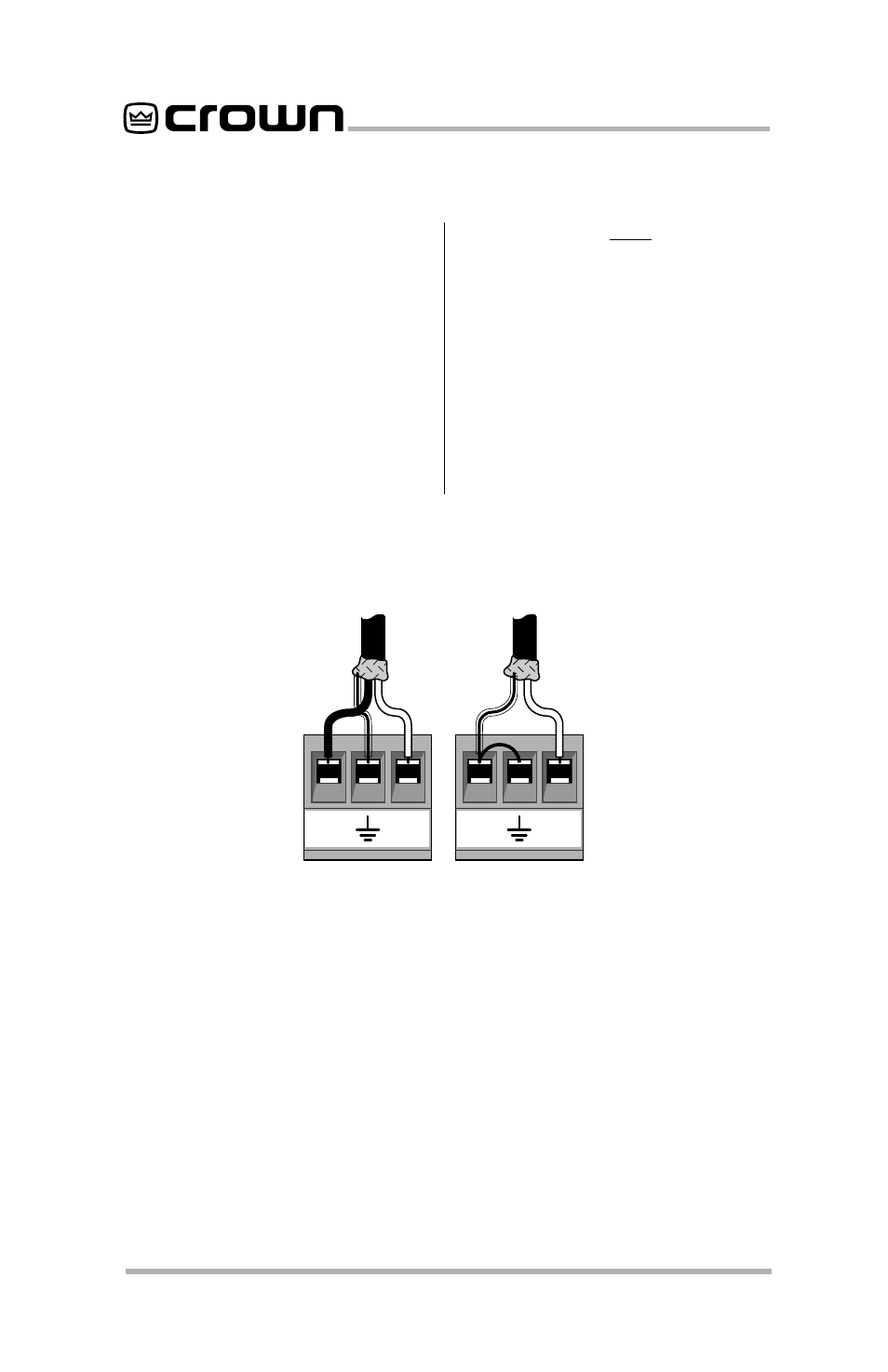

Fig. 3.5 Audio Wiring
– + – +
BALANCED
SOURCE
UNBALANCED
SOURCE
